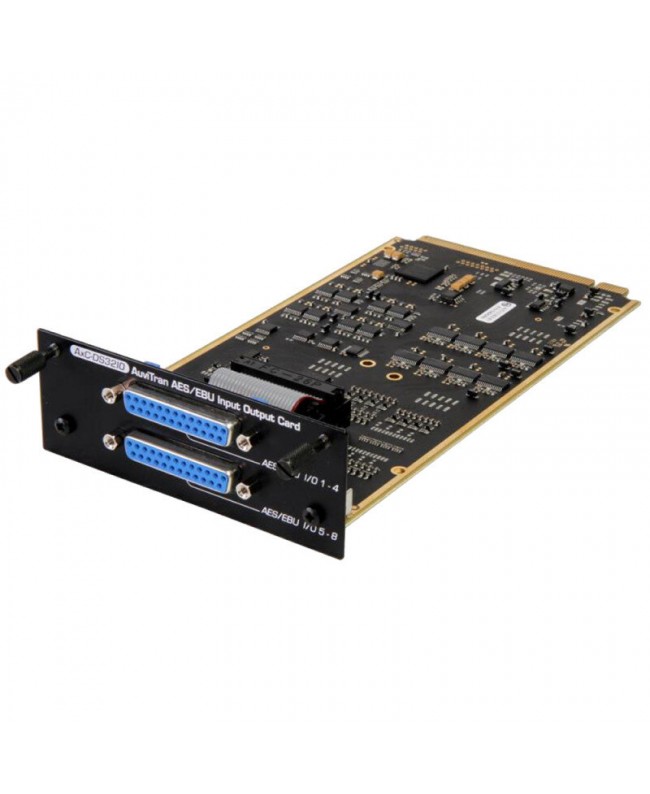

Agora AxC-DS32io

€2,914.00
€2,169.00 -26%
Tax included
Lowest price within the last 30 days: €2,169.00

AES3 card with 16 IN with SRC and 16 OUT on 2 x DB-25

Out of Stock

Free shipping

Compare

wishlist

Agora AxC-DS32io



AES3 card with 16 IN equipped with SRC and 16 OUT on 2 x DB-25. It must be inserted in the slot available on the rear panel of the Agora H1 to build the audio bridge. The Ax. C-DS32IO provides a high number of AES/EBU digital input and output interface for the Auvi. Tran Audio Tool. Box platform.

Combined with other Auvi. Tran Audio Tool. Box cards, the Ax. C-DS32IO card opens up interesting possibilities for professional audio systems.

Up to 8 stereo AES/EBU digital inputs and 8 stereo AES/EBU digital outputs on two D-Sub 25-pin connectors (4 stereo AES/EBU digital inputs and 4 stereo AES/EBU digital outputs on each D-Sub Sub )

  • Ax. C-DS32IO applications
  • Applications:
  • Recording interface for DA W (Digital Audio Workstation, such as Pro. Tools or equivalent)
  • Live concerts, live broadcast studios and OB Vans
  • Main features
  • Clock synchronization on each AES input
  • High performance sample rate converter available on each input (can be turned on/off individually) to solve multiple input sample rate and sync issues
  • Dedicated control page for monitoring and controlling all card parameters
  • Remote management with AVS-Monitor software
  • Number of inputs: 16 stereo AES/EBU digital inputs routed through the AuviTran Audio ToolBox backplane from the other cards
  • Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
  • Sampling resolution: 24 bits
  • Input impedance: 110 ohm
  • Input specification: AES balanced
  • Clock synchro sources: All AES Inputs
  • SRC (Sample Rate Converter): Asynchronous SRC available on each input (individually ON/OFF)
  • SRC specifications: -140 dB THD+N / frequency range 8 kHz - 192 kHz
  • Number of outputs: 16 AES / EBU stereo digital outputs routed through the AuviTran Audio ToolBox backplane from the other cards
  • Size: 200 x 100 x 40 mm‚ AuviTran Audio ToolBox platform cards format
  • Power supply: +12 V / +3.3 V Through AuviTran Audio ToolBox backplane
  • Storage: temp / humidity: - 5 to 70 °C / 0 to 95% (non-condensing)
  • Operating: temp / humidity: 0 to 50 °C / 5% to 90% (non-condensing)
  • Connectors: 2 x female DB25 connectors (4 stereo AES/EBU inputs and 4 stereo AES/EBU outputs on each DB25)
  • Audio ToolBox platform: AxC-DS32IO is one the cards for the AuviTran Audio ToolBox platform
  • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor an EtherSound network and provides enhanced control pages to manage the AxC-DS32IO card specific parameters.
  • OS supported: Windows 10 / 8 / 7 for 32 or 64 bit versions

AGO-AXC-DS32IO
