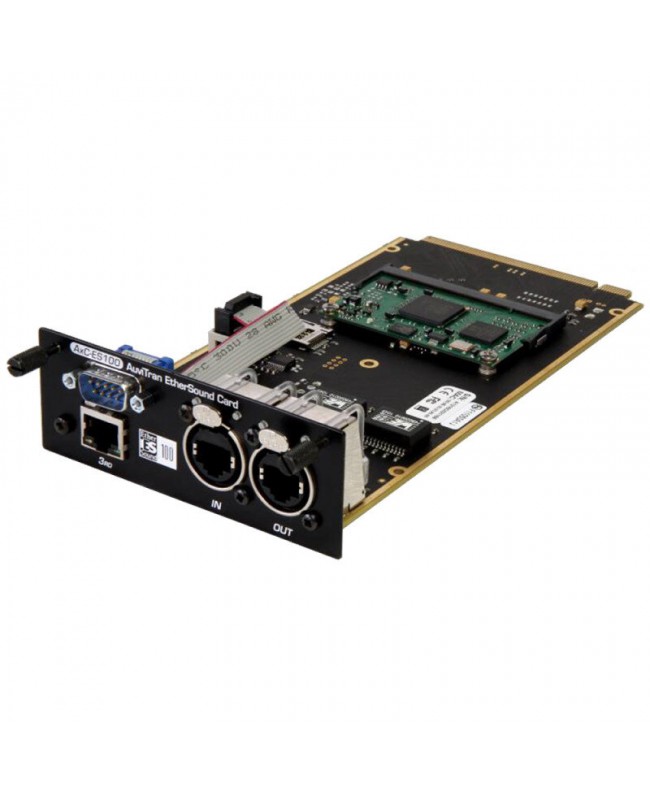

Agora AxC-ES100

Ethersound card with 64 IN and 64 OUT on 2 ether. CON with remote control on RJ45 and RS232. It must be inserted into the slot available on the rear panel of the Agora H1 to build the right audio bridge.

Just like every Ax. C card within the Audio Tool. Box range, the Ax. C-ES100 can also be used in the AVBx3 or AVBx7 platforms. Utilizing a slot of either Tool. Box, the Ax. C-ES100 allows you to bring both Ether. Sound and ASIO interfaces into your network setup.

Coupled with the Ax. C-AX4M microphone board and the Ax. C-AX4O analog output board, the Ax. C-ES100 tunneling system allows you to set and monitor all Tool. Box parameters, such as microphone gains, using the AVS-Monitor interface or a Yamaha mixer HA remote control /li and gt;

• Applications
• In combination with other Auvi. Tran Audio Tool. Box cards, the Ax. C-ES100 card opens up interesting possibilities for professional audio systems
• Suitable for all PA, live audio applications and adapted to Yamaha consoles
• Main features
• Using only one Audio Tool. Box slot, the Ax. C-ES100 can be used with AVBx3 or AVBx7 platforms
• 64 Inputs and 64 outputs
• ASIO through the third port (up to 64 channels in and 64 channels out)
• One RS232 port compatible with the Yamaha HA remote control
• Remote management with AVS-Monitor software
• Two ether. CON connectors allowing 64 channels to be extracted and 64 channels inserted into the ES100 network
