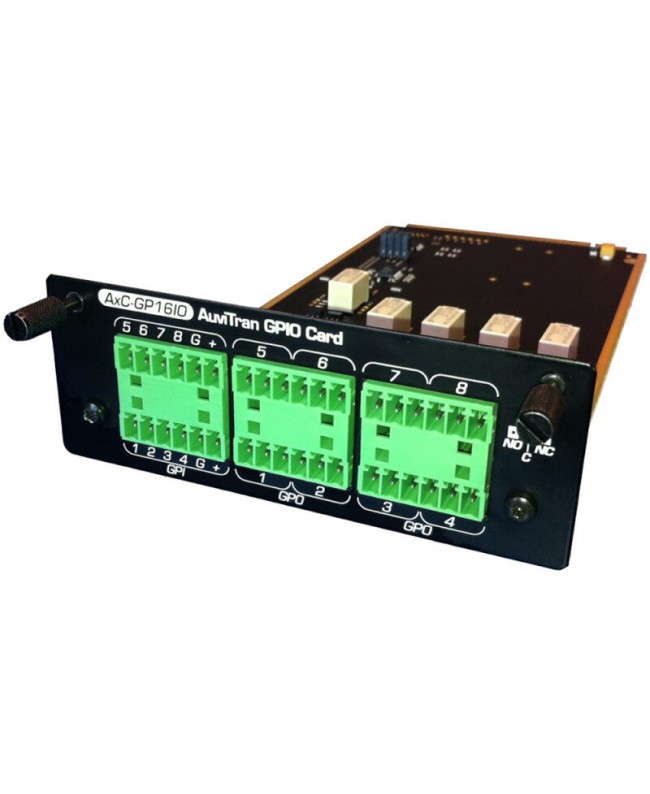

Agora AxC-GP16io



GPIO card with 8 GPI and 8 GPO on relays. It must be inserted in the slot available on the rear panel of the Agora H1 to build the audio bridge.

  • Main features
  • 8 Opto-isolated generic inputs that can be remotely monitored via Ether. Sound
  • 8 Relay switches for up to 250VAC 0.25A, 30VDC 2 A remotely controllable via Ether. Sound
  • Dedicated control page for monitoring and controlling all card parameters
  • Remote management with ESMonitor software via the Ether. Sound network
  • RS232 / RS485 serial interface configurable for remote monitoring and control via a PC application
  • Areas of use
  • Product for fixed installation with high quality audio distribution, paging and zone management:
  • Stadiums, museums and arts centers
  • Opera, theater dressing rooms
  • Theme parks and resorts
  • Pager system for music and announcements
  • PA: fixed sound reinforcement
  • Bars, pubs, discos
  • Exhibition and congress centres
  • Product for public transport communication:
  • Security, voice alarm systems
  • Terminal of train and bus stations
  • Airport services and audio distribution
  • Cruise ships with entertainment on board
  • General purpose inputs: 8 inputs opto-isolated
  • General pupose outputs: 8 relay-switch for up to 250 VAC / 0.25 A 30 VDC 2 A
  • Remote control: Via EtherSound
  • Serial interface: RS232 / RS485 Rx / Tx serial port interface
  • Audio ToolBox platform: AxC-GP16IO is one the cards for the AuviTran Audio ToolBox platform
  • AVS-ESMonitor: AVS-ESMonitor enables to remotely set, control and monitor an EtherSound network and provides enhanced control pages to manage the AxC-GP16IO card specific parameters.
  • OS Supported: Windows Seven / Vista / XP for 32 or 64 bit versions
  • Size: 200 x 100 x 40 mm‚ AuviTran Audio ToolBox platform cards
  • Power supply: +12 V / +3.3 V Through AuviTran Audio ToolBox backplane
  • Storage: temp / humidity: -5 to 70 °C / 0 to 95% (non-condensing)
  • Operating: temp / humidity: 0 to 50 °C / 5 to 90% (non-condensing)
  • Connectors: 1 x 6 pole double row Euroblock Connector (pitch 3.81 mm) for GPI 2 x 6 pole double row Euroblock Connector (pitch 3.81 mm) for GPO

AGO-AXC-GP16IO
