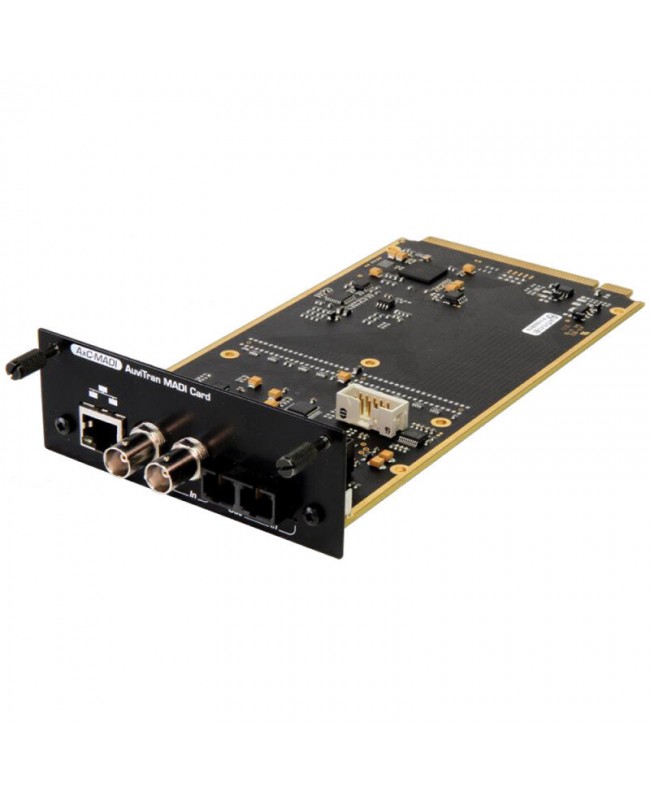

Agora AxC-MADI

MADI card with 64 IN and 64 OUT on 2 x BNC or SC-Duplex active and remote IP control on RJ45. It must be inserted into the slot available on the rear panel of the Agora H1 to build the audio bridge. Ax. C-MADI offers a cost-effective and widespread solution for the transmission of up to 2 x 64 channels between two devices. Paired with an Auvi. Tran Audio Tool. Box platform, the Ax. C-MADI board provides the gateway for MADI connected devices.

• Main features
• MADI interface on both optical and coaxial connectors with 64 or 56 channel mode support
• 24-Bit audio - 44.1 k. Hz, 48 k. Hz, 88.2 k. Hz, 96 k. Hz
• Dedicated control page for monitoring and controlling all card parameters
• Remote management with AVS-Monitor software
• Ax. C-MADI applications
• Combined with other Auvi. Tran Audio Tool. Box cards, the Ax. C-MADI card opens up interesting possibilities for professional audio systems:
• Ether. Sound ES100‚ MADI bridge, with exclusive connectivity possibilities (dynamic patching solution, remote control, ASIO record / playback...)
• MADI-based stage boxes, combined with Ax. C-AX4M high-performance MIC / line preamplifier boards
• Live applications:
• MADI audio Stage. Boxes
• MADI Dante bridges
• MADI Ether. Sound bridges
• Fixed installations:
• MADI connected audio systems
• Broadcast centers and installations
