Agora AxC-MADI/SFP Accessories for AV Networking
  • -26%
  • New

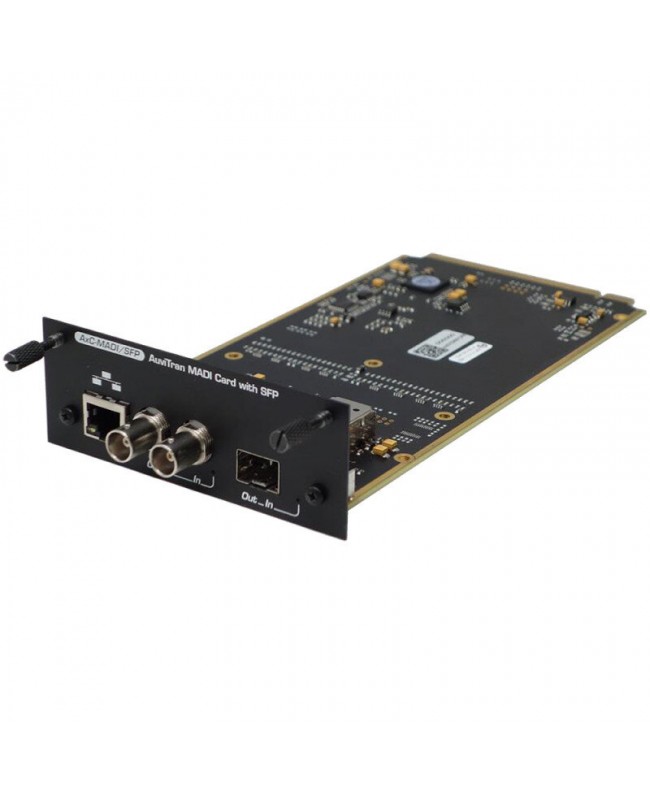

Agora AxC-MADI/SFP

€2,531.00
€1,880.00 -26%
Tax included
Lowest price within the last 30 days: €1,880.00

MADI card with 64 IN OUT 64 OUT on 2 x BNC or SFP cage and remote IP control on RJ45

Out of Stock

Free shipping

Compare

wishlist

Agora AxC-MADI/SFP



Ax. C-MADI/SFP offers a convenient and popular solution for transmission of up to 2 x64 channels between two devices. Coupled to an Auvi. Tran Audio Tool. Box platform, Ax. C-MADI/SFP card provides the cost-effective gateway to MADI connected devices with the possibility to choose the optical transmission between multi-mode and monomode thanks to SFP cage.

Combined with other Auvi. Tran Audio Tool. Box cards, the Ax. C-MADI/SFP card opens exciting very powerful and flexible possibilities to the professional audio systems:

MADI based stage boxes, in combination with the high performance Ax. C-AX4M high class mic/line preamps cards.

  • Ax. C-MADI/SFP applications
  • Dante-MADI bridges, with many connectivity possibilities
  • Live applications
  • MADI audio Stage. Boxes
  • MADI Dante bridges
  • MADI Ether. Sound bridges
  • Fixed installations
  • MADI connected audio systems
  • Broadcast centres and installation
  • Main features
  • MADI interface on both SFP (optical) and coaxial connectors
  • 64 Or 56 channels modes supported
  • Audio 24 bits, at 44.1 k. Hz, 48 k. Hz, 88.2 k. Hz, 96 k. Hz
  • Remote management with AVS-Monitor software
  • Dedicated control page for monitoring and controlling all the card parameters
  • Number of I/O: Up to 64 digital inputs/outputs routed through the AuviTran Audio ToolBox backplane to the other cards of the AuviTran Audio ToolBox range
  • Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
  • A/D resolution: 24 bits
  • Input specification: MADI 56 / 57 / 64 channels mode S-Mux or multiple rate
  • Audio ToolBox platform: AxC-MADI/SFP is one the cards for the AuviTran Audio ToolBox platform
  • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor an EtherSound network and provides enhanced control pages to manage the AxC-MADI/SFP card specific parameters.
  • OS Supported: Windows 10 / 8 / Seven / Vista / XP for 32 or 64 bit versions
  • Power supply: +12 V / +3.3 V - Through AuviTran Audio ToolBox backplane
  • Storage: temp / humidity: -5 to 70 °C / 0 to 95% (non-condensing)
  • Operating: temp / humidity: 0 to 50 °C / 5 to 90% (non-condensing)
  • Size: 20 x 10 x 4 cm‚ AuviTran Audio ToolBox platform cards format

AGO-AXC-MADI/SFP

Specific References
