• New

Fonestar 10'' Android Touch Screen Permatrici NMX Series


€831.00
Tax included

10'' Android Touch Screen Permatrici NMX Series


Out of Stock

Free shipping


wishlist

Fonestar 10'' Android Touch Screen Permatrici NMX Series

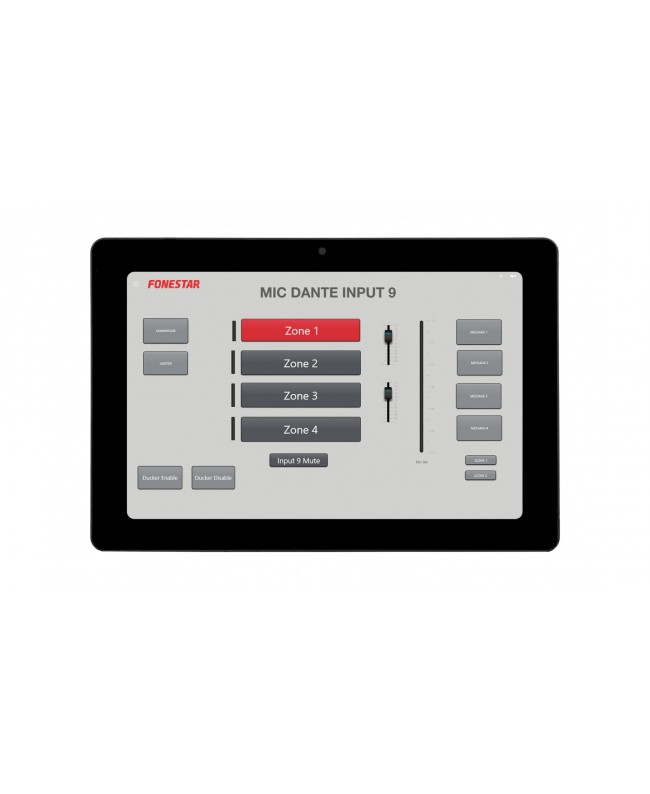

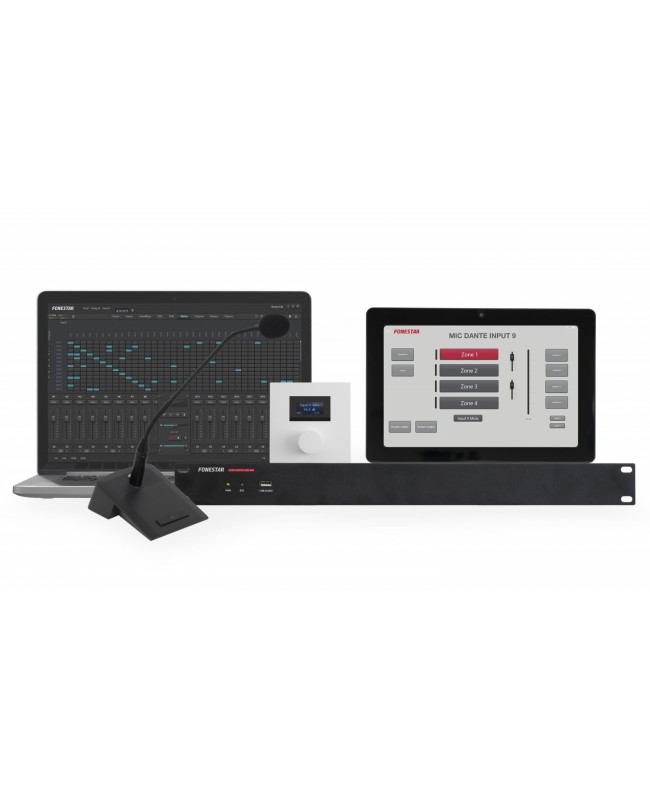

10'' Android touch screen to run the NMX series matrix user interface app 10'' Android tablet-based touch screen to run the NMX series matrix user interface app.Provides a customized user interface with the most common functions. It simplifies system managementby the end user, interacting locally without having to access the complex configuration of the matrix. Programming the user interface is done with PC control software.You can select functions such as volume control, gain control, Mute, scene recalland special actions with UDP, RS-232 or RS-485 commands.The User Interface App, available for Android and iOS, is required. The touch screen has an Ethernet connection with RJ45 for stable connection and POE power supply. Touch screen with user interface for applications where volume controland source selection are required locally in zones as well as other types of actions.Such as in bars with music, restaurants, hotels, malls, conference rooms, etc.

  • FEATURES: 10'' tablet-based touch screen
  • Android 2G + 16G.
  • To run the UI app for NMX series arrays.
  • Programmable and customizable with PC control software.
  • Main functions are volume control, gain control,Mute, scene call, UDP, RS-232 or RS-485 commands.
  • Supports multiple touch screens in one installation.
  • Connection via
  • RJ45 Ethernet and POE power supply.

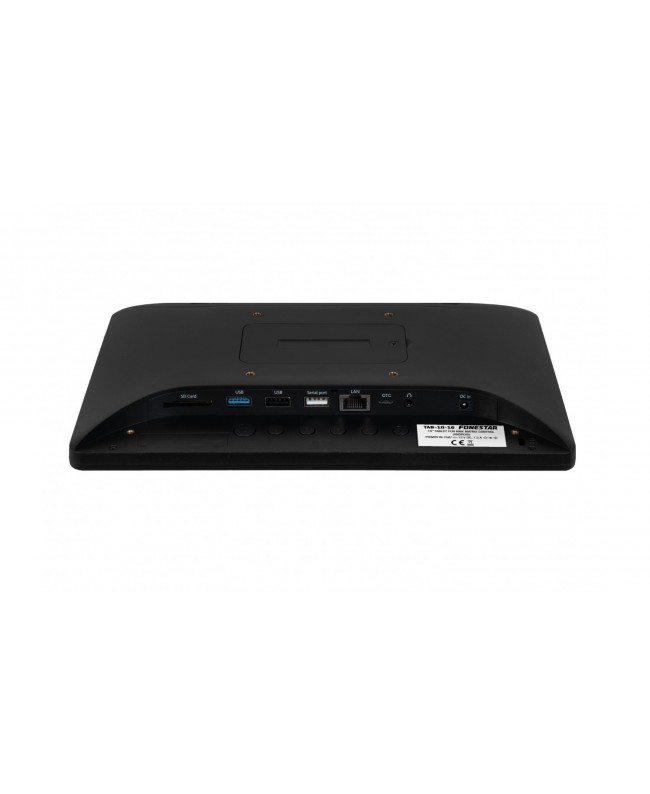

  • Compatible with VESA 75 x 75 support. INPUTS: 1 LAN port for local area network connection, RJ-452 USB ports1 SD port1 USB serial port1
  • Micro USB OTG OUTPUTS: 1 3.5 mm headphones CONTROLS: Power, home, brightness and volume adjustment buttons POWER SUPPLY: POE and 12 V DC, 1.5 A MEASUREMENTS: Depth 255 x 170 x 30 mm

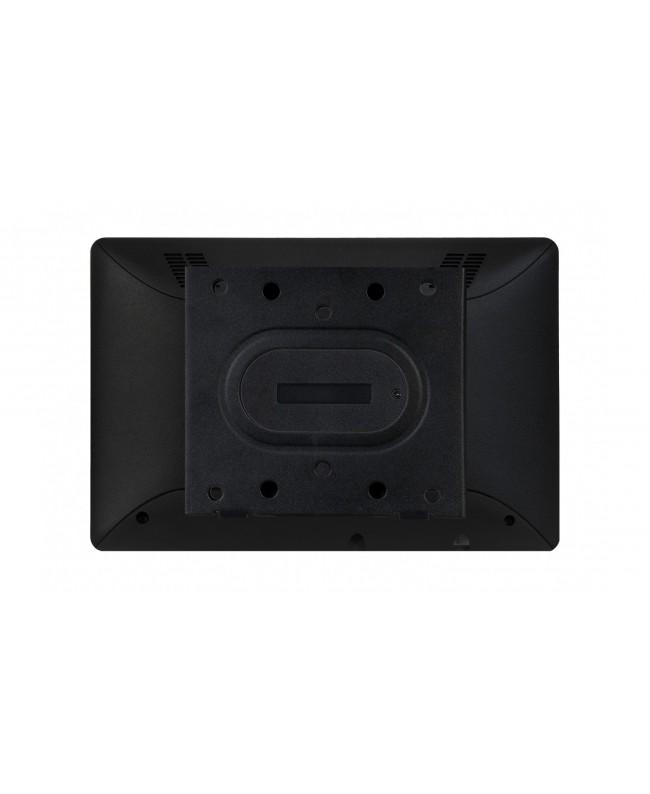

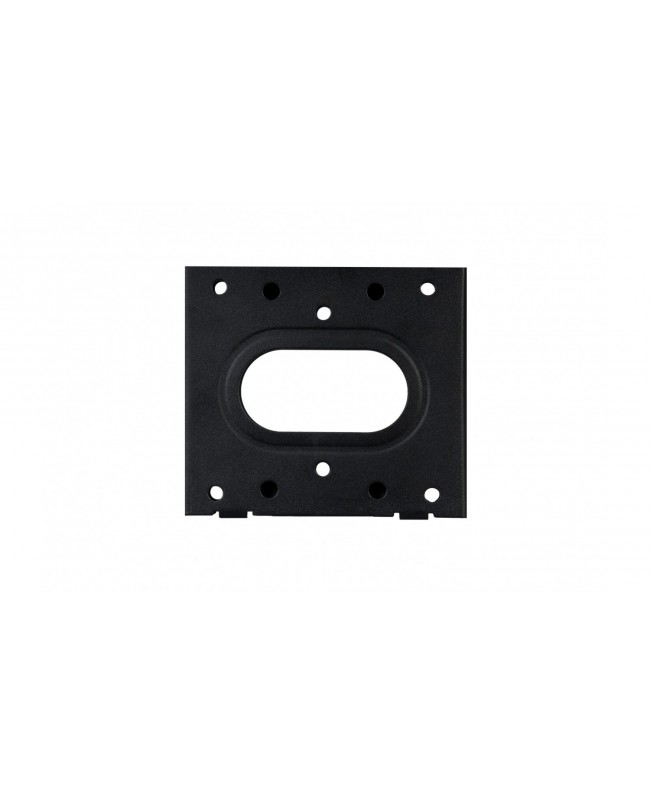

  • Compatible with VESA 75 x 75 mounts WEIGHT: 0.8 kg
  • Want more information regarding our product? Contact us now!

TAB-10-16
