KLARK TEKNIK DW 20BR Active DI Boxes

KLARK TEKNIK DW 20BR


€77.70
Tax included

Bluetooth Wireless Stereo Receiver for High-Performance Stereo Audio Broadcasting


Out of Stock



wishlist

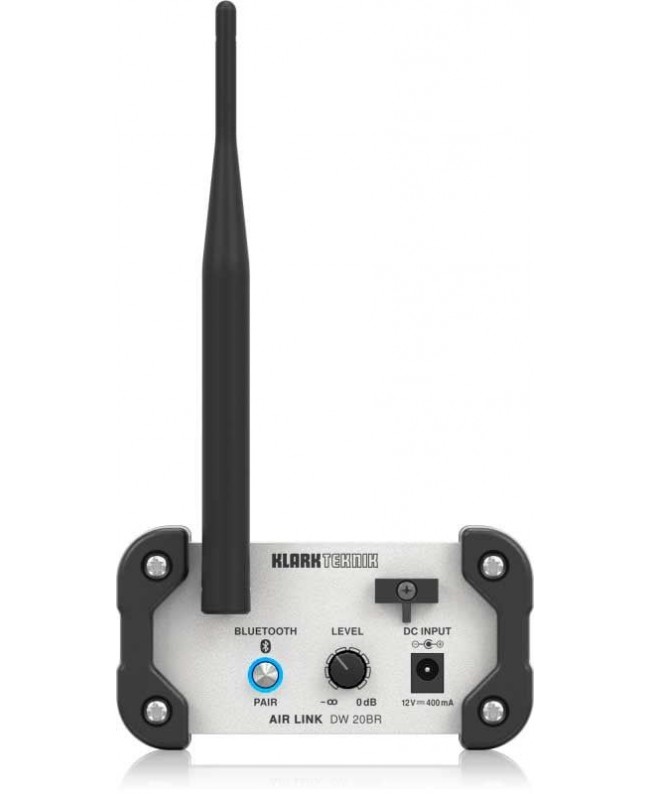

KLARK TEKNIK DW 20BR



AIR LINK DW 20BR

The AIR LINK DW 20BR Bluetooth Wireless Stereo Receiver brings the convenience of high-performance audio-streaming to any installed or portable sound system, making it ideal for hospitality and event spaces, as well as retail, home audio, and much more. Featuring a maximum wireless range of 100 feet (30 m), DW 20BR is easy to use and utilises premium-grade industry-standard balanced XLR and unbalanced 1/4" TRS connectors to cover a wide range of audio applications.

Superior Performance

Thanks to its high headroom design, the DW 20BR receiver provides pristine audio streaming that is far superior to competing products. Care has been taken in both the design process and component selection to ensure the highest-quality performance in its class.

Maximum Range and Flexibility

Aided by an external articulated antenna, the DW 20BR is designed to provide dependable reception over an astounding range of up to 100 feet (30 m). Multiple receivers can be deployed to provide targeted zone broadcasting, as long as each DW 20BR is paired with only one Bluetooth streaming device at a time – allowing unique content to be streamed concurrently across each of the individual zones.

Specification

Outputs

  • Connectors Balanced XLR, unbalanced ¼"
  • Impedance 240 Ω
  • Max. output level 4 dBu @ 1 kHz

Bluetooth

  • Frequency range 2402 - 2480 MHz
  • Channel number 79
  • Bluetooth version 4.2
  • Receiver range Up to 30 m (100 ft)
  • Output power Class 2, <10 dBm
  • Supported codec SBC, aptX
  • Supported profiles AVRCP 1.4, A2DP 1.2

System

  • Frequency response 20 Hz to 20 kHz (+0/-2 dB)
  • THD + N (distortion) 0.1% @ 1 kHz
  • Signal-to-noise ratio >90 dB
  • Power adaptor 12 V DC, 400 mA, center positive

Physical

  • Dimensions (H x W x D)
  • Without bumpers or antenna
  •  54 x 108 x 103 mm (2.1 x 4.3 x 4.1")
  • With bumpers, without antenna
  • 63 x 118 x 112 mm (2.5 x 4.6 x 4.4")
  • With bumpers, upright antenna
  •  212 x 118 x 126 mm (8.3 x 4.6 x 5.0")
  • Weight incl. bumpers and antenna
  • 0.6 kg (1.3 lbs)

657842
