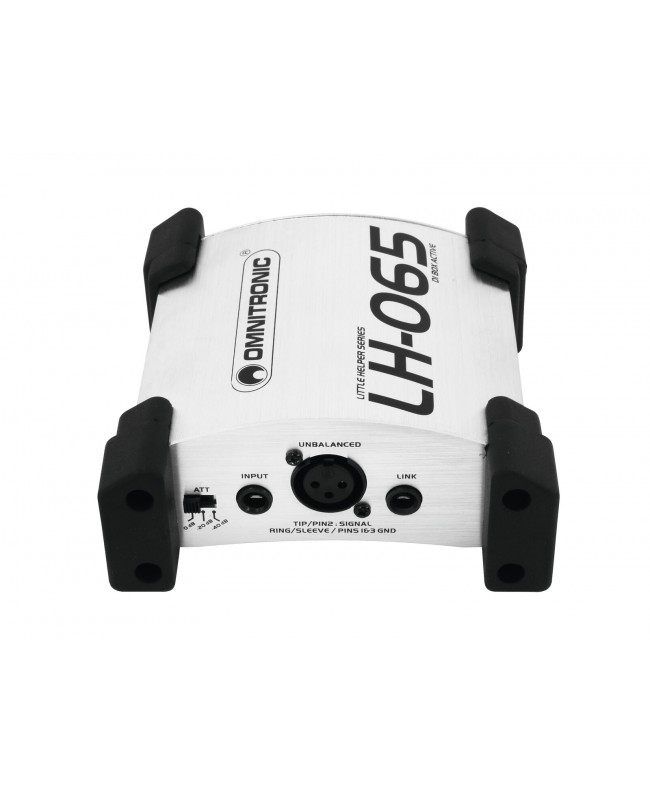

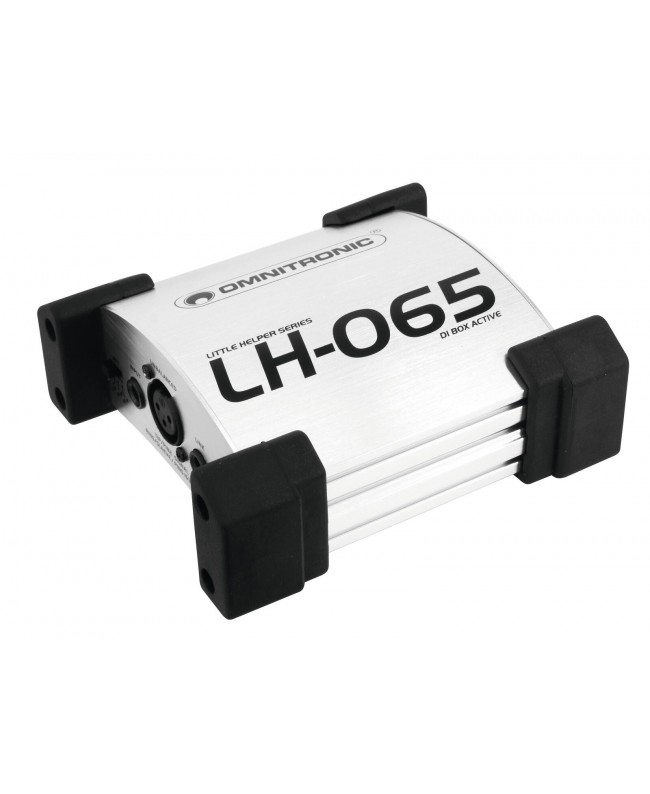

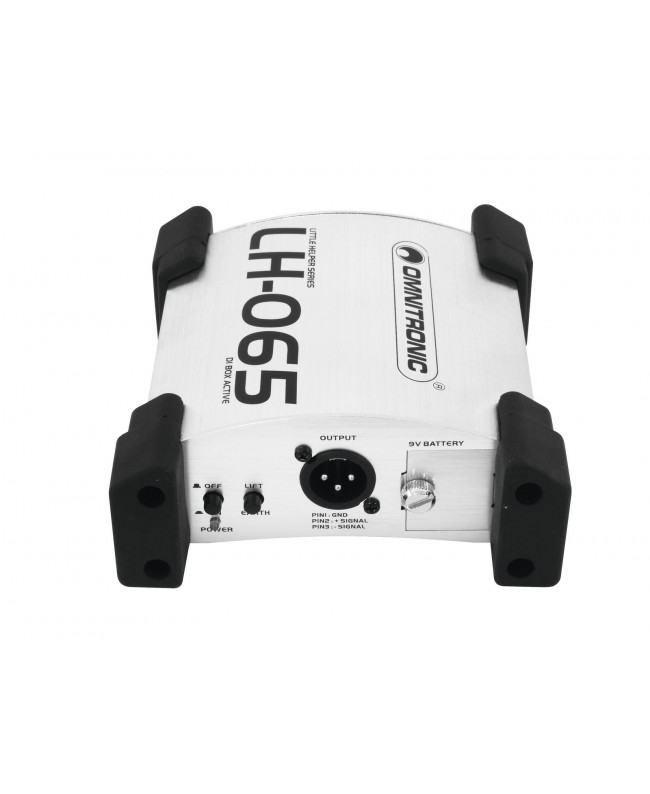

Omnitronic LH-065 DI Box active

• 1 high-impedance signal input via XLR or 6.3 mm jack connectors
• 1 low-impedance XLR output
• 6.35 mm jack input, and output
• Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
• Switchable input attenuation: 0 dB, -20 dB, -40 dB
• Cables can be routed under the housing
• For application areas such as: Installation; mobile use; mobile djs / entertainer

Scope of delivery

• 1 x device
• 1 x user manual
• 1 x battery

• Protection class: Protection class III
• Battery: 1 x 9.0 V E block 6F22 zinc carbon included
• Frequency range: 10 - 30000 Hz
• THD: 0.5 % at 1 kHz
• Impedance: Input: 470 kOhm, Output: 600 Ohm
• Input attenuation: 0 dB, -20 dB, -40 dB; switchable
• Housing color: Silver
• Control elements: Power switch, groundlift selector, Input sensitivity switch
• Connections: Input: 1 x 3-pin XLR, Input: 1 x 6.3 mm plug (unbal.), Link: 1 x 6.3 mm plug (unbal.), Output: line via 1 x 3-pin XLR
• Max. level: Output: +6 dBu
• Dimensions: Width: 15 cm, Depth: 13 cm, Height: 6 cm
• Weight: 0.54 kg
