DAP SDI-202

The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

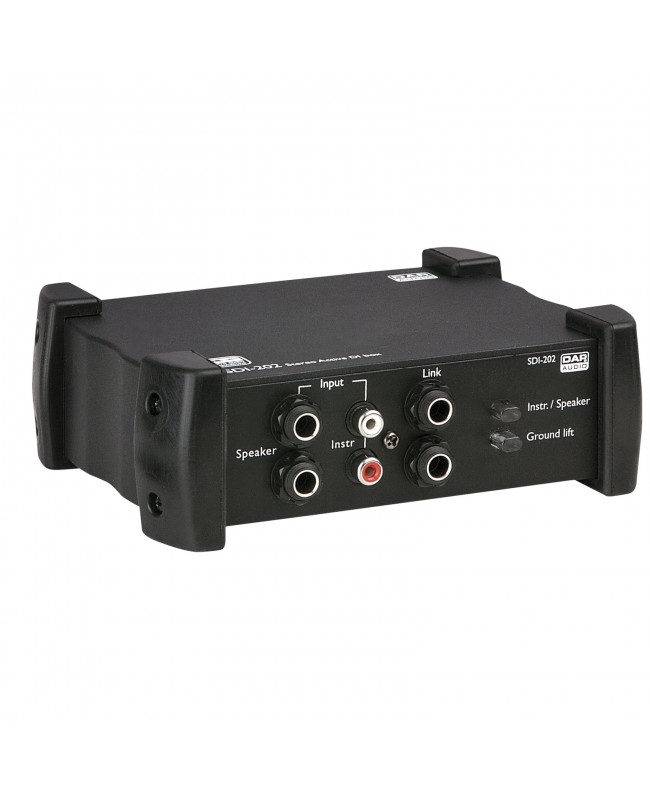

The DAP SDI-202 is a multifunctional DI-Box. It can be used to amplify a signal or create a balanced output. Activating the ground lift provides an even frequency response to any input signal with the benefit of canceling out interference, hums and buzzes. You can switch between instrument and speaker mode.

Instrument mode can be used to connect an instrument with high output impedances, such as an electric guitar or acoustic guitar with a piezo-ceramic pickup. In addition, you can connect electrical devices with an unbalanced output, such as a keyboard or DJ mixer without balanced outputs.

Speaker mode allows you to balance the output of a guitar amp to create a clean, low-level signal, allowing your signal to be driven through long cables with no problem.

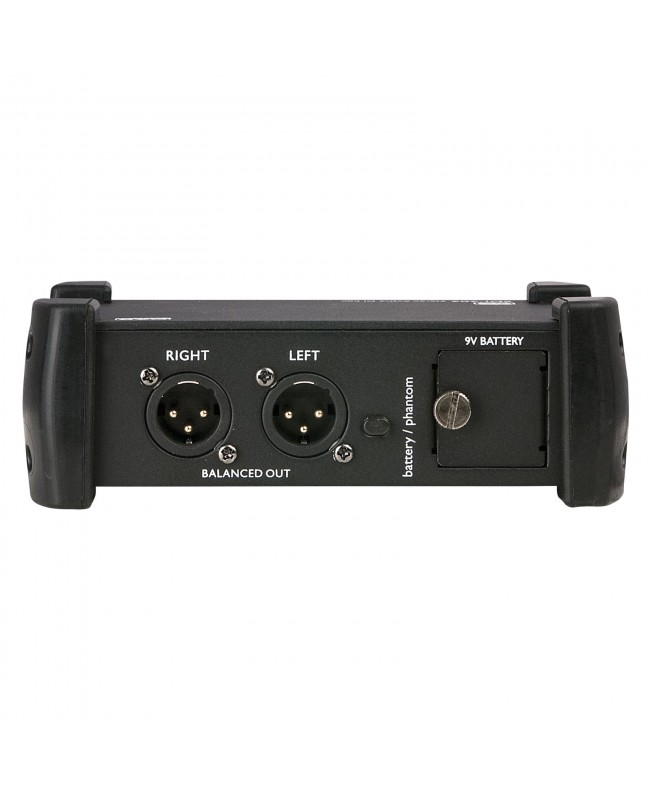

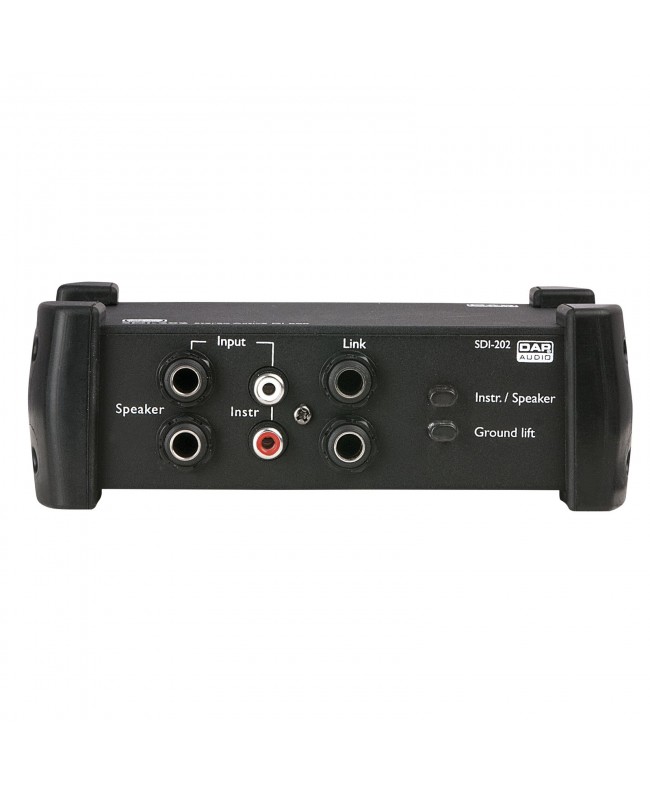

• RCA/2x 6.3 mm TS Jack in, 2x balanced XLR out
• Prevents ground loops, hum and buzz
• Road proof housing with rubber feet
• 9 V power supply or 18-48 V phantom power
• Ground lift
• Instrument and speaker inputs
