Omnitronic KM-115A Active Stage Monitor coaxial

• Active 2-way coaxial stage monitor for live and playback applications
• Class D/AB biamp power amplifier
• 38 cm bass speaker (15) and 3.5 cm compression driver (1.35)
• Bassreflex cabinet provides deep bass and high SPL
• Low cut, volume control
• Black metal grille
• Application possibility: Standing; monitoring; on stand
• For application areas such as: Band/rehearsal room; mobile use; stage

Scope of delivery

• 1 x compact cabinet speaker
• 1 x user manual
• 1 x power cord

• Power supply: 115/230 V AC, 50/60 Hz
• Power consumption: 300 W 1/8 power
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 2 A fuse replaceable
• Power: Program: 500W, Rated: 50W RMS HF, Rated: 250W RMS LF
• Frequency range: 45 - 20000 Hz
• Max. SPL: 124 dB
• Dispersion angle: 60° x 60°

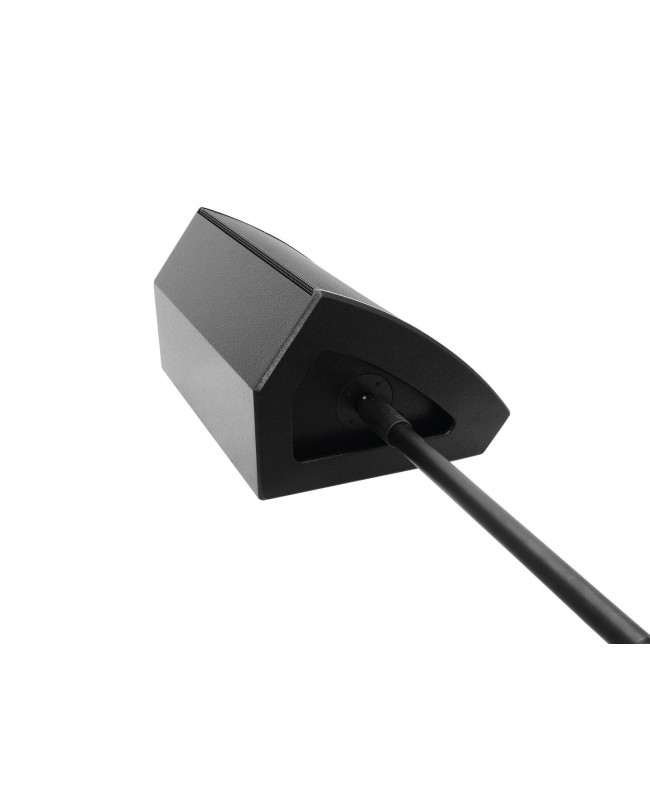

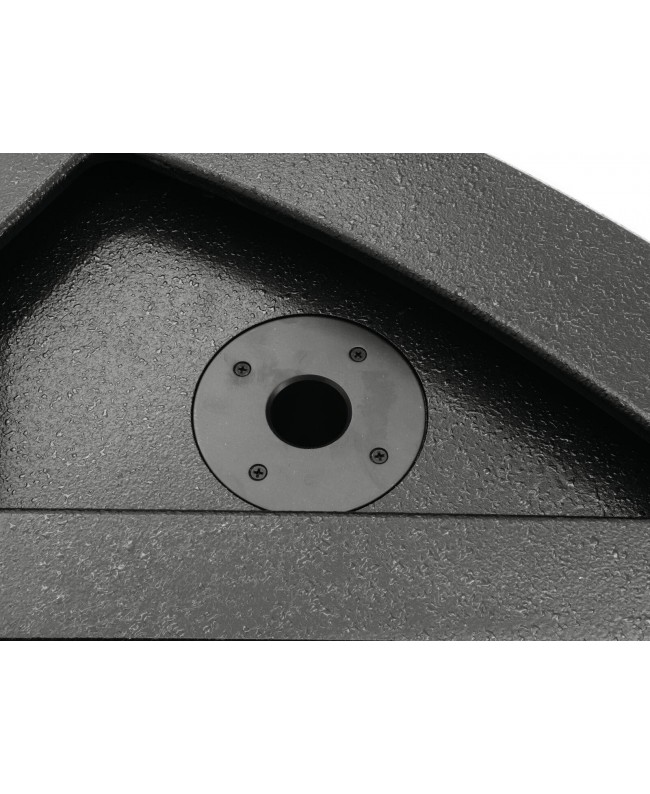

• Attachment system: Flange: Ø 35mm

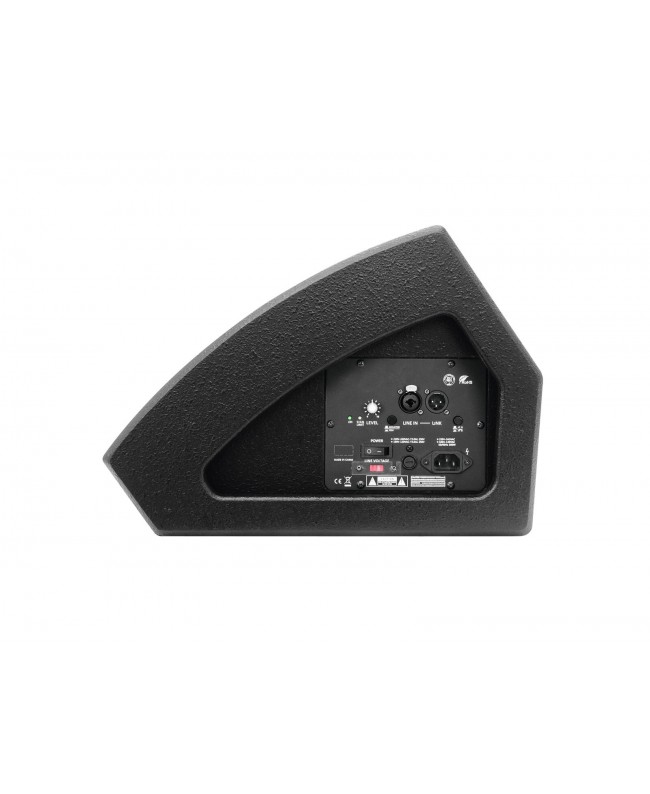

• Control elements: Power switch, level control, tone control, groundlift selector
• Controls: Overload; limiter
• Status LED: Power, limit
• Connections: Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 1 x 3-pin XLR
• Input channels: 1 x mono via XLR or jack, channel control via rotary dial
• Speaker: 1 x woofer 15 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, 1 x voice coil compression tweeter highs 1.35
• Type of speaker: Compact cabinet speaker; coaxial speaker; stage monitor
• Material: MDF (medium density fiberboard), 15 mm
• Color: Black, textured coating, painted
• Dimensions: Width: 60 cm, Depth: 37 cm, Height: 54 cm
• Weight: 22.90 kg
