PSSO MIMO-150A Active Stage Monitor

• Efficient class D amplifier with 150 watts power
• High sound pressure and wide frequency range
• Low weight
• Black metal grille with acoustic foam
• High-quality workmanship with birch multiplex , black, rubberized Polyurea coating
• LAVOCE speaker
• For application areas such as: Stage; concerts/FoH's; band/rehearsal room; mobile use
• Application possibility: Monitoring

Scope of delivery

• 1 x device
• 1 x user manual
• 1 x power cord

• Power supply: 230 V AC, 50 Hz
• Power consumption: 270 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version
• Power: Rated: 150W RMS, Program: 250W
• Frequency range: 78 - 20000 Hz
• Max. SPL: 119 dB
• Dispersion angle: 30° x 60°
• Attachment system: 2x M6 thread, 2x M10 thread
• Control elements: Power switch, level control, tone control
• Controls: Limiter
• Status LED: Power, limit

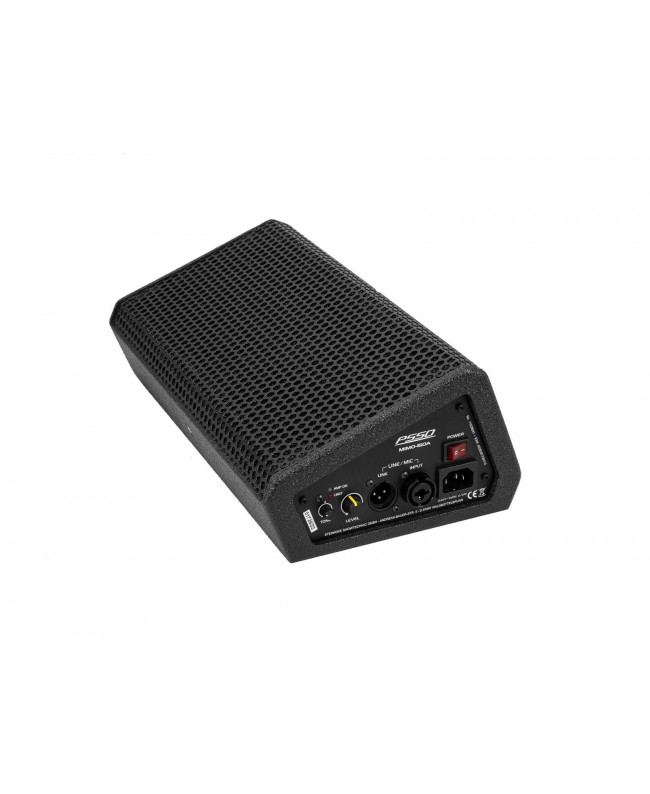

• Connections: Input: line via 1 x 6.3-mm-jack (bal.), Input: microphone via 1 x 3-pin XLR, Output: 1 x 3-pin XLR (M) mounting version
• Speaker: 3 x full range loudspeaker 4 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper
• Type of speaker: Stage monitor
• Type of construction: Closed Box
• Use of brands: LAVOCE speaker
• Material: Birch multiplex
• Color: Black, rubberized Polyurea coating
• Dimensions: Length: 20 cm, Width: 36 cm, Height: 13 cm
• Weight: 5.05 kg
