DAP Splash 8A Active Speakers

DAP Splash 8A

€186.00
Tax included

8" full range active loudspeaker

Qty

In Stock

Delivery

Do You want Your order by Thursday, 28/08/2025? Order within 1 hours and 19 minutes

Free shipping

Compare

wishlist

DAP Splash 8A

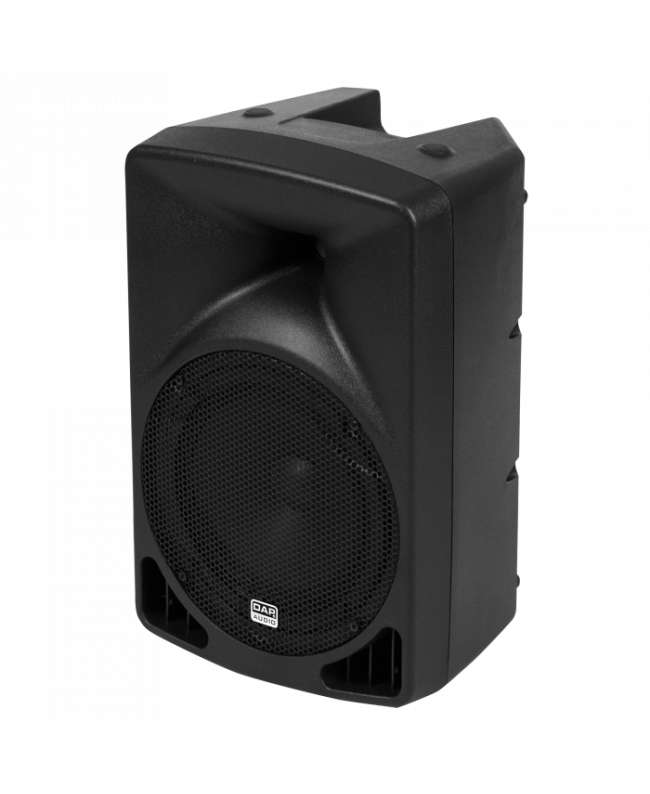

The DAP Splash 8A is an 8-inch full-range active loudspeaker with a maximum sound pressure level of 113 dB at 1 m. With its integrated 240-watt amplifier, it is perfect as a floor monitor or PA speaker for small venues. It stands out for its versatile design and clear sound. The Splash 8A is compact and has a narrow dispersion angle to minimise feedback and make the most of its performance.

The Splash series has been designed for durability and performance. The speaker features a robust ABS housing with handles, a universal adapter for mounting on stands and rubber feet for quick and secure installation.

  • Suitable as a PA speaker or floor monitor
  • Compact, lightweight and robust ABS housing
  • 120 W RMS, max SPL of 113 dB at 1 m
  • Universal use
  • Handles, 35 mm adapter for mounting on pipes and rubber feet

Outputs

  • Bass driver power: 90 W
  • Tweeter driver power: 30 W
  • Power amplifier RMS power: 120 W
  • Power amplifier Peak power: 240 W
  • Main outputs: 1
  • Main output Connector: 3-pin XLR

Inputs

  • Mono inputs: 1
  • Mono input Connector: 3-pin XLR

Audio specifications

  • THD level: < 0.5%
  • Signal-to-noise ratio: > 80 dB
  • Amplifier technology: Class D
  • Damping factor: 200 :1
  • Speaker system: 2-way
  • Speaker sensitivity (1 W/1 m): 92 dB
  • Maximum SPL at 1 m: 113 dB
  • Minimum frequency response (-6 dB): 68 Hz
  • Maximum frequency response (-6 dB): 20000 Hz
  • Crossover frequency (tweeter): 2 Hz
  • Woofer diameter: 8"
  • Woofer voice coil diameter: 1.5‘
  • Woofer magnet type: ferrite
  • Compression driver diameter: 1’
  • Compression driver voice coil: 1"
  • Compression driver magnet type: ferrite
  • Dispersion angle (horizontal): 90°
  • Sound dispersion angle (vertical): 45°

Electrical specifications and connections

  • Power supply: 100-240 V AC 50/60 Hz
  • Power consumption: 44 W
  • Fuse: 0.8 A
  • Power input: IEC

Mechanical specifications

  • Amplifier cooling: convection
  • Height (mm): 420 mm (16.535″)
  • Width (mm): 270 mm (10.63″)
  • Depth (mm): 240 mm (9.449″)
  • Material: ABS
  • Colour: black
  • Weight: 5.53 kg (12.192 lb)
  • IP rating: IP20 (indoor use only)

Product features

  • Pipe mounting: 35 mm
  • Electronic protection: clip limiter (fixed), continuous voltage, soft start, thermal
  • LED indicators: clip, power, signal
  • Rotating siren: no
  • Can be used as monitor/wedge: yes
  • Speaker grille material: steel
  • Speaker handle positions: top

Items included

  • Cables included: IEC cable

D3588

Data sheet

Woofer inch
8"
