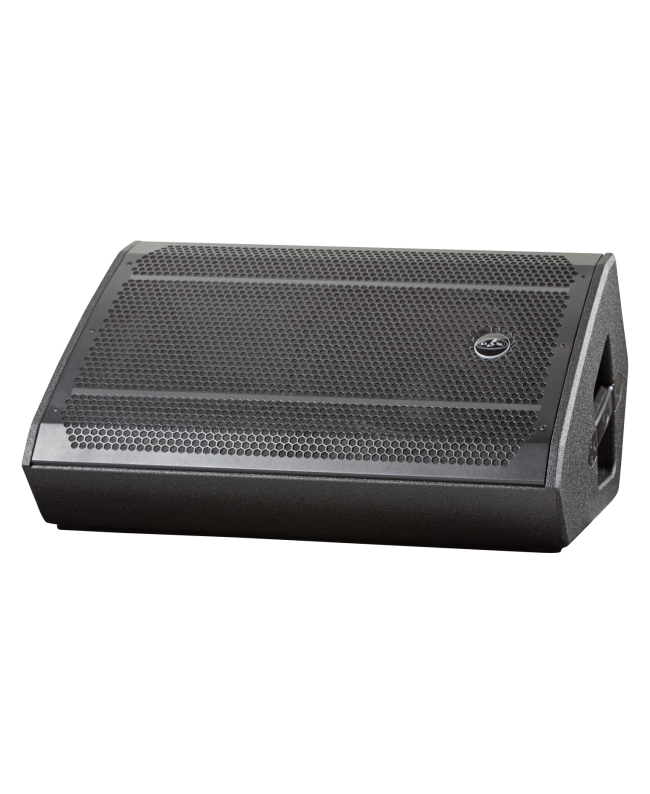

DAS ACTION-M512A

ACTION-M512A is a self-powered stage monitor designed to offer great versatility, suitable for both fixed installations and portable monitor use. Thanks to its 80º x 50º adjustable speaker, it can also be used as a PA system, providing additional flexibility in sound reinforcement applications.

Equipped with a 12“ transducer (model 12MI4) for low frequencies and a 1” M-34 compression driver, the ACTION-M512A achieves a maximum SPL of 130 dB, offering clear and accurate sound reproduction across the entire frequency range, from 60 Hz to 20 kHz. The 1000 W peak Class D amplifier ensures exceptional performance both on stage and in fixed installations.

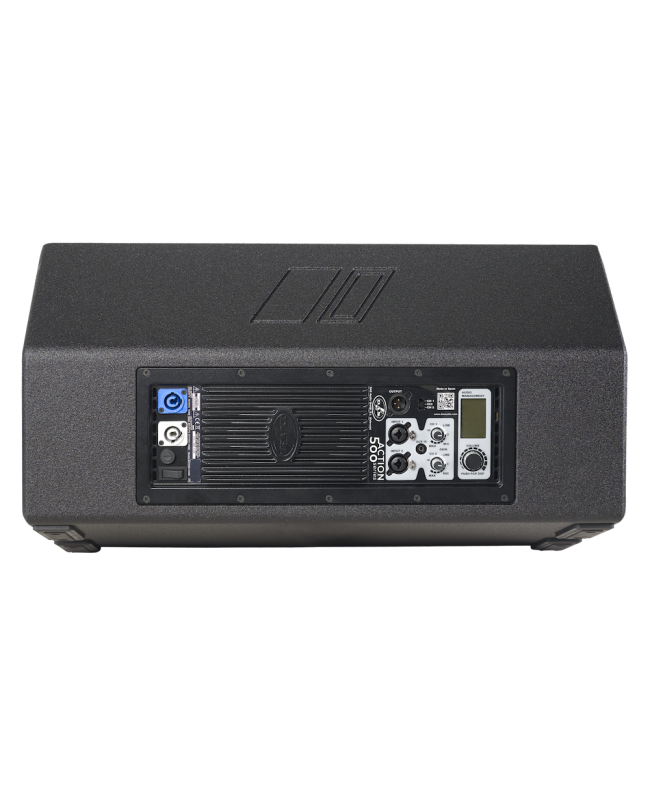

The system incorporates DAScontrol™ technology, which allows users to configure presets, equalization modes, delay, gain, and signal source mixing via a 24-bit DSP and LCD display located on the rear panel. In addition, it features a 2-input balanced XLR mixer, an additional 3.5 mm Mini Jack input, and powerCON connection, facilitating its integration into various audio configurations.

The cabinet is constructed from birch plywood and coated with a durable ISO-flex finish, designed to withstand intensive use in professional environments. The ACTION-M512A offers durability and reliability in any scenario, ensuring optimal performance in monitoring applications.
