RCF NX 985-A

• Up to 138 dB Sound Pressure Level
• 2100W Class-D Amplifier
• 40-20000 Hz linear frequency response
• 1.75" Neodymium Compression Driver with Peek diaphragm
• 8" Midrange, 2.5" v.c.
• 15" High Power Woofer
• Bass Motion Control and FiRPHASE processing
• M10 Rigging Points
• IP Rated Powercon TRUE1 TOP IN/OUT

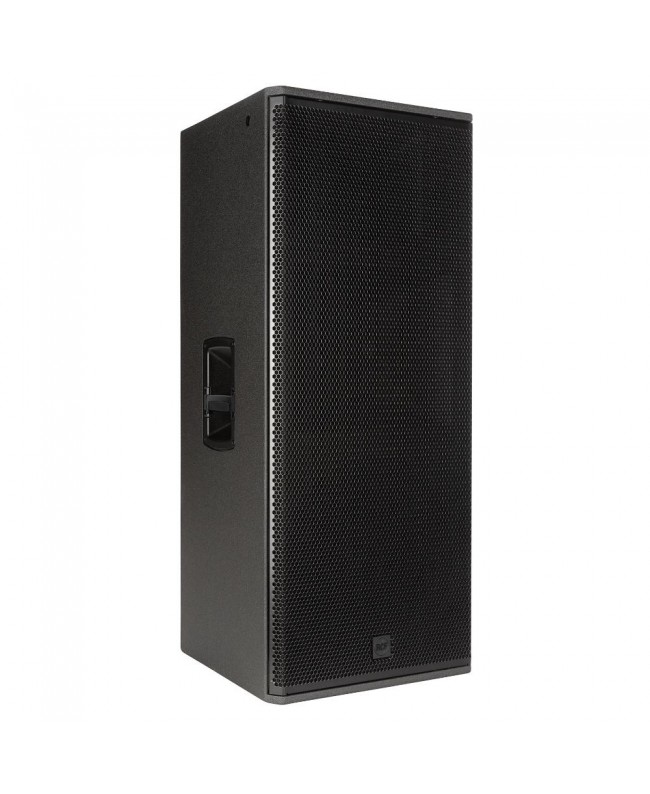

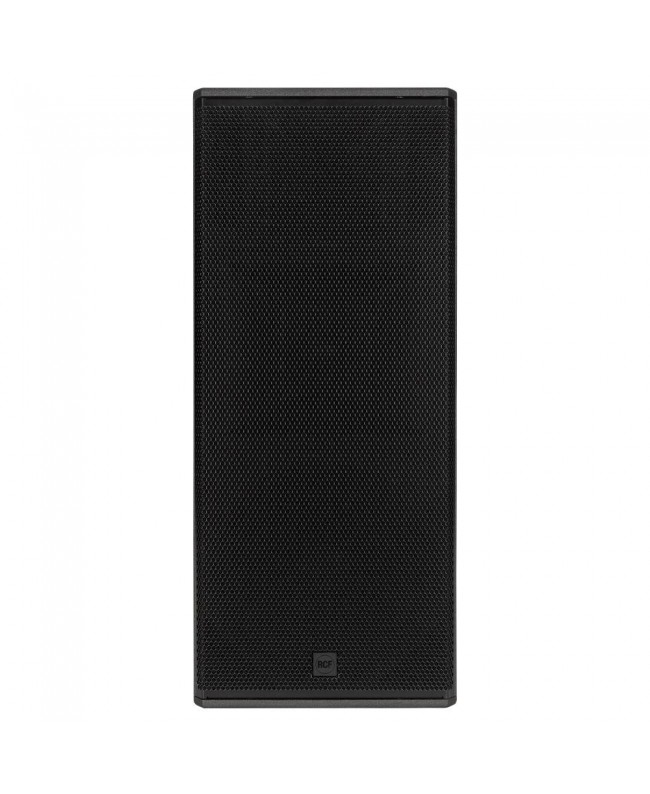

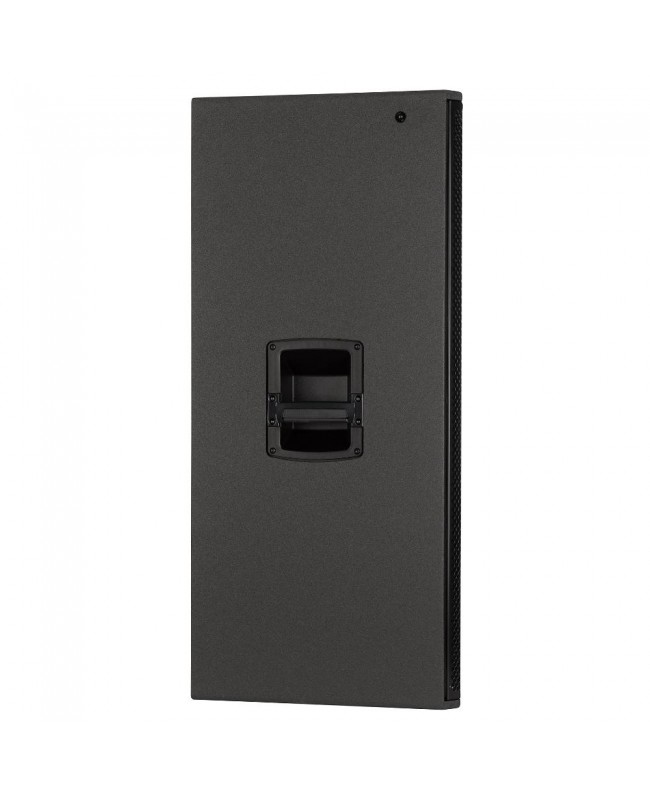

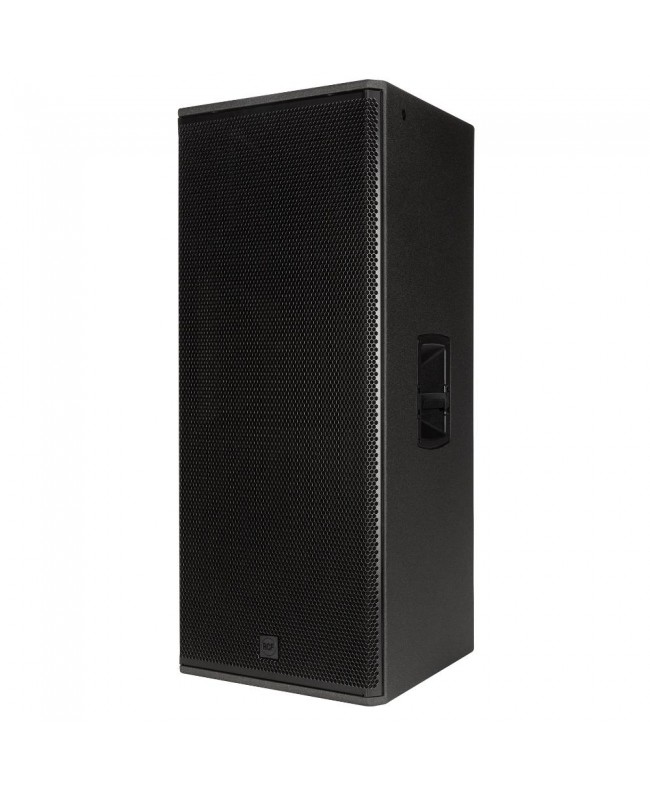

NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound. The three-way design features a 1.75" neodymium compression driver with a constant directivity waveguide, 8" cone midrange on a phase-coherent waveguide, and a 15" high power woofer. Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability. The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.

Power that moves

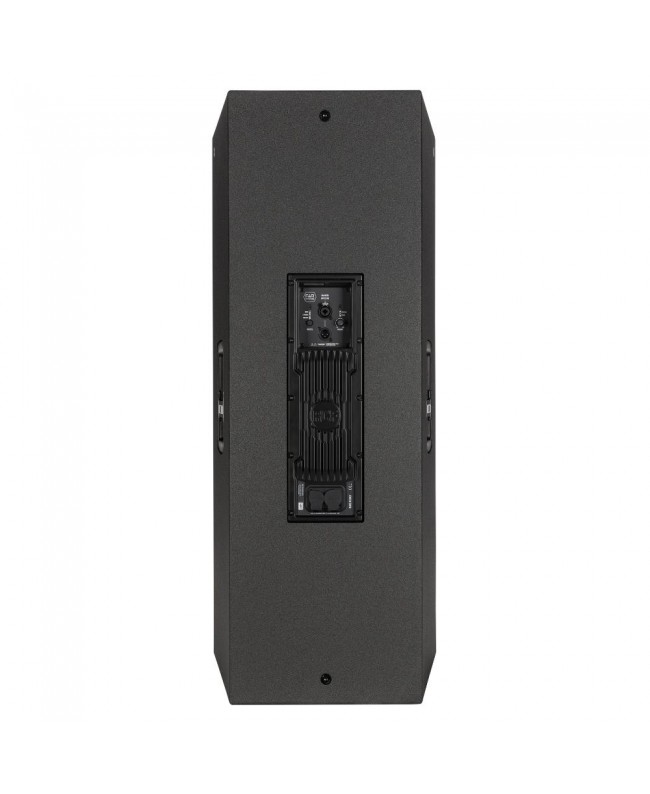

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2100W of power, the 2-channel NX 9 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. NX 9 is energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

Superior transducers

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The extended clarity of the 1.75" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class peek dome and the Polyamide/Kapton voice coil handle extreme power levels with very low distortion. The midrange section adds detail and vocal clarity with a high-power 8" cone midrange on a constant directivity waveguide. One high-power 15" low-frequency woofer with a new advanced transducer design gains more stability over higher currents, with less distortion, fast transient response, and better heat handling.
