Omnitronic XNG-210A 2-way Speaker, active, DSP

• Active PA speaker system for touring applications and permanent installations
• DSP-controlled biamp amplifier (class D)
• Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
• Digital signal processor; delay; Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
• DSP presets: DEFAULT; LIVE; DANCE; MONITOR; SPEECH
• Control via Bluetooth
• Bluetooth: operating range up to 10m in buildings
• Monochrome LCD display
• Black metal grille with acoustic foam
• Rugged carrying handle
• The device is cooled by passive convection cooling
• Application possibility: Standing; monitoring; on stand
• For application areas such as: Mobile use; rental; sports centres/gyms; mobile djs / entertainer

Scope of delivery

• 1 x compact cabinet speaker
• 1 x power cord
• 1 x user manual
• 1 x declaration of conformity

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 120 W
• Output power: 350 W RMS system, 250 W RMS (8 ohms) LF, 100 W RMS (8 ohms) HF
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Frequency range: 58 - 20000 Hz
• Max. SPL: 122 dB
• DSP: Digital signal processor; delay; Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
• DSP presets: DEFAULT; LIVE; DANCE; MONITOR; SPEECH
• Dispersion angle: 90° x 60°
• Cooling: Passive convection cooling
• Low cut: FLAT, 80Hz, 100Hz, 120Hz, switchable
• Delay: 0 - 10 ms
• Control: Bluetooth
• Bluetooth: With stereo link (TWS)
• Bluetooth device name: XNG-210A DSP
• Range: Bluetooth: range up to 10m in buildings
• Carrier frequency: 2.4 GHz
• Attachment system: Flange: Ø 35mm
• Circuitry: Class D Biamp
• Display type: Monochrome LCD display
• Control elements: Power switch, encoder, level control per channel
• Controls: Overheat; DC voltage; short-circuit; limiter
• Status LED: Power, limit

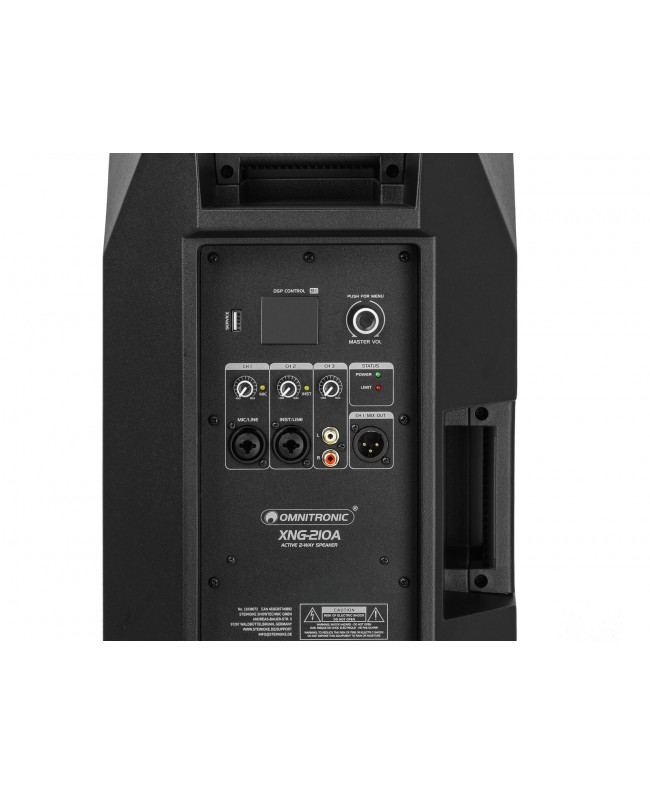

• Connections: Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: Line/Hi.Z. via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x stereo RCA, Output: line via 1 x 3-pin XLR (M) mounting version
• Speaker: 1 x woofer 10 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 2, Compression tweeter highs 1, Voice coil compression tweeter highs 1
• Type of speaker: Compact cabinet speaker
• Type of construction: Vented
• Carrying handle: 1 pc/pcs
• Material: PP polypropylene
• Color: Black, powder-coated
• Dimensions: Width: 30.0 cm, Depth: 28.6 cm, Height: 51.8 cm
• Weight: 10.20 kg
• Cable construction: 3 x 0.75 mm² H05VV-F
• Cable length: 1.8 m detachable
