Omnitronic AZX-212A 2-way Top active 250W

• 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
• Balanced signal input XLR/6.3 mm jack, switchable mic/line
• HF adjustment -4 dB, -2 dB, 0 dB
• Dual flange
• With rigging points

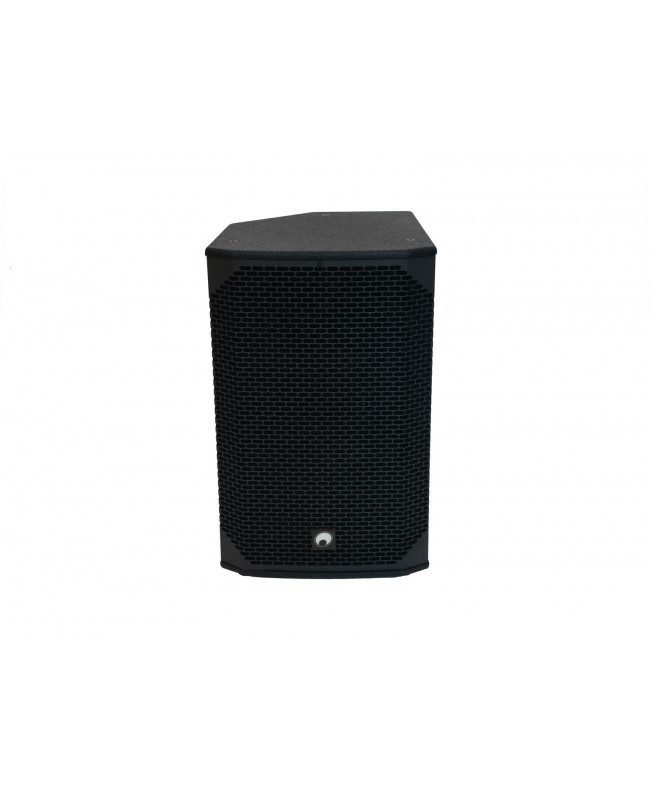

• Black metal grille with acoustic foam
• Rugged carrying handle
• Application possibility: Standing; suspended; monitoring; on stand
• For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; rental

Scope of delivery

• 1 x user manual
• 1 x power cord
• 1 x compact cabinet speaker

• Power supply: 230 V AC, 50 Hz
• Power consumption: 650 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Power: Rated: 200W RMS LF, Rated: 50W RMS HF
• Frequency range: 55 - 20000 Hz
• Sensitivity: 95 dB (1W/1m)
• Attachment system: Dual flange: Ø 35mm (0° / 5°)
• Flying points: 7 x M10 thread
• Circuitry: Class D Biamp

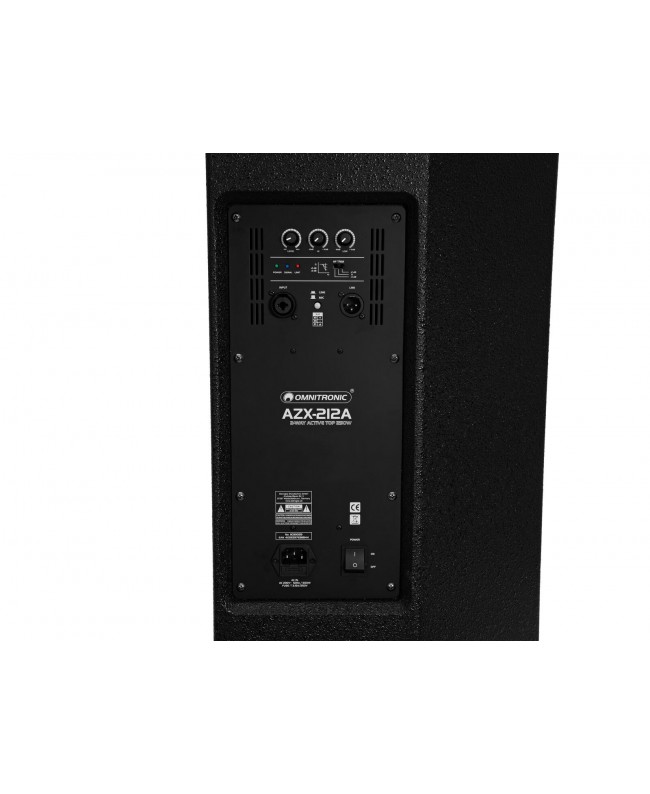

• Control elements: Power switch, Input sensitivity switch, tone control, level control
• Controls: Limiter
• Status LED: Limit, power, signal
• Connections: Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 1 x 3-pin XLR
• Input channels: 1 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial
• Equalizer: Master: 1 x 2-band tone control
• Speaker: Woofer 12 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 2, Voice coil compression tweeter highs 1.35
• Type of speaker: Compact cabinet speaker
• Carrying handle: 1 pc/pcs
• Material: MDF (medium density fiberboard), 15 mm
• Color: Black, textured coating, painted
• Dimensions: Width: 37 cm, Depth: 35.2 cm, Height: 62.2 cm
• Weight: 19.15 kg
