DAP NRG-15SA Active Subwoofers

DAP NRG-15SA

€573.00
Tax included

15” active bass reflex subwoofer

Qty

In Stock

Delivery

Do You want Your order by Thursday, 28/08/2025? Order within 3 hours and 6 minutes

Free shipping

Compare

wishlist

DAP NRG-15SA



The DAP NRG-12SA is an active subwoofer with a peak power output of 1000 watts (500 watts RMS continuous). It uses a 12“ woofer with a dual 2.5” voice coil to deliver bass down to 50 hertz (-6 dB). It is powerful enough to comfortably produce up to 120 dB. It features an internal DSP with 4 useful modes for integration with a full-range NRG speaker or a customizable crossover frequency. The internal Class D amplifier features a switch mode power supply to reduce weight and increase efficiency. The internal DSP also provides overload, short circuit, and thermal protection. Two XLR combo jacks accept the audio signal, which is looped to the two XLR outputs to drive a full-range speaker or additional subwoofer.

The sturdy, lightweight plywood enclosure features an M20 threaded insert for mounting a speaker stand. To get the most out of the NRG-12SA, we recommend using it in combination with a full-range speaker from the NRG series.

  • 500 W RMS, 1000 W peak, max SPL of 120 dB at 1 m
  • Frequency range 50 - 170 Hz

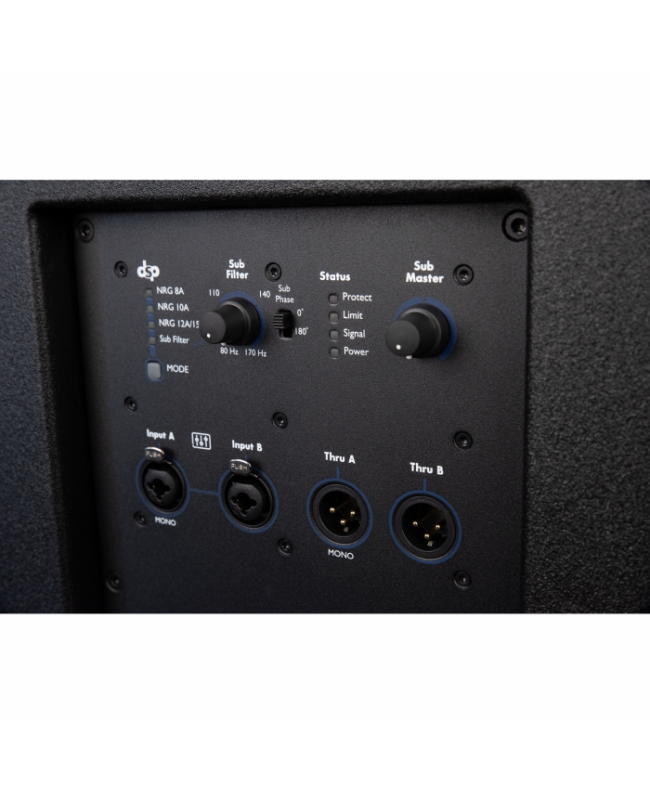

  • Internal DSP with 4 modes
  • Easy integration with active full-range loudspeaker from the NRG series
  • Lightweight (20.3 kg)

Technical

Output

  • RMS output power of the amplifier 500 W
  • Peak power of the amplifier 1000 W
  • Output Main 2
  • Connections of the main outputs 3-pin XLR plugs

Input

  • Mono inputs 2
  • Connection of the mono inputs 3-pin XLR plugs

Audio

  • THD level < 0.3%
  • Signal-to-noise ratio > 95 dB
  • Sampling frequency of the AD/DA converter 48 kHz
  • Audio latency 1.2 ms
  • Amplifier class Class D
  • Speaker type Subwoofer
  • Speaker sensitivity (1 W/1 m) 94 dB
  • Maximum sound pressure level at 1 m 120 dB
  • Frequency response (-6 dB) minimum 50 Hz
  • Frequency response (-6 dB) maximum 170 Hz
  • Woofer diameter 12 “
  • Woofer coil 2.5 ”
  • Woofer magnet type Ferrite
  • Horizontal dispersion angle subwoofer 360 °
  • Vertical dispersion angle subwoofer 180°

Internal volume

  • User presets Yes
  • User-defined presets 4
  • Connections and electrical characteristics
  • Power supply 100–240 V AC 50/60 Hz
  • Power consumption 350 W
  • Power input connection Power Pro Blue

Mechanical characteristics

  • Height (mm) 525 mm (20.669″)
  • Width (mm) 380 mm (14.961″)
  • Depth (mm) 460 mm (18.11″)
  • Material Plywood
  • Color Black
  • Weight 20.3 kg (44.754 lb)
  • IP protection IP20 (for indoor use only)

Product

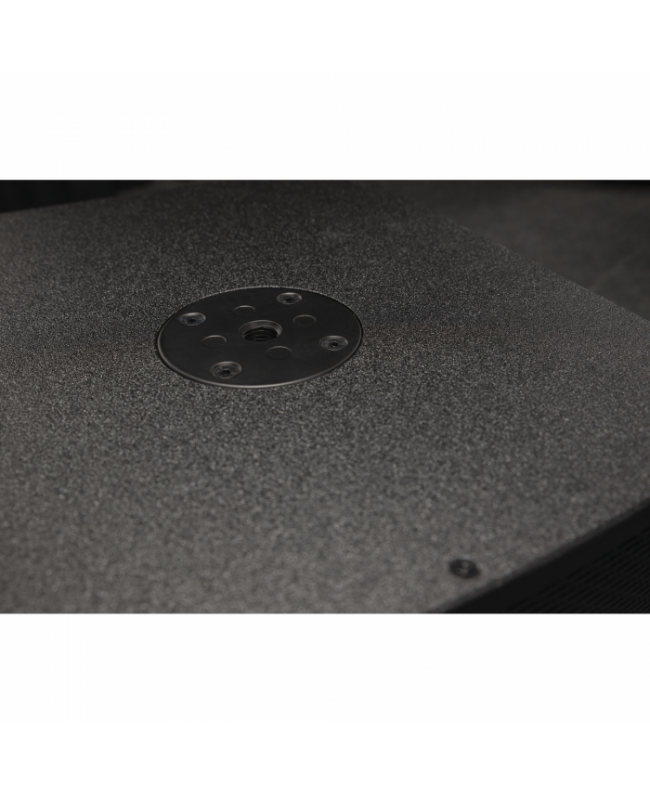

  • Tripod mount M20
  • LED indicators DSP mode, limit, power, protection, signal
  • Speaker handles Left side, right side

Thermal characteristics

  • Maximum ambient temperature 40 °C (104 °F)
  • Maximum surface temperature 50 °C (122 °F)

Included parts

  • Included cables Power Pro cable

D3658

Data sheet

Woofer inch
15"
Giorni di elaborazione
3

Specific References
