DAP NRG-18SA Active Subwoofers
  • -35%

DAP NRG-18SA

€957.00
€627.00 -35%
Tax included
Lowest price within the last 30 days: €627.00

18” active bass reflex subwoofer

Out of Stock

Free shipping

Compare

wishlist

DAP NRG-18SA



  • 500 W RMS, 1000 W peak, max SPL of 122 dB at 1 m
  • Frequency range 45 - 170 Hz
  • Internal DSP with 4 modes
  • Easy integration with active full-range speaker from the NRG series
  • Lightweight (33.3 kg)

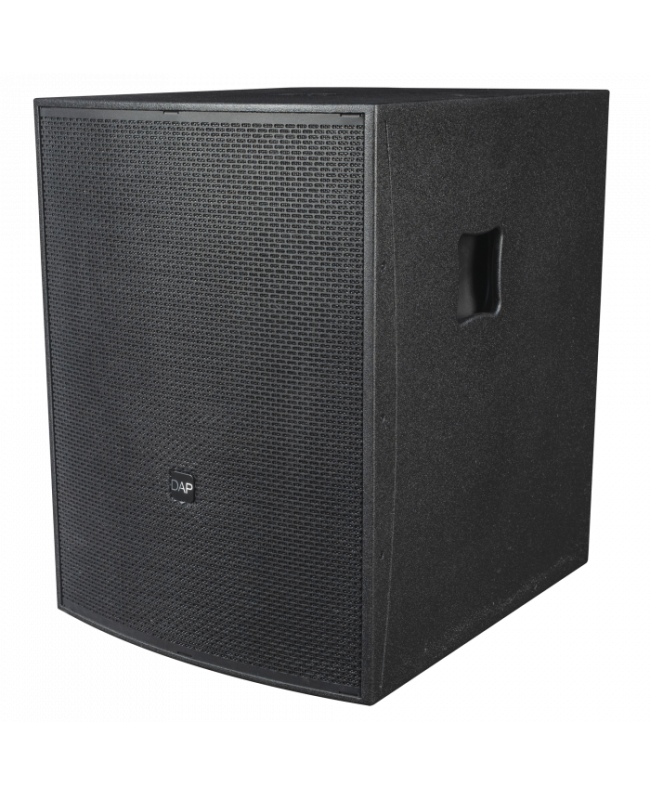

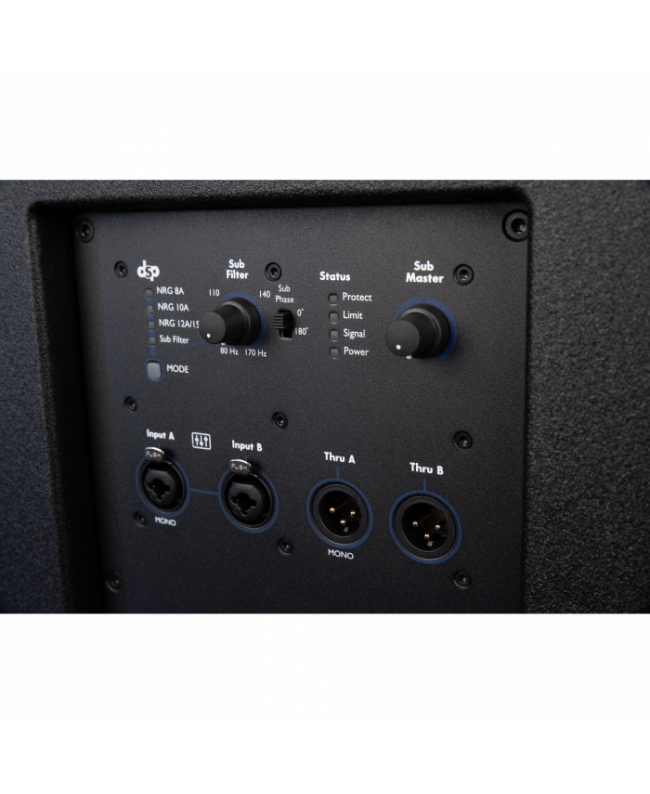

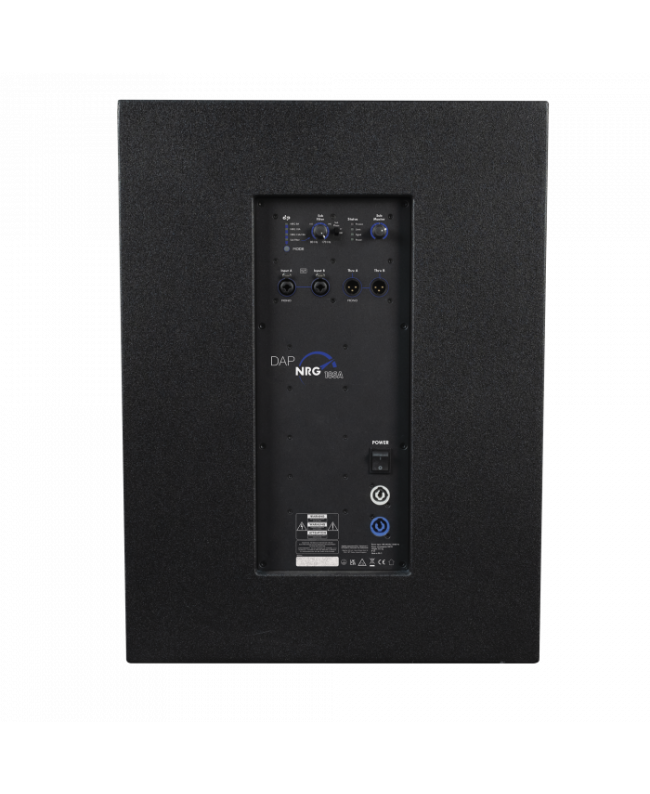

The DAP NRG-18SA is an active subwoofer with a peak power of 1000 watts (500 watts RMS continuous). It uses an 18“ woofer with a dual 3” voice coil to deliver bass down to 45 hertz (-6 dB). It is powerful enough to comfortably produce up to 122 dB. It features an internal DSP with 4 useful modes for integration with a full-range NRG loudspeaker or a customizable crossover frequency. The internal Class D amplifier features a switch-mode power supply to reduce weight and increase efficiency. The internal DSP also provides overload, short-circuit, and thermal protection. Two XLR combo jacks accept the audio signal, which is looped to the two XLR outputs to drive a full-range speaker or additional subwoofer.

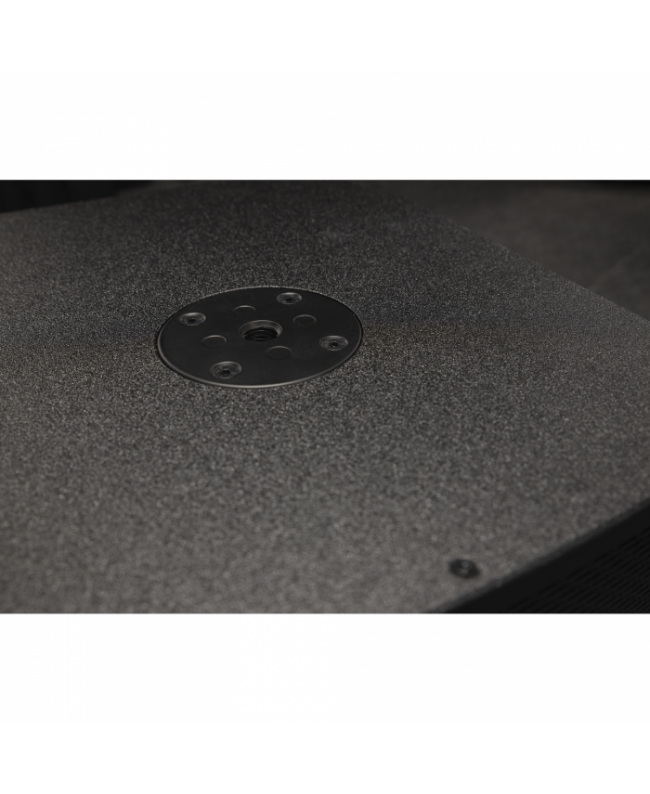

The sturdy, lightweight plywood enclosure features an M20 threaded insert for mounting a speaker stand. To get the most out of the NRG-18SA, we recommend using it in combination with a full-range speaker from the NRG series.

Technical

Output

  • RMS output power of the amplifier 500 W
  • Peak power of the amplifier 1000 W
  • Output Main 2
  • Connections of the main outputs 3-pin XLR plugs

Input

  • Mono inputs 2
  • Connection of the mono inputs 3-pin XLR plugs

Audio

  • THD level < 0.3%
  • Signal-to-noise ratio > 95 dB
  • Sampling frequency of the AD/DA converter 48 kHz
  • Audio latency 1.2 ms
  • Amplifier class Class D
  • Speaker type Subwoofer
  • Speaker sensitivity (1 W/1 m) 94 dB
  • Maximum sound pressure level at 1 m 120 dB
  • Frequency response (-6 dB) minimum 50 Hz
  • Frequency response (-6 dB) maximum 170 Hz
  • Woofer diameter 12 “
  • Woofer coil 2.5 ”
  • Woofer magnet type Ferrite
  • Horizontal dispersion angle subwoofer 360 °
  • Vertical dispersion angle subwoofer 180°

Internal volume

  • User presets Yes
  • User-defined presets 4
  • Connections and electrical characteristics
  • Power supply 100–240 V AC 50/60 Hz
  • Power consumption 350 W
  • Power input connection Power Pro Blue

Mechanical characteristics

  • Height (mm) 525 mm (20.669″)
  • Width (mm) 380 mm (14.961″)
  • Depth (mm) 460 mm (18.11″)
  • Material Plywood
  • Color Black
  • Weight 20.3 kg (44.754 lb)
  • IP protection IP20 (for indoor use only)

Product

  • Tripod mount M20
  • LED indicators DSP mode, limit, power, protection, signal
  • Speaker handles Left side, right side

Thermal characteristics

  • Maximum ambient temperature 40 °C (104 °F)
  • Maximum surface temperature 50 °C (122 °F)

Included parts

  • Included cables Power Pro cable

D3659
