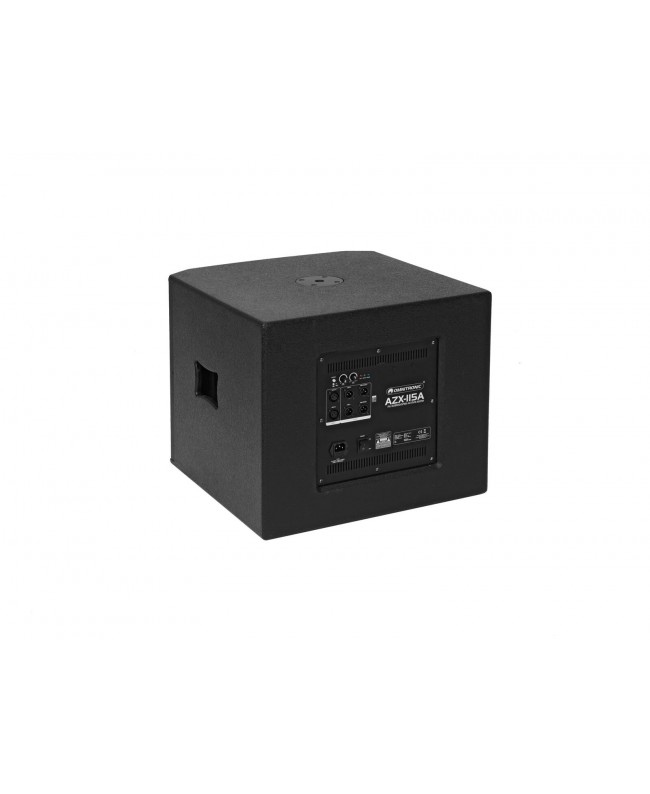

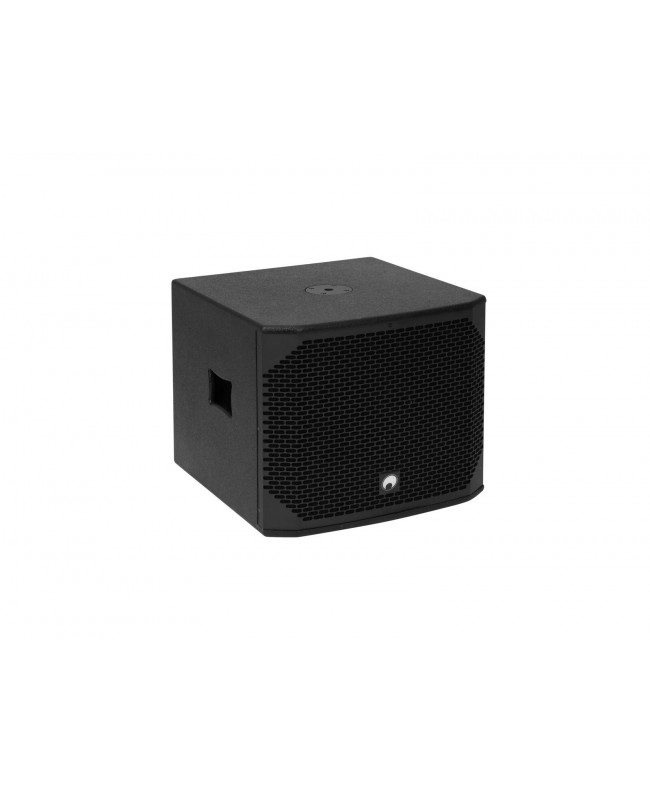

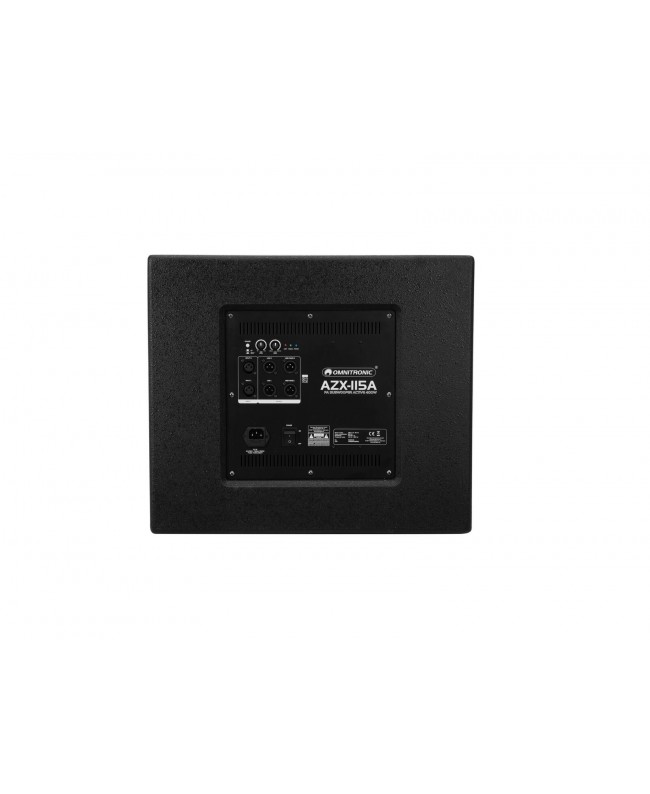

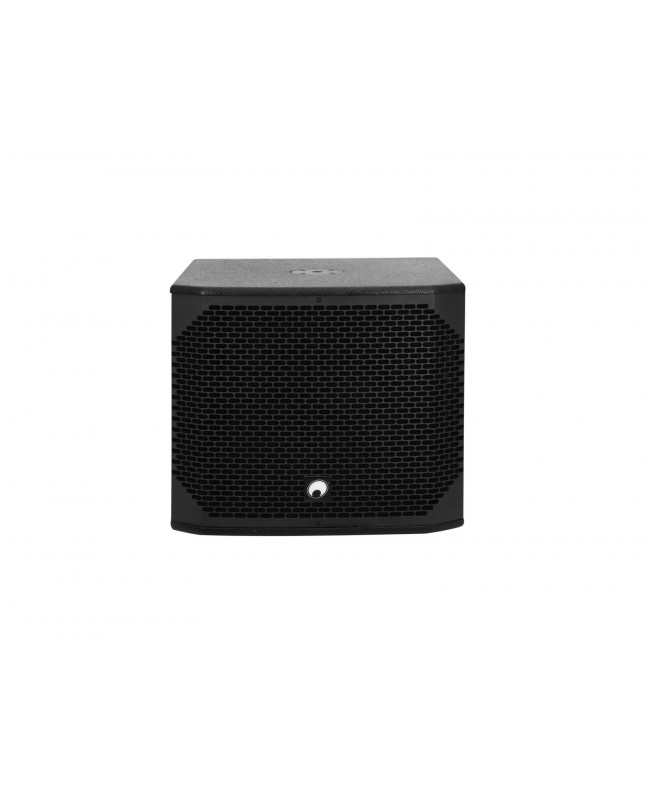

Omnitronic AZX-115A PA Subwoofer active 400W

• 38 cm (15) bass speaker with 63 mm voice coil
• Class D amplifier with 400 W
• XLR inputs and parallel outputs L/R
• XLR output L/R with high-pass filter
• Adjustable crossover frequency 80-200 Hz
• Black metal grille with acoustic foam
• Rugged carrying handle
• For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; rental

Scope of delivery

• 1 x bass
• 1 x user manual
• 1 x power cord

• Power supply: 230 V AC, 50 Hz
• Power consumption: 650 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 3.15 A fuse replaceable
• Power: Rated: 400W RMS
• Frequency range: 40 - 250 Hz
• Sensitivity: 94 dB (1W/1m)
• Attachment system: M20 thread
• Circuitry: Class D
• Control elements: Phase reversal switch
• Controls: Limiter
• Status LED: Limit, power, signal
• Connections: Input: line via 2 x 3-pin XLR, Output: line via 2 x 3-pin XLR, Output: high-pass via 2 x 3-pin XLR
• Crossover frequency: 80-200 Hz
• Speaker: 1 x woofer 15, Basket material: steel, Voice coil lows 2.5
• Type of speaker: Subwoofer
• Type of construction: Vented
• Carrying handle: 1 pc/pcs
• Material: MDF (medium density fiberboard), 15 mm
• Color: Black, textured coating, painted
• Dimensions: Width: 53 cm, Depth: 55 cm, Height: 47 cm
• Weight: 26.15 kg
