PSSO KX-181A Subwoofer, active, DSP

• Active PA subwoofer for touring applications and permanent installations
• Versatile setup options with the KX top speakers and specially tuned presets
• Endfire and cardioid array configurations possible
• Digital signal processor
• DSP presets: 80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz
• The device is cooled by temperature-controlled fan

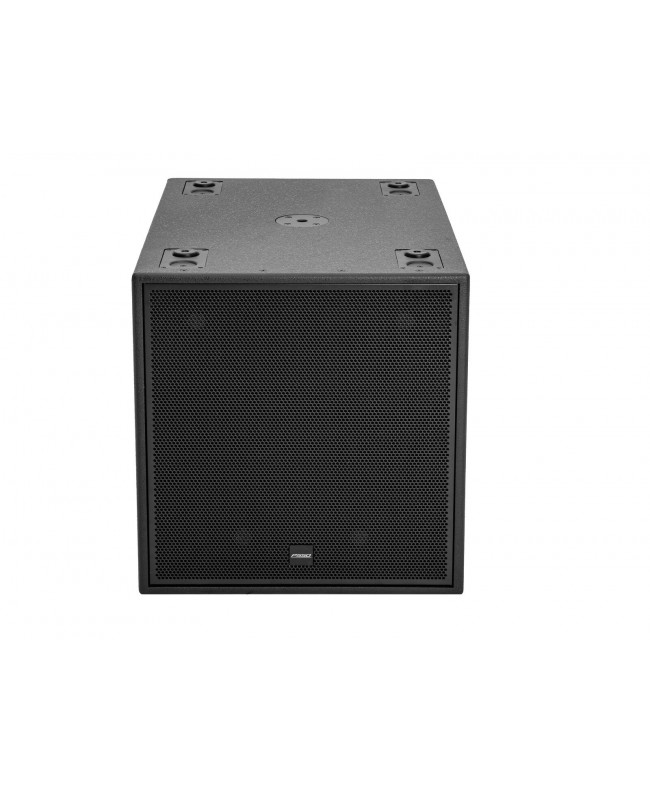

• Black metal grille with acoustic foam
• 4 Rugged carrying handles
• Mains input and output for power linking up to 4 units

Scope of delivery

• 1 x bass
• 1 x power cord
• 1 x user manual

• Power supply: 230 V AC, 50 Hz
• Power consumption: 1800 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Power output: 1 x P-Con (gray), mounting version
• Device fuse: 5 x 20 mm, F 8 A fuse replaceable
• Power: 1400W RMS, Peak: 2800W
• Frequency range: 30 - 400 Hz
• Max. SPL: 134 dB
• DSP: Digital signal processor
• DSP presets: 80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz
• Cooling: 1 x temperature-controlled fan
• Attachment system: M20 thread
• Circuitry: Class D

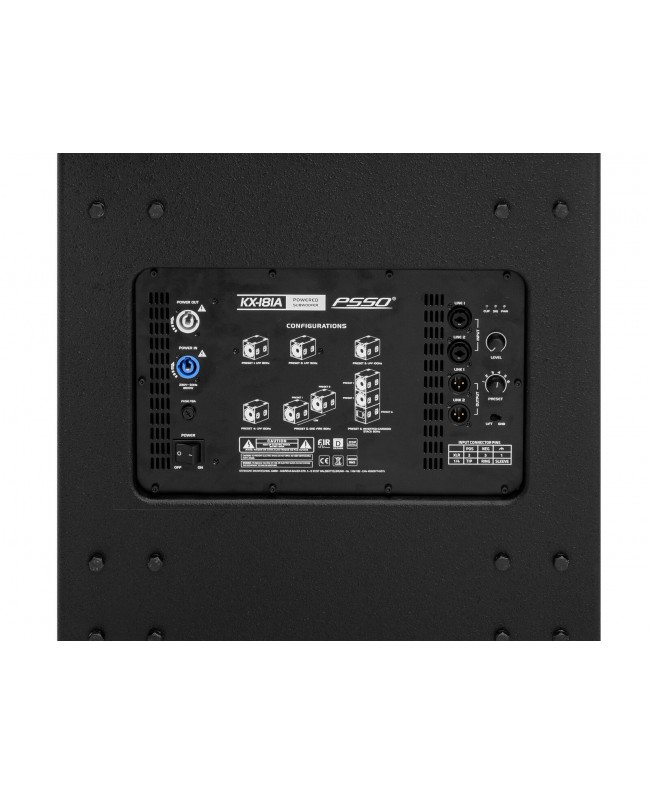

• Control elements: Power switch, groundlift selector, level control, DSP preset switch
• Controls: Overheat; short-circuit; DC voltage; limiter
• Status LED: Power, signal, clip
• Connections: Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 2 x 3-pin XLR (M) mounting version
• Speaker: 1 x woofer 18 with ferrit magnet, Basket material: aluminum, Conematerial: cardboard/paper, Voice coil woofer in/out wound 4
• Type of speaker: Subwoofer
• Type of construction: Vented
• Carrying handle: 4 pc/pcs
• Material: Baltic birch plywood, 18 mm
• Color: Black, matte
• Dimensions: Width: 56 cm, Depth: 76 cm, Height: 62.8 cm
• Weight: 53.25 kg
• Cable construction: 3 x 1.5 mm² H05VV-F
• Cable length: 2.5 m detachable
