Omnitronic MTC-3204DSP 4-channel Amplifier with DSP Amplifiers
  • New

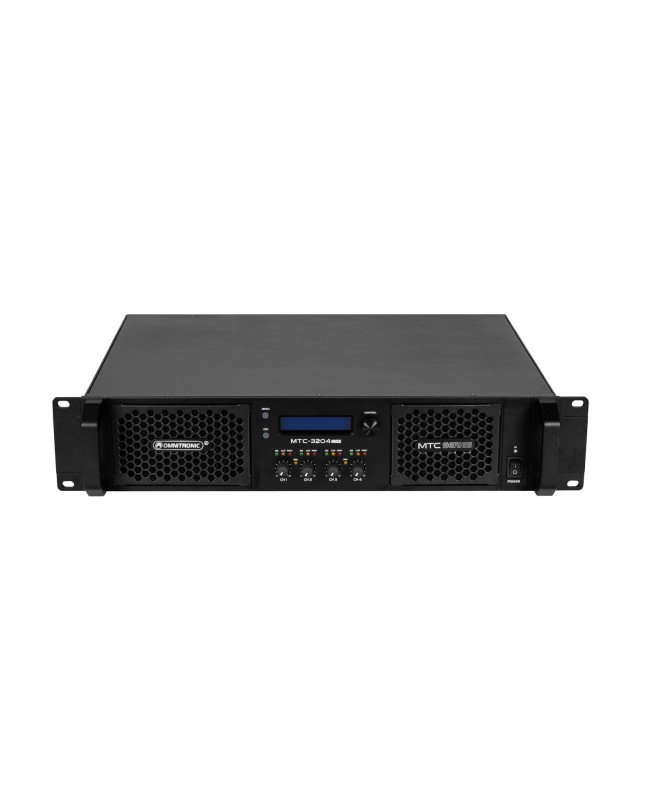

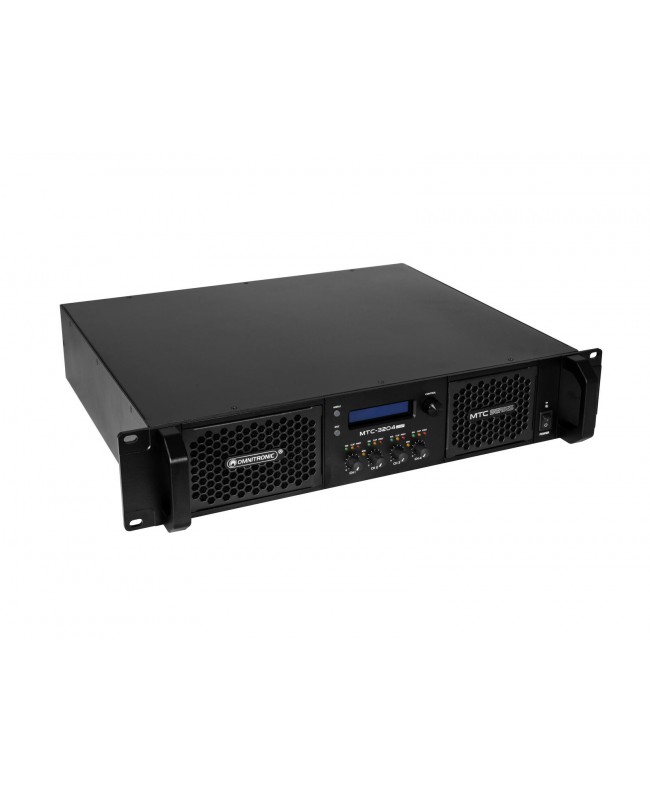

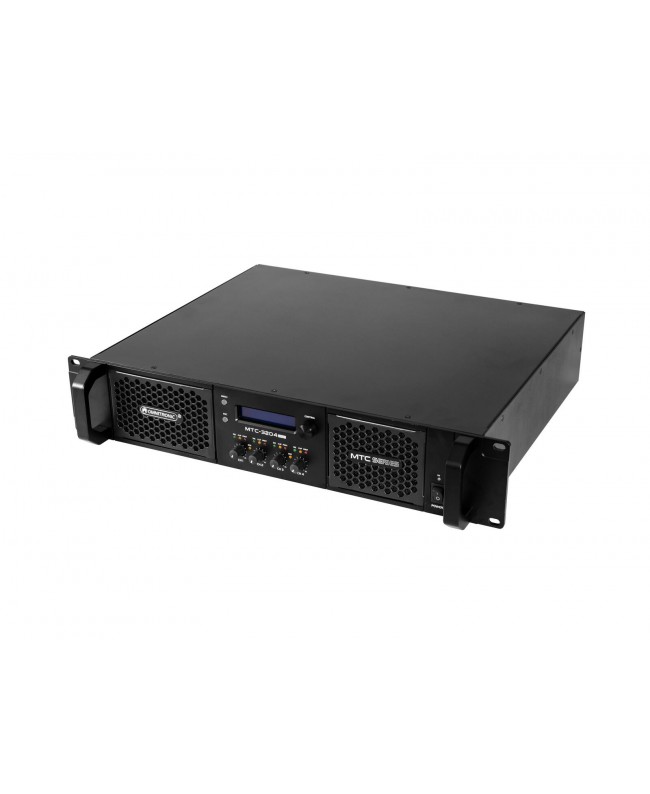

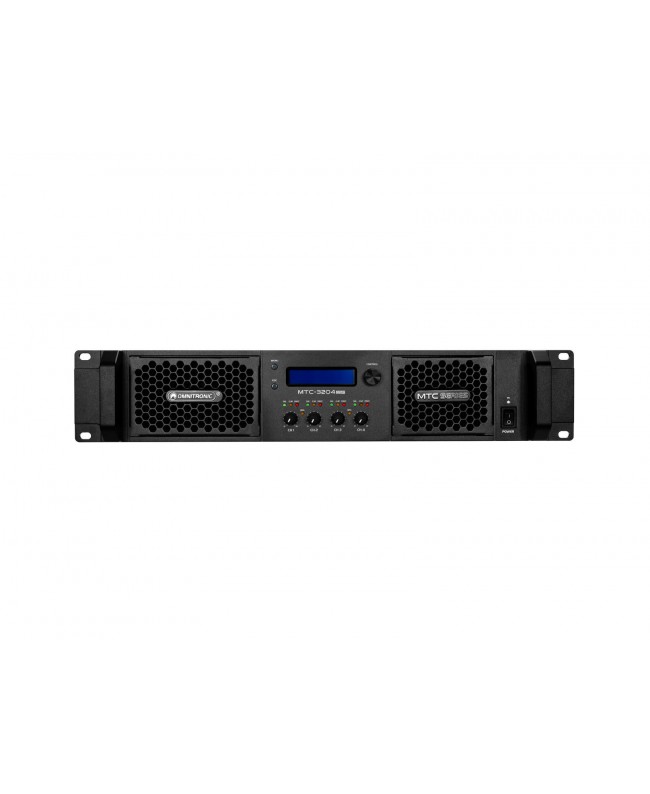

Omnitronic MTC-3204DSP 4-channel Amplifier with DSP

€590.00
Tax included

4-Channel PA amplifier with DSP and SMPS, 4 x 800 W, 4 x 400 W

Qty

Available upon request

Free shipping

Compare

wishlist

Omnitronic MTC-3204DSP 4-channel Amplifier with DSP



  • Efficient Class D technology
  • Full configuration and real-time network communication via the built-in Ethernet interface
  • The intelligent software for allows convenient control with a computer
  • Presets are easy to store, transfer and manage
  • Up to 100 user presets storable in the device via software
  • Sample rate: 96 kHz
  • 2 operating modes can be selected (stereo or bridge/100V)
  • Extremely low weight and height due to integrated switch mode power supply
  • Level control per channel
  • 10-band parametric EQ per input and output
  • Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass, Band Pass, High Pass, Low Pass
  • Additionally up to 48 dB/octave for all outputs with Linkwitz-Riley filter
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • 2 Ethernet ports for easy wiring
  • (19) 48.3 cm rack installation 2 U
  • Digital signal processor FIR Filter
  • Highly efficient air flow from front to rear
  • The device is cooled by temperature-controlled fan
  • LCD display
  • The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
    firmware can be updated
  • Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better
  • For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms

Scope of delivery

  • 1 x amplifier
  • 1 x power cord
  • 1 x user manual
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 600 W 1/8 power
  • Protection class: Protection class I
  • Output power: 4 x 800 W RMS (4 ohms), 4 x 400 W RMS (8 ohms), 2 x 1500 W RMS bridged (8 ohms), 4 x 200 W RMS (100 V), 2 x 1500 W RMS bridged (100 V)
  • Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
  • Cable length: 1.2 m detachable
  • Frequency range: 20 - 20000 Hz
  • S/N ratio: 119 dB
  • THD: 0.05 % at 1 kHz
  • Network connection: Protocol: Ethernet TCP/IP via 2x RJ-45 (F) mounting version
  • DSP: Digital signal processor FIR Filter
  • Cooling: 1 x temperature-controlled fan , air flow from front to rear
  • Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
  • Gain: 28.2 dB, Bridged 34.2 dB
  • Filter: Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct; 48db/Okt
  • Delay: Input: 0 - 10 ms, Output: 0 - 10 ms
  • Housing color: Black
  • Sample rate: 96 kHz
  • Circuitry: Class D
  • Damping factor: 350
  • Display type: LCD display
  • Control elements: Power switch, encoder, level control per channel, mode switch (stereo / bridged/100V), menu
  • Controls: Softstart; overheat; overload; short-circuit; DC voltage
  • Status LED: Power, signal, clip, bridged, protect

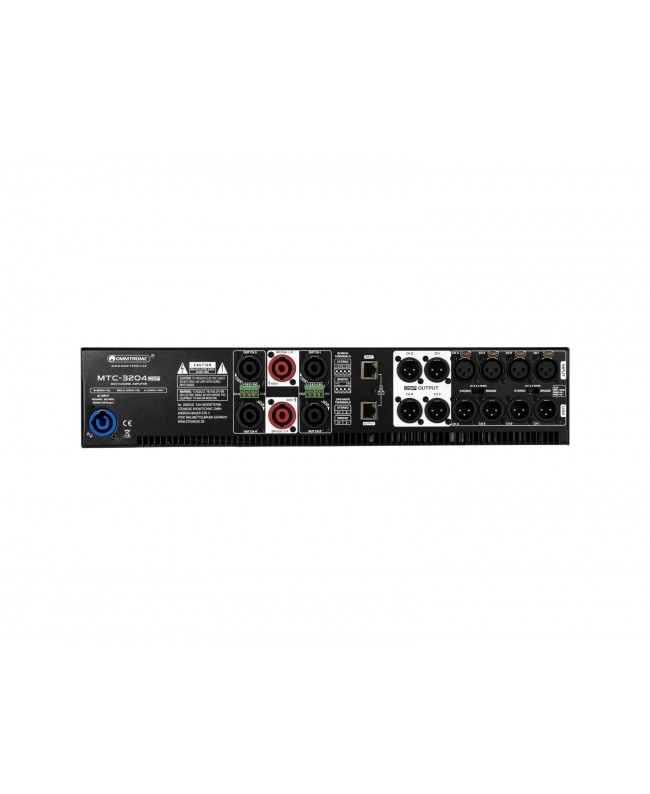

  • Connections: Input: line via 4 x 3-pin XLR, Link: line via 4 x 3-pin XLR, Output: DSP via 4 x 3-pin XLR (F) mounting version, Output: speaker via screw plug-in terminal, Output: 4 x speaker built-in socket (F), Output: speaker (bridge) via 2 x speaker built-in socket (F), 2 x RJ-45 (F) mounting version
  • PC connect: DXO Software via RJ-45 (F) mounting version, firmware can be updated
  • Housing design: (19) 48.3 cm rack installation 2 U
  • Dimensions: Width: 48.3 cm, Depth: 40.8 cm, Height: 8.8 cm
  • Weight: 7.60 kg
  • Operating system: Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better

10452431

Data sheet

Length
1.20 m
Color
Schwarz
