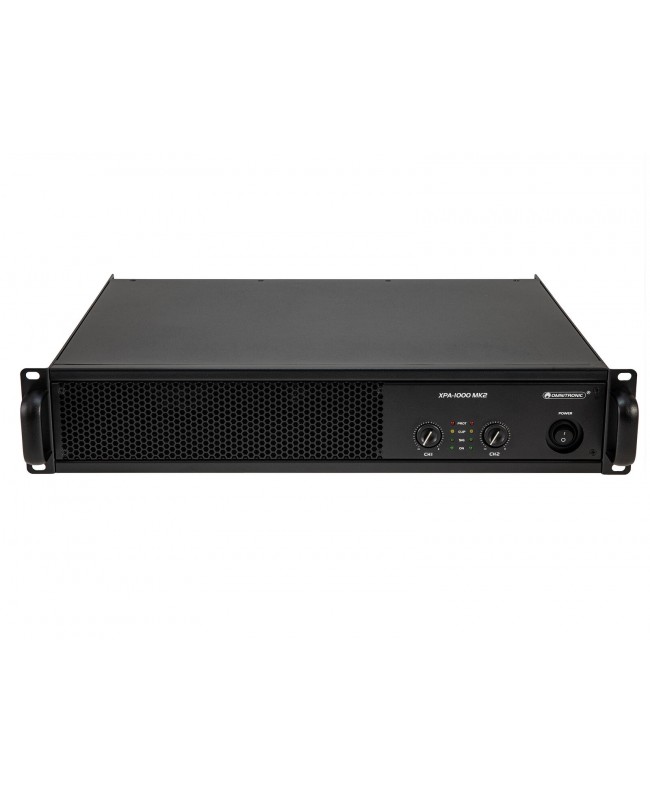

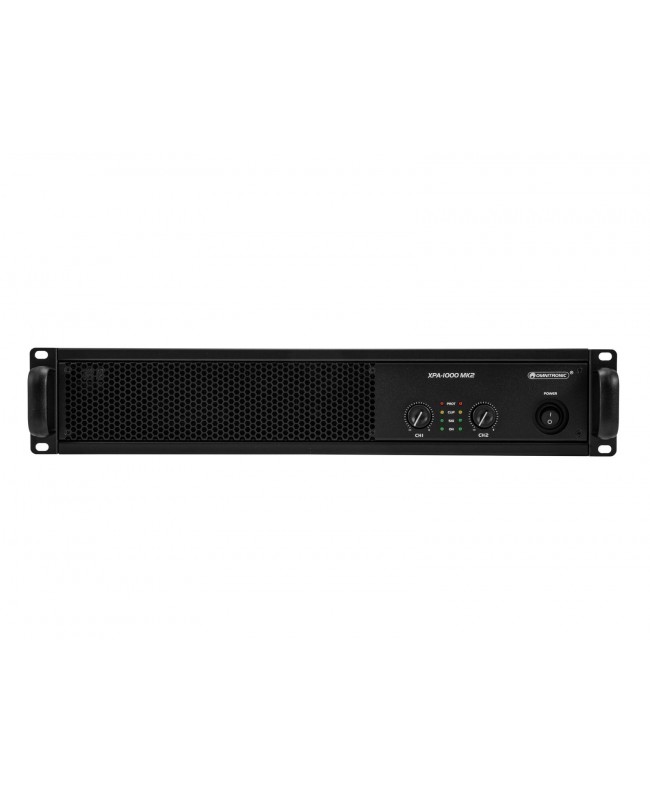

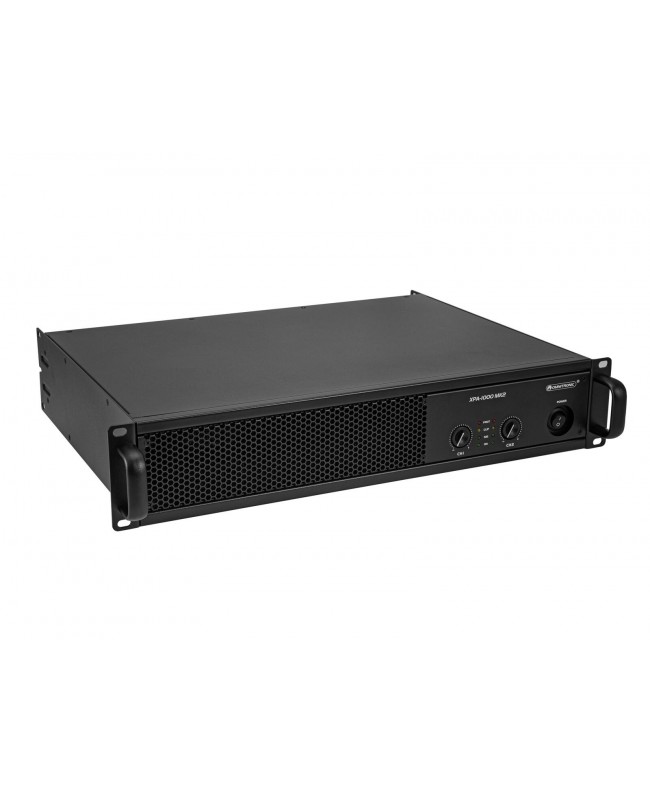

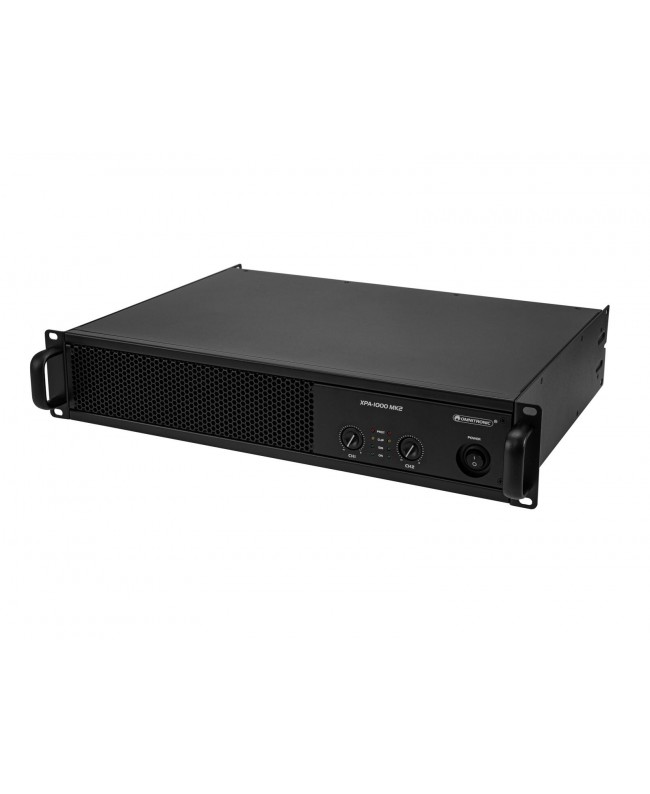

Omnitronic XPA-1000 MK2 Amplifier

Scope of delivery

• 1 x amplifier
• 1 x power cord
• 1 x user manual
• 4 x foot

• Power supply: 230 V AC, 50 Hz
• Power consumption: 710 W 1/8 power
• IP classification: IP20
• Protection class: Protection class I
• Output power: 2 x 500 W RMS (4 ohms), 2 x 300 W RMS (8 ohms), 1000 W RMS bridged (8 ohms)
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
• Device fuse: 5 x 20 mm, F 8 A fuse serviceable
• Frequency range: 20 - 20000 Hz
• S/N ratio: 95 dB
• THD: 0.05 % at 1 kHz
• Cooling: 2 x temperature-controlled fan , air flow from front to rear
• Impedance: Input: 10 kOhm , unbal., Input: 20 kOhm , bal.
• Housing color: Black
• Circuitry: Class AB
• Slew rate: 20 V/µs
• Damping factor: 200
• Control elements: Power switch, level control per channel, mode switch (stereo/parallel/bridged)
• Controls: Softstart; DC voltage; VHF; short-circuit; limiter; overheat
• Status LED: Power, signal, clip, protect

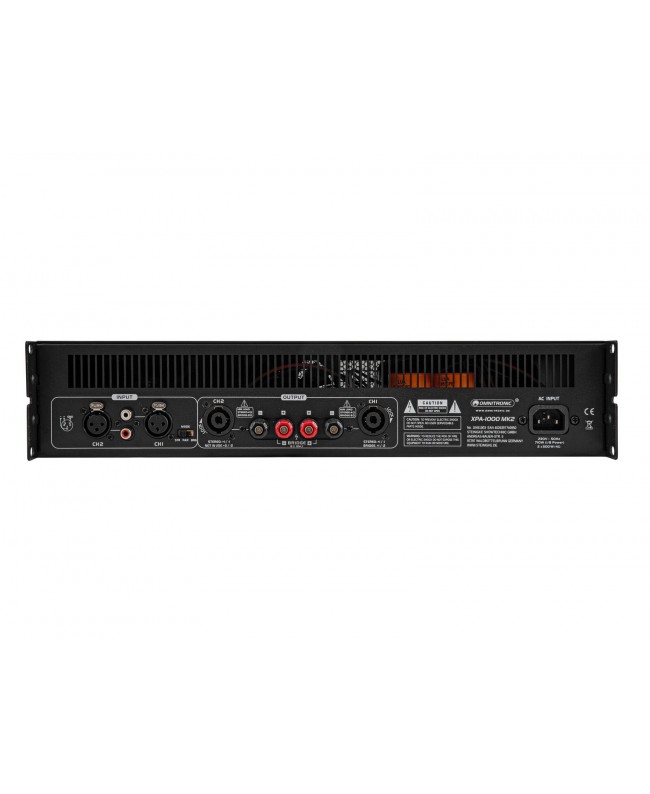

• Connections: Input: line via 2 x 3-pin XLR (F) mounting version, Input: line via stereo RCA, Output: speaker via 2 x speaker built-in socket (F), Output: speaker via screw terminal
• Input sensitivity: 1 V
• Housing design: (19) 48.3 cm rack installation possible 2 U
• Mounting depth: 33.2 cm
• Dimensions: Width: 48.3 cm, Depth: 36.8 cm, Height: 8.8 cm
• Weight: 10.40 kg
