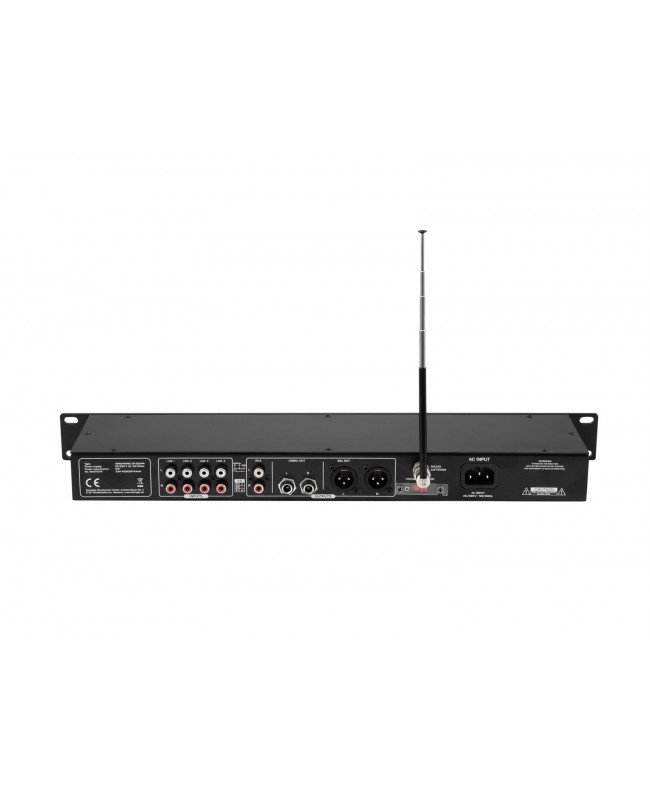

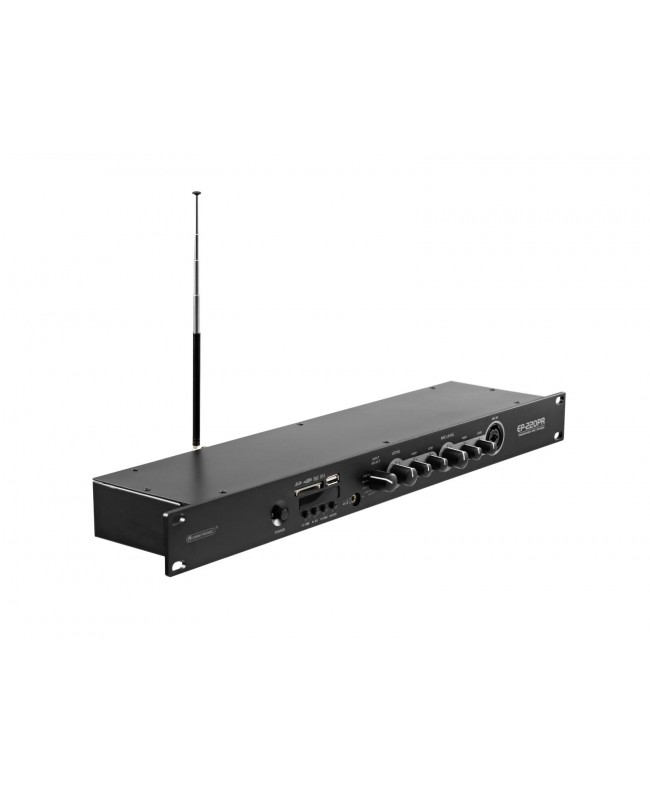

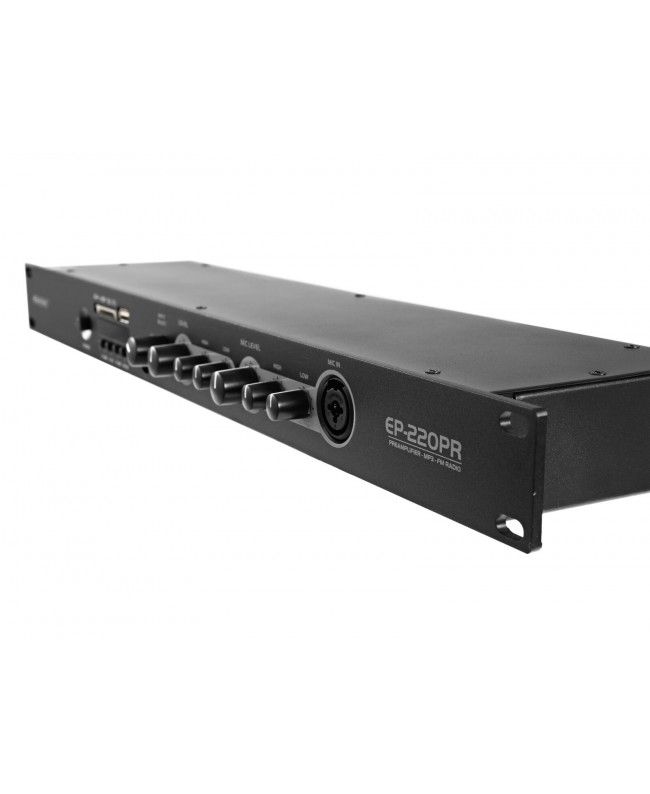

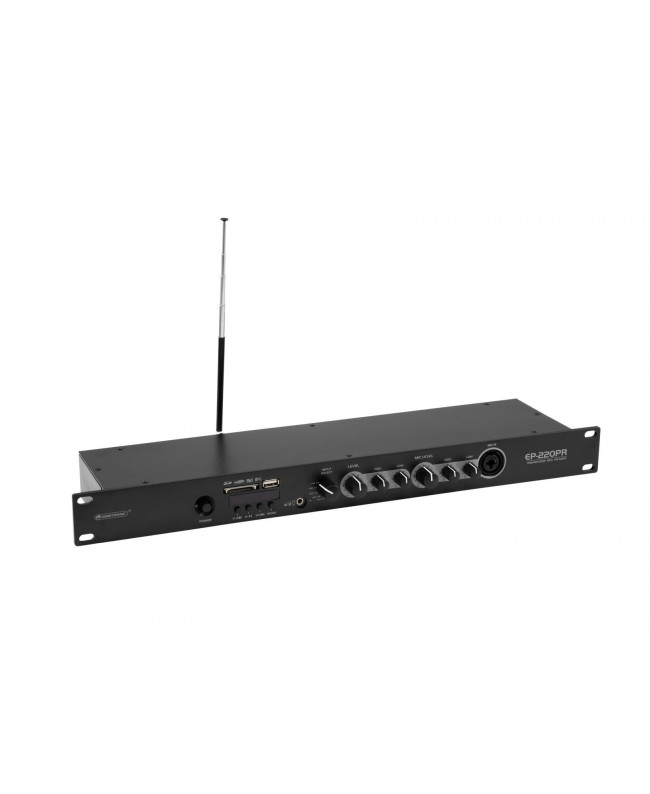

Omnitronic EP-220PR Preamplifier with MP3 Player and FM Radio

Scope of delivery

• 1 x amplifier
• 1 x user manual
• 1 x declaration of conformity
• 1 x power cord
• 1 x antenna

• Power supply: 115/230 V AC, 50/60 Hz
• Power consumption: 5 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 100 dB
• THD: 0.1 % at 1 kHz
• Impedance: Input: 10 kOhm , unbal., Input: 20 kOhm , bal.
• Housing color: Black
• Status LED: Power
• Connections: Input: line via 4 x RCA (F) mounting version, Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x 3.5 mm jack (stereo) mounting version, Output: line via 1 x stereo RCA, Output: line via 1 x 3-pin XLR, Output: line via 1 x 6.3 mm jack socket (stereo) mounting version
• Input channels: 5 x stereo via RCA or jack plug or player, channel control via rotary dial, 1 x mono via XLR or jack, channel control via rotary dial
• Equalizer: Master: 1 x 2-band tone control stereo
• Input sensitivity: 1 V
• Material: Metal
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.3 cm, Depth: 12.8 cm, Height: 4.45 cm
• Weight: 1.87 kg
• Control: Bluetooth
• Bluetooth device name: BLUETOOTH
• Audio player: USB + SD + Bluetooth + FM radio
• Range: Bluetooth: range up to 10m
• Carrier frequency: 2.4 GHz
• Display type: Monochrome 4 digit 7-segment LED display
• Tuner frequency range: FM 87-108 MHz
• Music format: WAV; MP3; WMA
• Available storage media: USB devices/SD cards max. 32GB (FAT 16/32)
