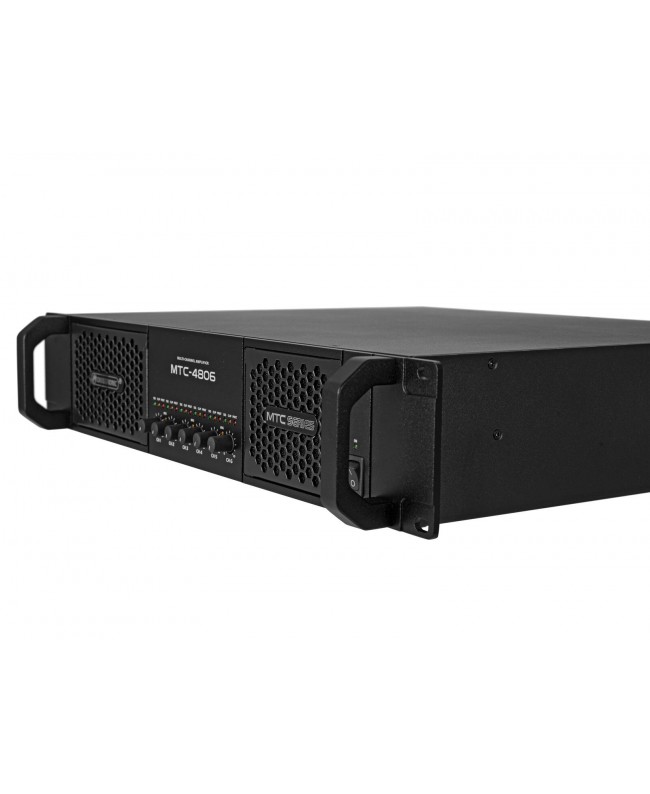

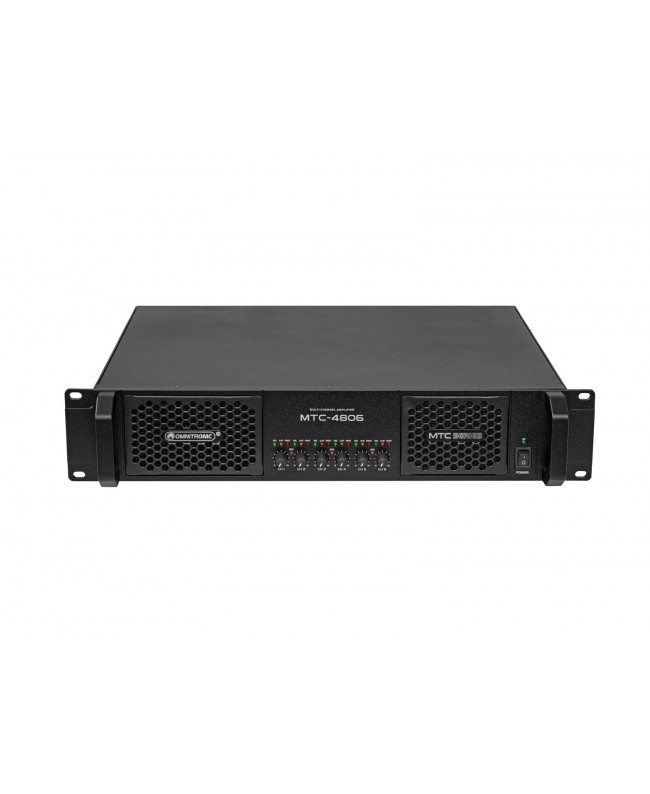

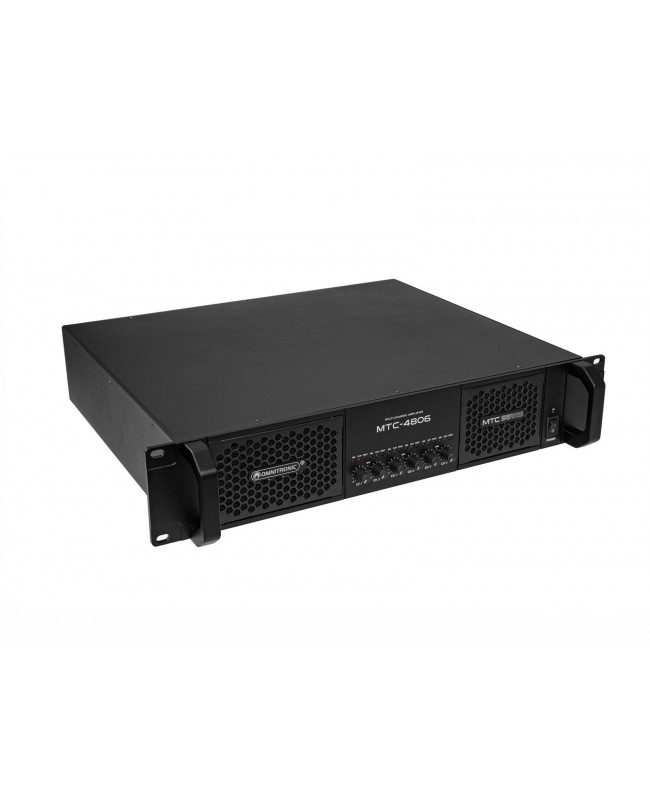

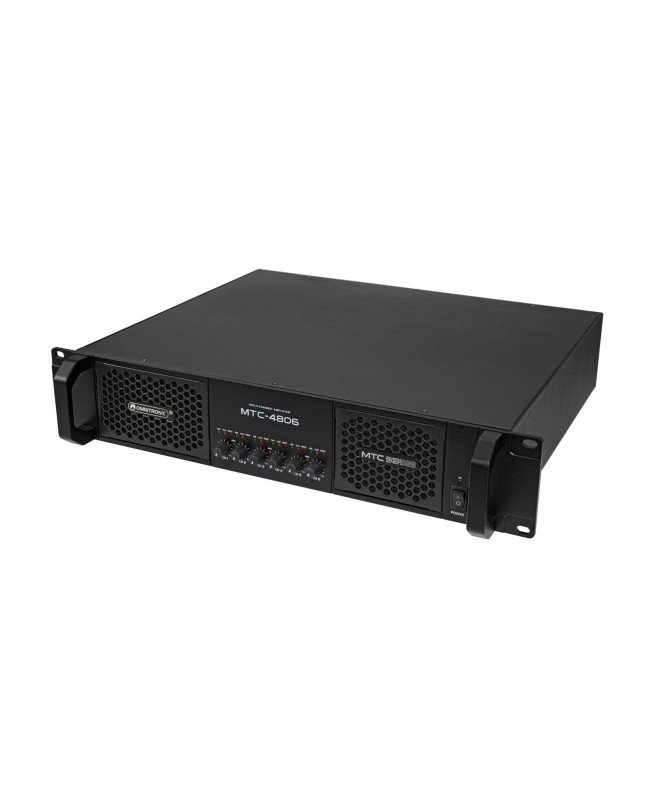

Omnitronic MTC-4806 6-channel Amplifier

Scope of delivery

• 1 x amplifier
• 1 x power cord
• 1 x user manual

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 900 W 1/8 power
• Protection class: Protection class I
• Output power: 6 x 800 W RMS (4 ohms), 6 x 400 W RMS (8 ohms), 3 x 1500 W RMS bridged (8 ohms), 6 x 200 W RMS (100 V), 3 x 1500 W RMS bridged (100 V)
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Cable length: 1 m detachable
• Device fuse: 5 x 20 mm, T 10 A fuse fix on board
• Frequency range: 20 - 20000 Hz
• S/N ratio: 119 dB
• THD: 0.05 % at 1 kHz
• Cooling: 2 x temperature-controlled fan , air flow from front to rear
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Gain: 28.2 dB, Bridged 34.2 dB
• Housing color: Black
• Circuitry: Class D
• Damping factor: 350
• Control elements: Power switch, level control per channel, mode switch (stereo/bridged)
• Controls: Softstart; overheat; overload; short-circuit; DC voltage
• Status LED: Power, signal, clip, bridged, protect

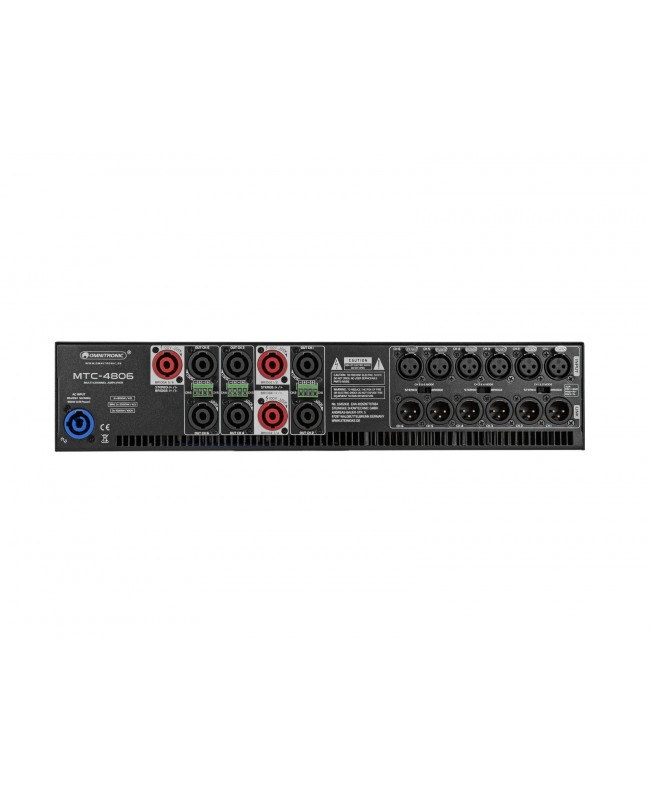

• Connections: Input: line via 6 x 3-pin XLR, Link: line via 6 x 3-pin XLR, Output: speaker via screw plug-in terminal, Output: 6 x speaker built-in socket (F), Output: speaker (bridge) via 3 x speaker built-in socket (F)
• Housing design: (19) 48.3 cm rack installation 2 U
• Dimensions: Width: 48.3 cm, Depth: 40.8 cm, Height: 8.8 cm
• Weight: 8.72 kg
