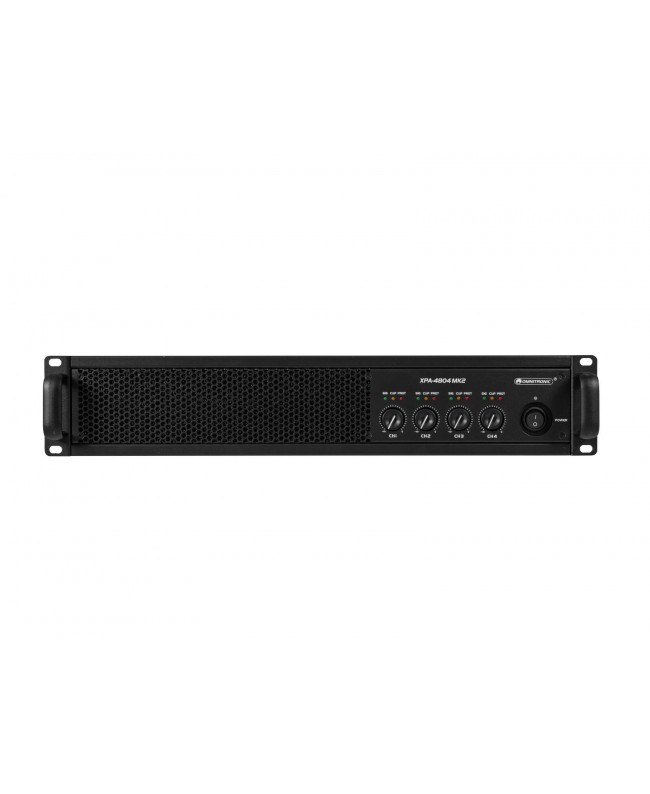

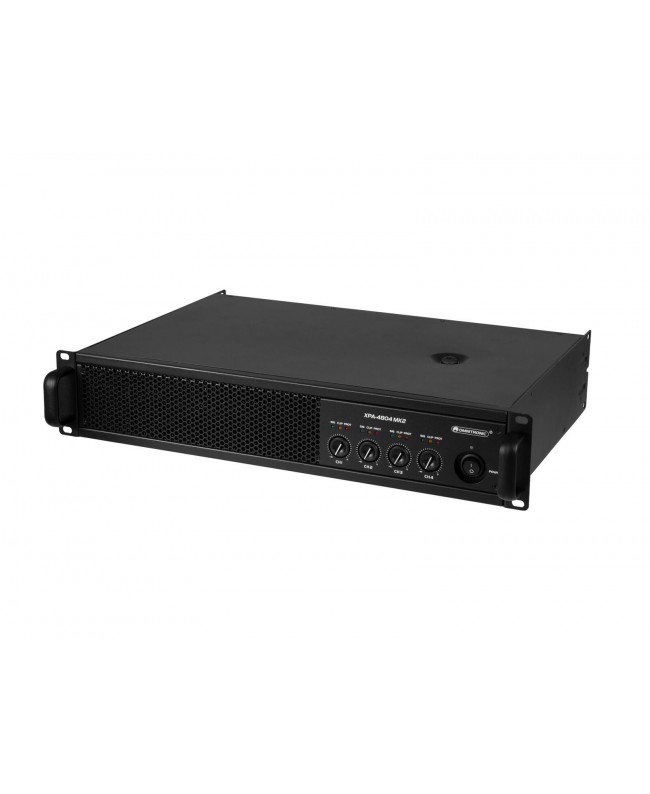

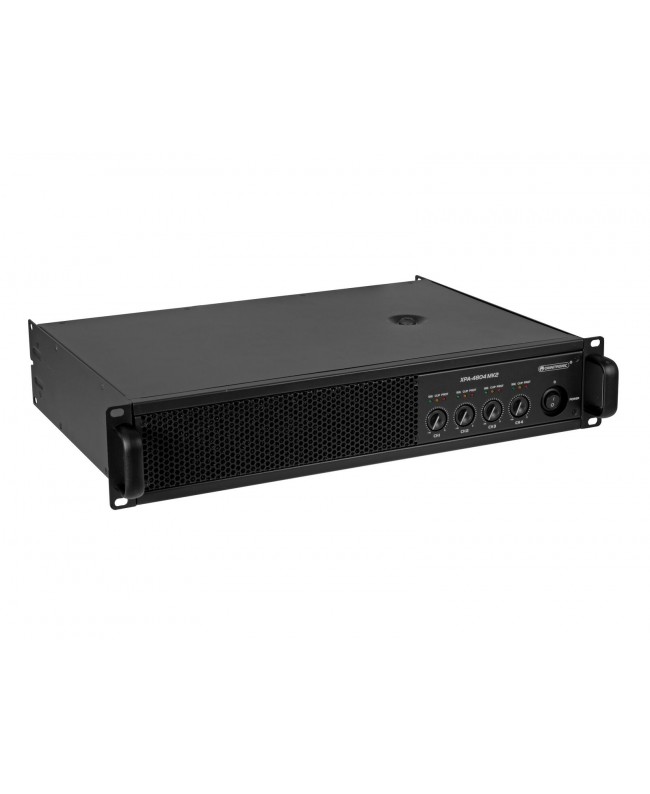

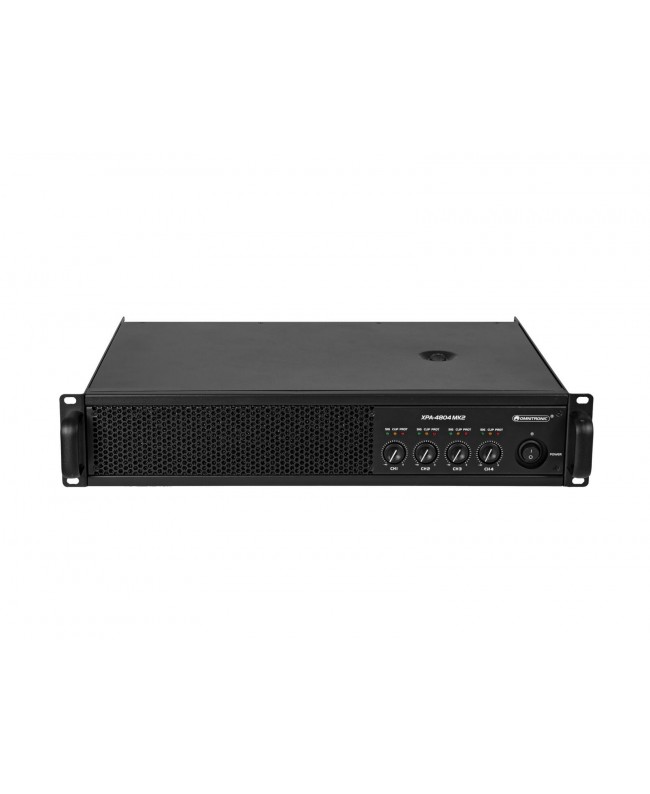

Omnitronic XPA-4804 MK2 Amplifier

Scope of delivery

• 1 x amplifier
• 4 x foot
• 1 x user manual

• Power supply: 230 V AC, 50 Hz
• Power consumption: 1380 W 1/8 power
• Protection class: Protection class I
• Output power: 4 x 1800 W RMS (2 ohms), 4 x 1200 W RMS (4 ohms), 4 x 800 W RMS (8 ohms), 2 x 2500 W RMS bridged (4 ohms), 2 x 2400 W RMS bridged (8 ohms)
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 102 dB
• THD: 0.1 % at 1 kHz
• Cooling: 2 x cooling fan , air flow from front to rear
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Gain: 40 dB/ 0.775 V, 38 dB/ 1 V, 32 dB/ 2 V
• Housing color: Black
• Circuitry: Class D
• Slew rate: 30 V/µs
• Damping factor: 500
• Control elements: Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
• Controls: Overheat; overload; short-circuit; softstart; DC voltage; VHF; current limiting; limiter
• Status LED: Power, signal, clip, protect

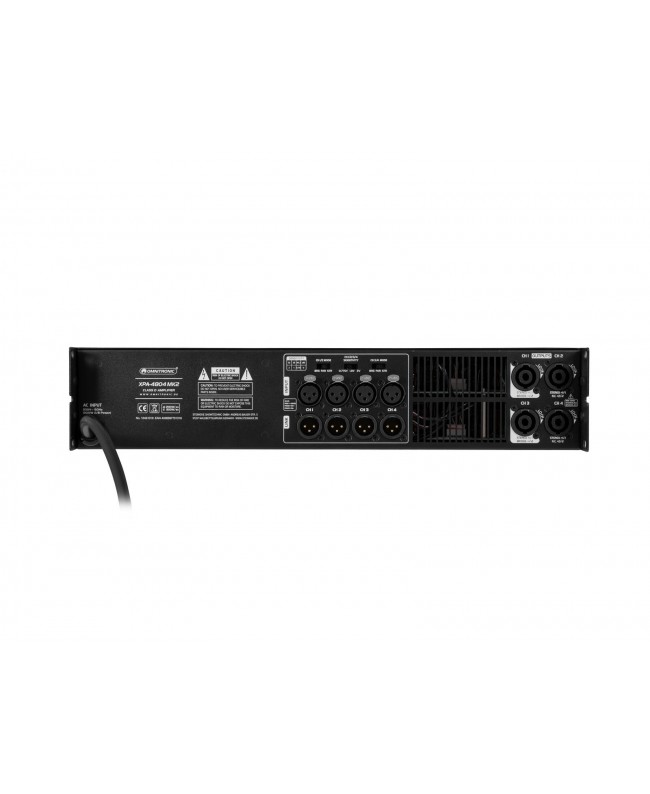

• Connections: Input: line via 4 x 3-pin XLR (F) mounting version, Link: line via 4 x 3-pin XLR (M) mounting version, Output: speaker via 4 x speaker built-in socket (F)
• Input sensitivity: 0.775 V; 1 V; 2 V , switchable
• Housing design: (19) 48.3 cm rack installation 2 U
• Dimensions: Width: 48.3 cm, Depth: 33.0 cm, Height: 8.8 cm
• Weight: 14.20 kg
