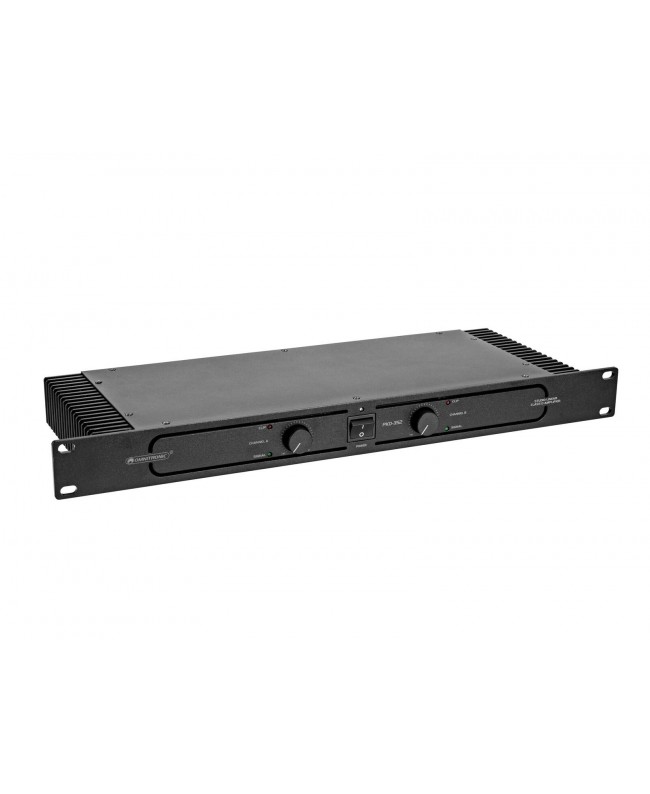

Omnitronic PKD-352 Class D Studio Amplifier

Scope of delivery

• 1 x amplifier
• 1 x power cord
• 1 x user manual

• Power supply: 230 V AC, 50 Hz
• Power consumption: 70 W 1/8 power
• Protection class: Protection class I
• Output power: 2 x 175 W RMS (4 ohms), 2 x 100 W RMS (8 ohms), 350 W RMS bridged (8 ohms)
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Cable length: 1 m detachable
• Frequency range: 20 - 20000 Hz
• S/N ratio: 105 dB
• THD: 0.05 % at 1 kHz
• Cooling: Passive convection cooling
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Gain: 38 dB
• Housing color: Black
• Circuitry: Class D
• Slew rate: 20 V/µs
• Damping factor: 300

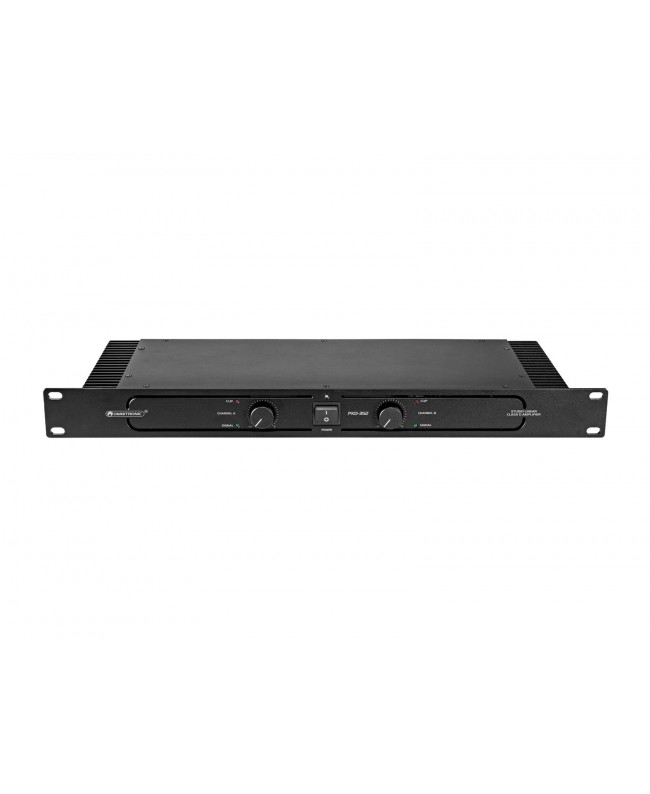

• Control elements: Power switch, level control per channel, mode switch (stereo/bridged), Input sensitivity switch
• Controls: Softstart; DC voltage; VHF; current limiting; short-circuit; limiter; overheat
• Status LED: Power, signal, clip

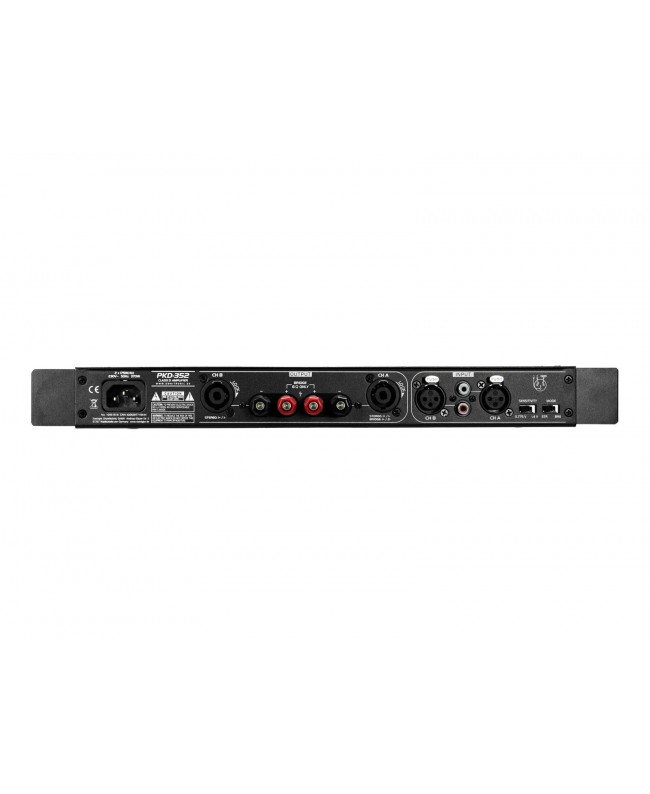

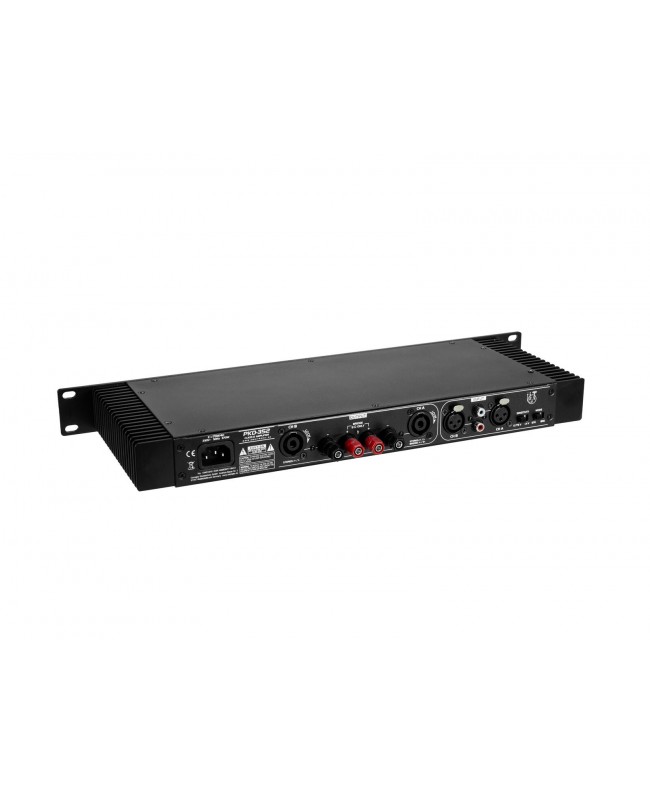

• Connections: Input: line via 2 x 3-pin XLR, Input: line via 2 x RCA (F) mounting version, Output: speaker via 2 x speaker built-in socket (F), Output: speaker via 2 x screw terminal
• Input sensitivity: 0.775 V; 1.4 V , switchable
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.3 cm, Depth: 19 cm, Height: 4.4 cm
• Weight: 2.81 kg
