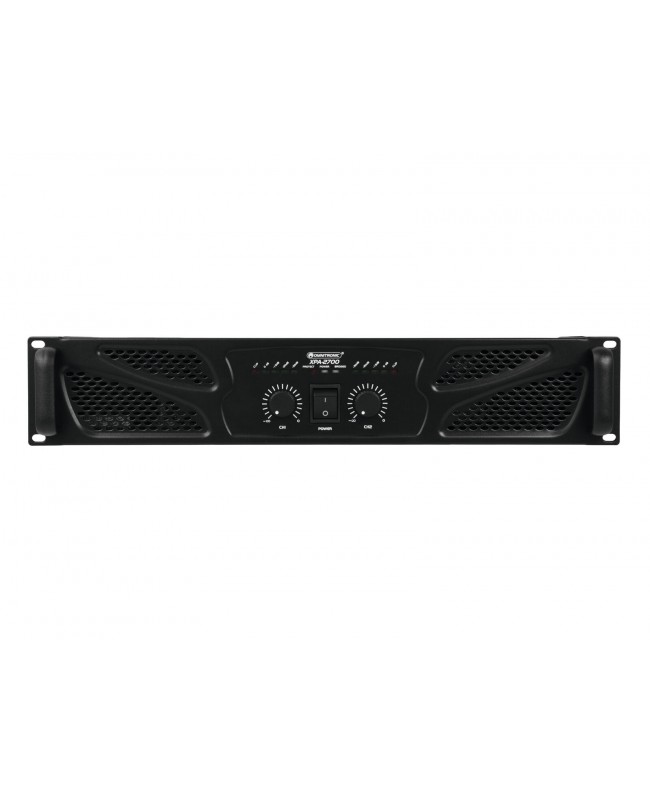

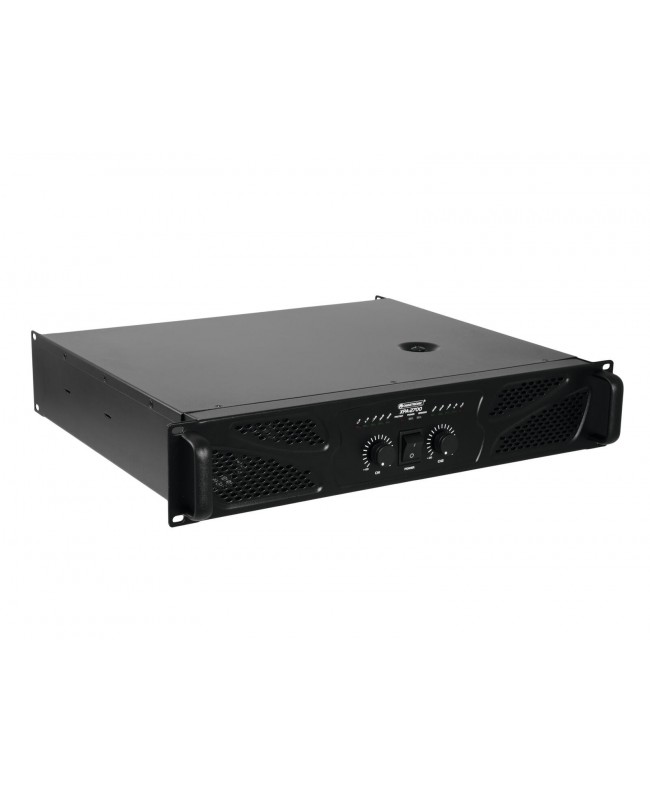

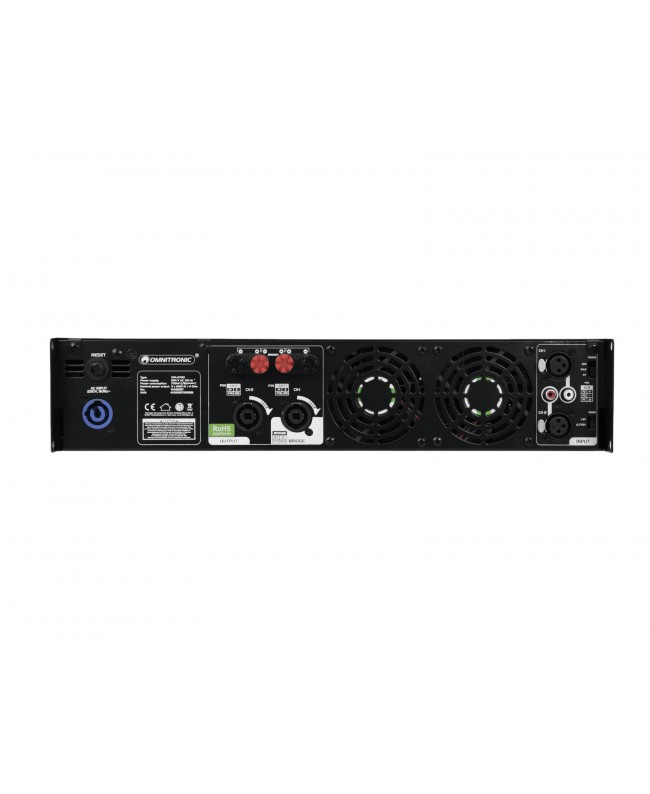

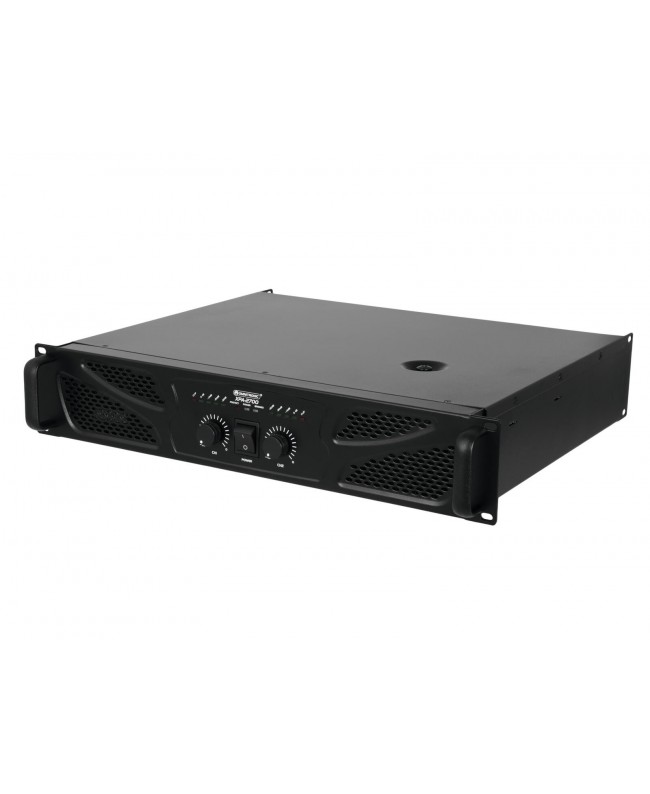

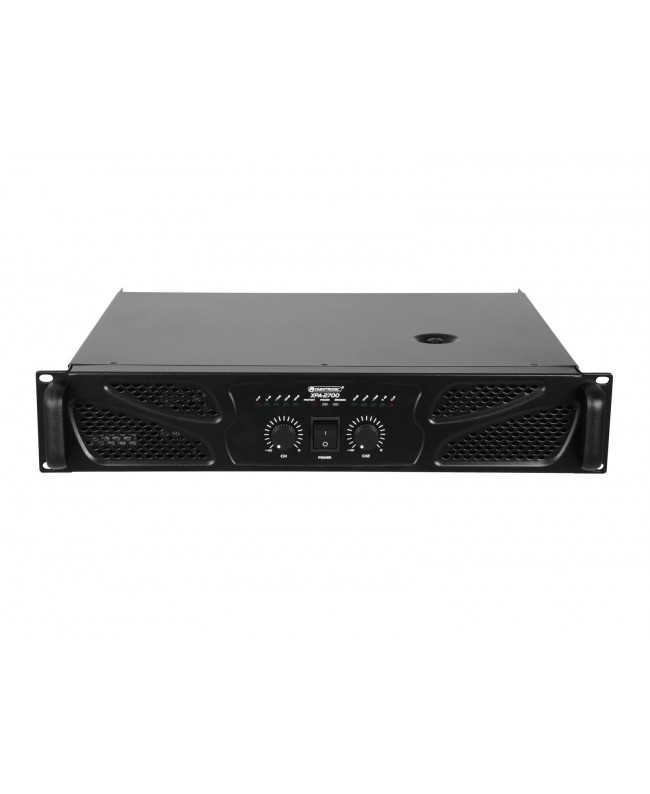

Omnitronic XPA-2700 Amplifier

Scope of delivery

• 1 x amplifier
• 1 x user manual
• 1 x power cord
• 4 x foot
• 4 x screw

• Power supply: 230 V AC, 50 Hz
• Power consumption: 700 W 1/8 power
• Output power: 2 x 1350 W RMS (4 ohms), 2 x 1080 W RMS (8 ohms), 2700 W RMS bridged (8 ohms)
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 100 dB
• THD: 0.5 % at 1 kHz
• Cooling: Cooling fan
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Circuitry: Class H
• Slew rate: 10 V/µs
• Damping factor: 200
• Control elements: Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
• Controls: Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient
• Status LED: Power, level meter, clip, bridged, protect
• Connections: Input: line via 2 x 3-pin XLR, Input: line via 1 x stereo RCA, Output: speaker via 2 x speaker built-in socket (F), Output: speaker via screw terminal
• Input sensitivity: 0.775 V; 1.4 V , switchable
• Housing design: (19) 48.3 cm rack installation 2 U
• Dimensions: Width: 48.3 cm, Depth: 41.5 cm, Height: 8.9 cm
• Weight: 15.70 kg
