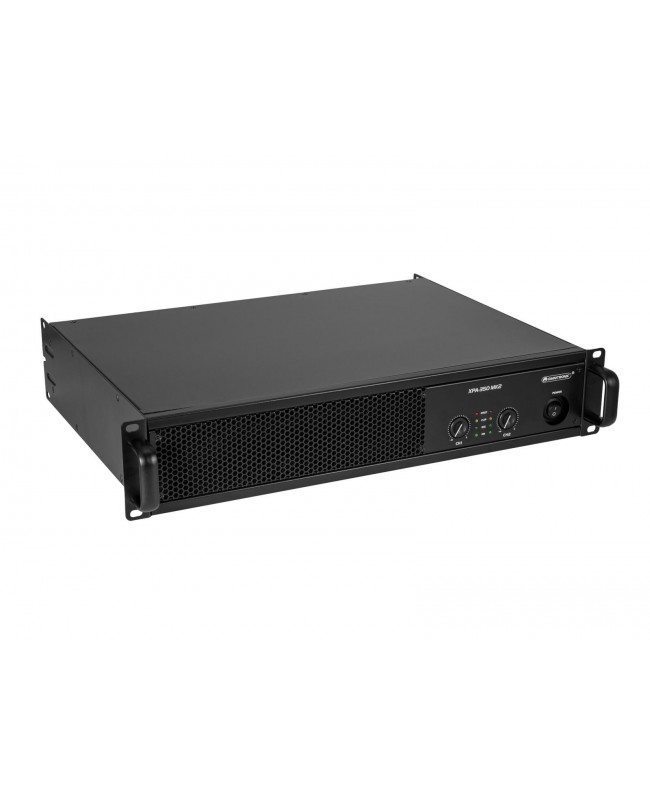

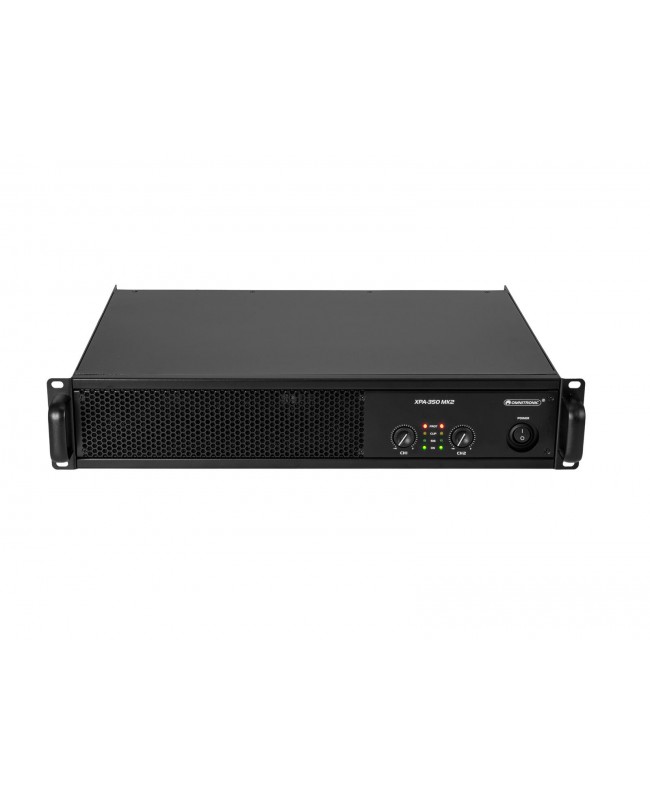

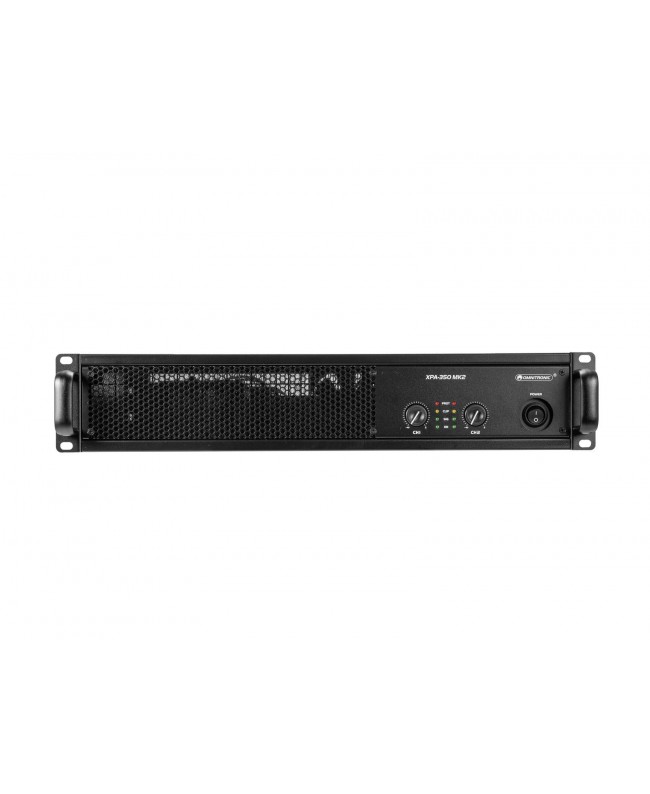

Omnitronic XPA-350 MK2 Amplifier

• 2 level controls
• Signal inputs via XLR or RCA connectors
• Speaker outputs via lockable speaker jacks and pairs of screw terminals
• Class AB circuitry
• (19) 48.3 cm rack installation 2 U
• Highly efficient air flow from front to rear
• The device is cooled by temperature-controlled fan
• For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms; band/rehearsal room

Scope of delivery

• 1 x amplifier
• 1 x power cord
• 4 x foot
• 1 x user manual

• Power supply: 230 V AC, 50 Hz
• Power consumption: 245 W 1/8 power
• Protection class: Protection class I
• Output power: 2 x 175 W RMS (4 ohms), 2 x 130 W RMS (8 ohms), 350 W RMS bridged (8 ohms)
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Cable length: 1 m detachable
• Fuse: 5 x 20 mm, T 3.15 A fuse serviceable
• Frequency range: 20 - 20000 Hz
• S/N ratio: 95 dB
• THD: 0.5 % at 1 kHz
• Cooling: 2 x temperature-controlled fan , air flow from front to rear
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Gain: 30 dB/ 1 V
• Housing color: Black
• Circuitry: Class AB
• Slew rate: 20 V/µs
• Damping factor: 200
• Control elements: Power switch, level control per channel, mode switch (stereo/parallel/bridged)
• Controls: Short-circuit; overheat; DC voltage; softstart; power on/off transients; VHF; current limiting; limiter
• Status LED: Power, signal, clip, protect

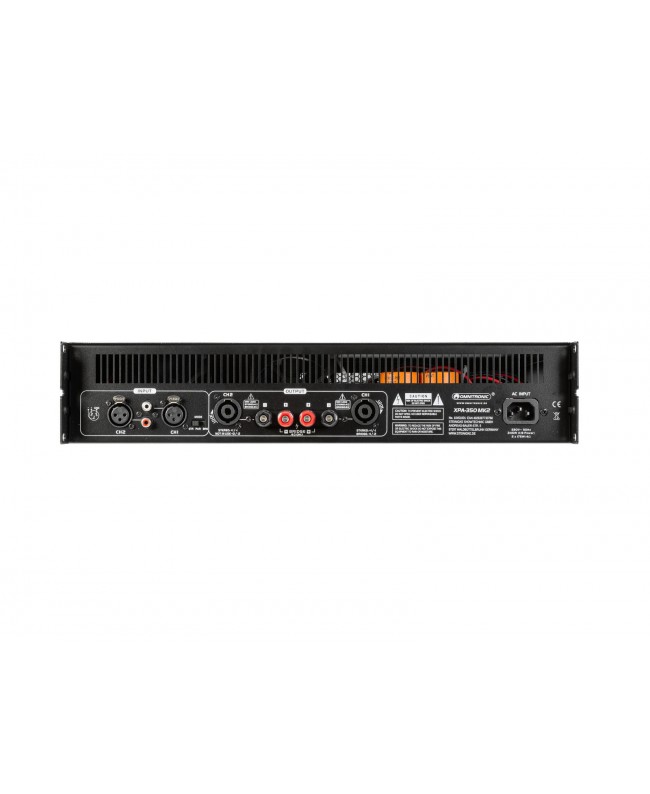

• Connections: Input: line via 2 x 3-pin XLR, Input: line via stereo RCA, Output: speaker via 2 x speaker built-in socket (F), Output: speaker via screw terminal, Output: speaker (bridge) via 1 x speaker built-in socket (F), Output: speaker (bridge) via screw terminal
• Input sensitivity: 1 V
• Housing design: (19) 48.3 cm rack installation 2 U
• Dimensions: Width: 48.3 cm, Depth: 36.8 cm, Height: 9.1 cm
• Weight: 7.65 kg
