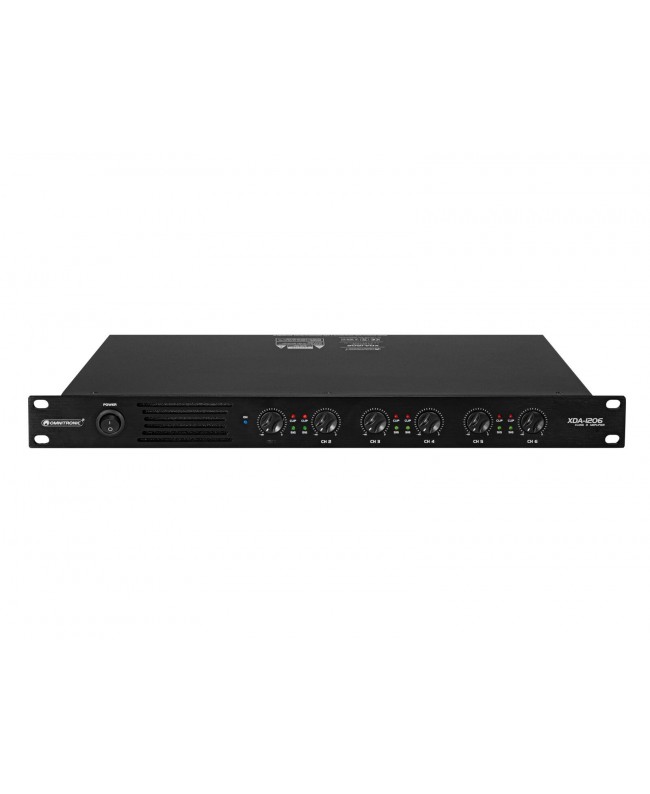

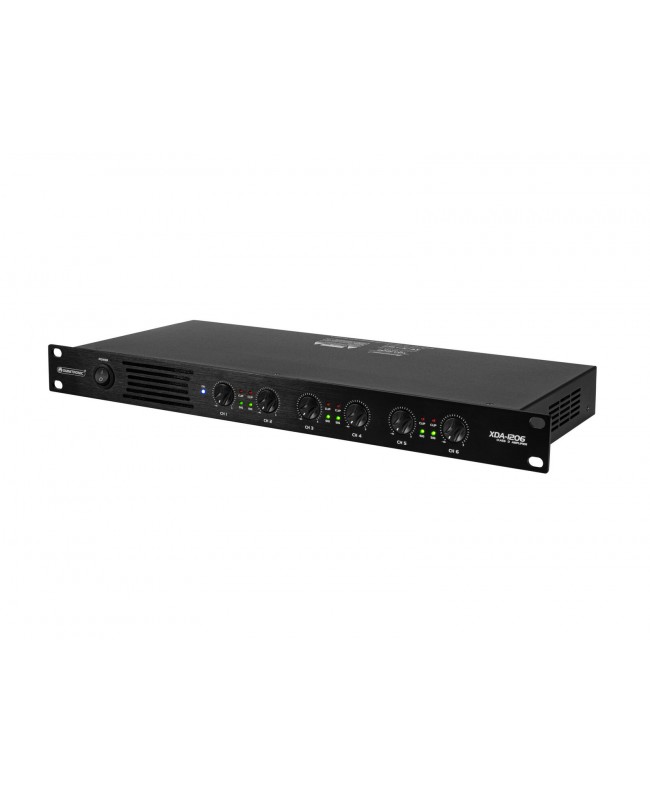

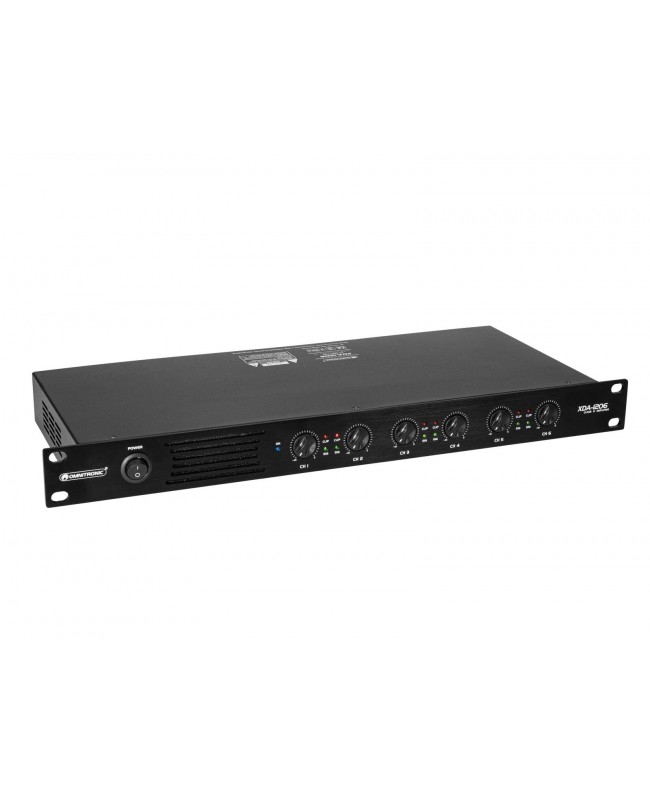

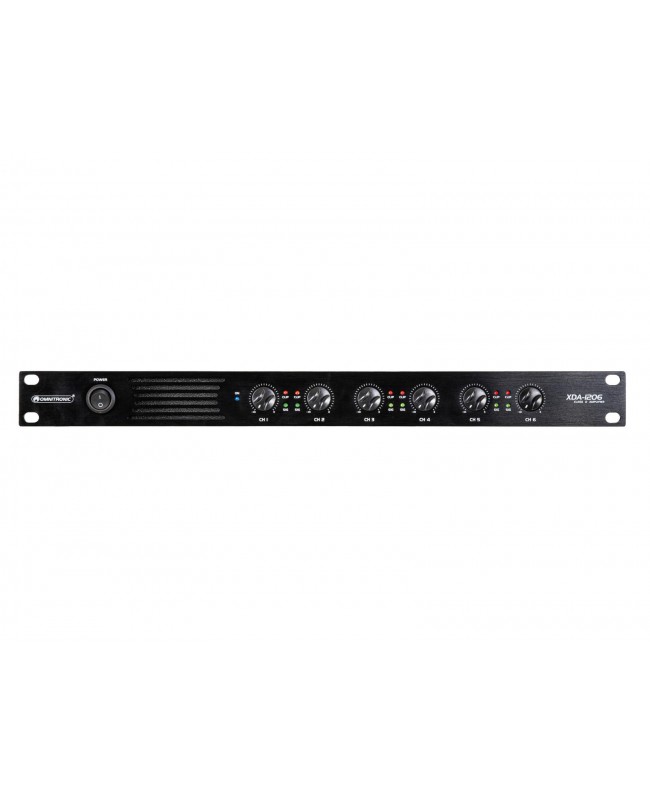

Omnitronic XDA-1206 6-channel Class D Amplifier

• Extremely low weight and height due to integrated switch mode power supply
• Level control per channel
• (19) 48.3 cm rack installation 1 U
• For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms

Scope of delivery

• 1 x amplifier
• 1 x user manual
• 1 x power cord
• 6 x screw plug-in terminal
• 4 x foot

• Power supply: 230 V AC, 50 Hz
• Power consumption: 1440 W
• Protection class: Protection class I
• Output power: 6 x 200 W RMS (4 ohms), 6 x 150 W RMS (8 ohms)
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 8 A fuse replaceable
• Frequency range: 20 - 20000 Hz
• S/N ratio: 100 dB
• THD: 0.05 % at 1 kHz
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Gain: 29 dB/ 0.775 V
• Housing color: Black matte
• Circuitry: Class D
• Slew rate: 20 V/µs
• Damping factor: 300
• Control elements: Power switch, level control per channel
• Controls: Softstart; overheat; overload; short-circuit; DC voltage
• Status LED: Power, signal, clip

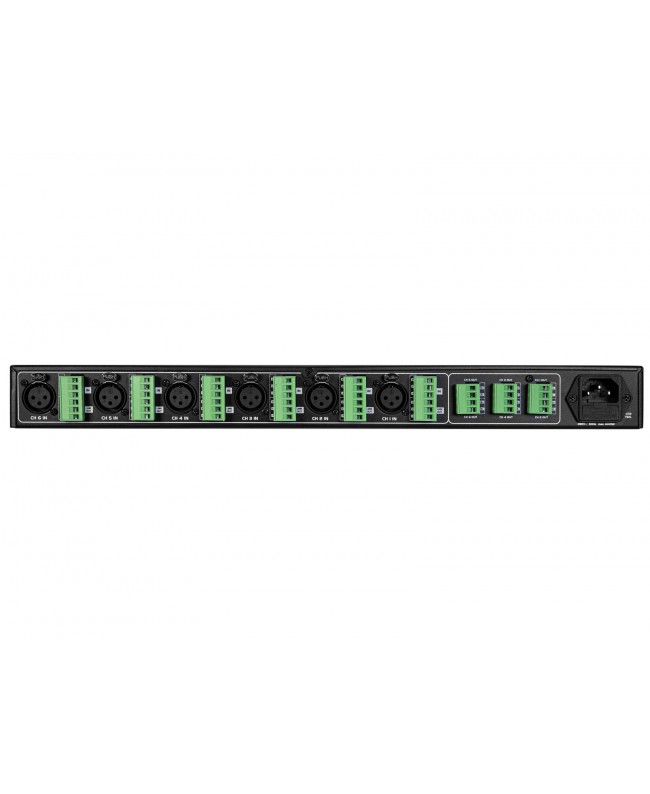

• Connections: Input: line via 6 x 3-pin XLR, Input: 6 x screw plug-in terminal, Link: line via 6 x screw plug-in terminal, Output: speaker via 6 x screw plug-in terminal
• Input sensitivity: 0.775 V
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.3 cm, Depth: 20.5 cm, Height: 4.4 cm
• Weight: 3.75 kg
