Audiophony WA-4X3
  • New

Audiophony WA-4X3

€874.00
Tax included

4 Channels power amplifier, 4 x 200 W RMS on 8 ohm, 2 x 600 W bridged stereo

Out of Stock

Free shipping

Compare

wishlist

Audiophony WA-4X3

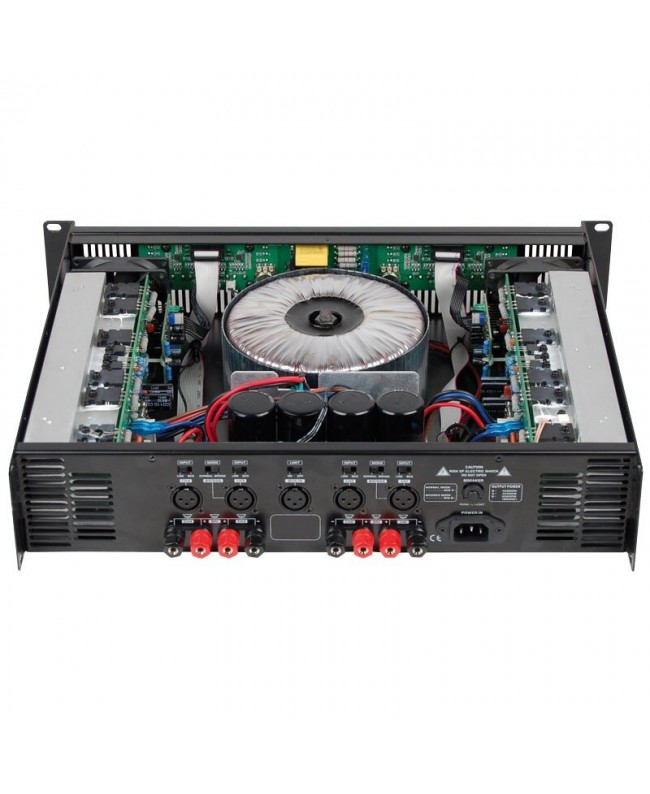

4-Channel final amplifier with 4 x 300 WRMS into 4 ohm and 4 x 200 and nbsp;WRMS and nbsp;into 8 ohm. Possibility of bridge operation, with delivery of 2 x 600 WRMS into 8 ohm. The amplification stages are Class-AB, just like the power amplifiers for Hi-Fi use. Powerful low leakage flux toroidal transformer.

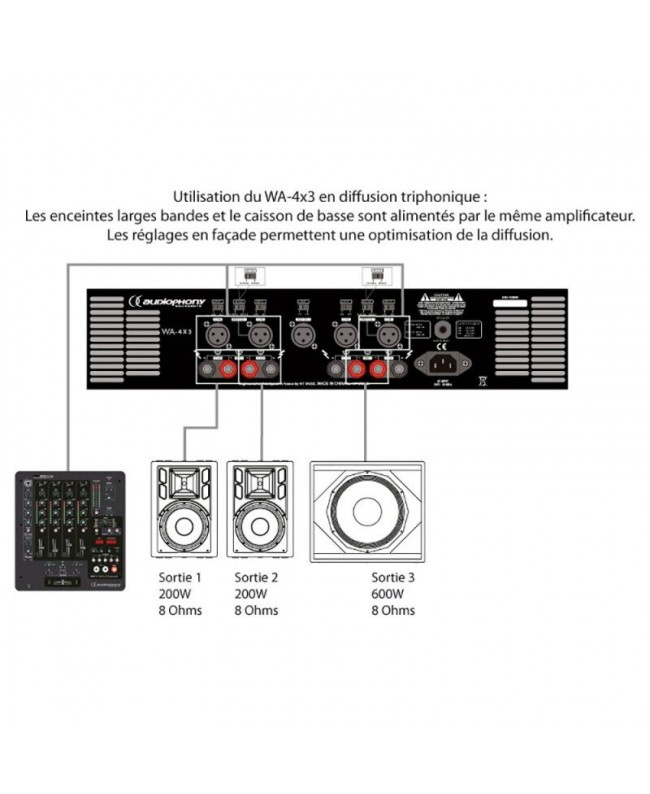

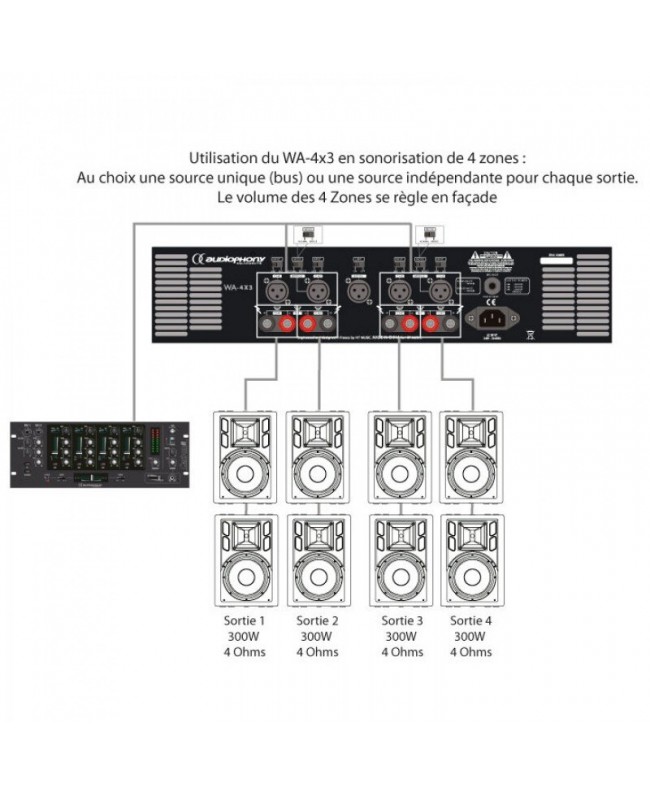

Level adjustment and independent bass / treble tone controls for each channel, LEDs for signal presence, clipping, protection, bridge operation. Great versatility of operation in 2x2, 2+1 or 4x1 configurations. Possibility of operation also in Bus Mode: in this mode, the signal sent to the Bus input is amplified by all 4 output channels.

XLR input connectors and screw output connectors for banana speaker plugs.

  • Power output RMS at 8 ohm: 4 x 200 W
  • Power output RMS at 4 ohm: 4 x 300 W
  • Power output RMS stereo-bridged at 8 ohm: 2 x 600 W
  • Power output RMS 1 bridged and 2 stereo at 8 ohm: 1 x 600 W + 2 x200 W
  • Sensitivity at 8 ohm rated power: 0.775 mV
  • Frequency response (1 W): 20 Hz - 25 kHz (+0 dB, -0.5 dB)
  • Frequency response: 20 Hz - 20 kHz
  • Phase response (1 W): 20 Hz - 20 kHz (+10°, -20°)
  • Signal to noise ratio below rated power A-weighted: 100 dB
  • THD (20 Hz - 20 kHz): 0.1%
  • Intermodulation distortion (IMD) at 60 Hz and 7 kHz at 4:1, from full rated output to -35dB: 0.05%
  • Damping factor at 8 ohm from 20 Hz to 400 Hz: 200
  • Input impedance (nominally balanced): 20 kohm
  • Input impedance (nominally unbalanced): 10 kohm
  • Max load impedance, 4 channels: 4 and 8 ohm
  • Max. load impedance, stereo bridged: 8 ohm
  • Power supply: 220 - 240 VAC 50/60 Hz
  • Fans: proportional speed
  • Cooling system: front to rear forced ventilation
  • AC line current: 8 A (both amplifiers do not consume more than 90 W when inactive)
  • Dimensions: 483 x 375 x 89 mm
  • Net weight: 16 kg
  • Shipping weight: 19 kg

HIT-H9066
