Outline TTM8K4

€6,354.00
€4,727.00 -26%
Tax included
Lowest price within the last 30 days: €4,727.00

4 CH 2U amplifier. DSP, analog / digital AES3, 4 x 2.000/2.000/1.400 W @ 2/4/8 ohm

Out of Stock

Free shipping

Compare

wishlist

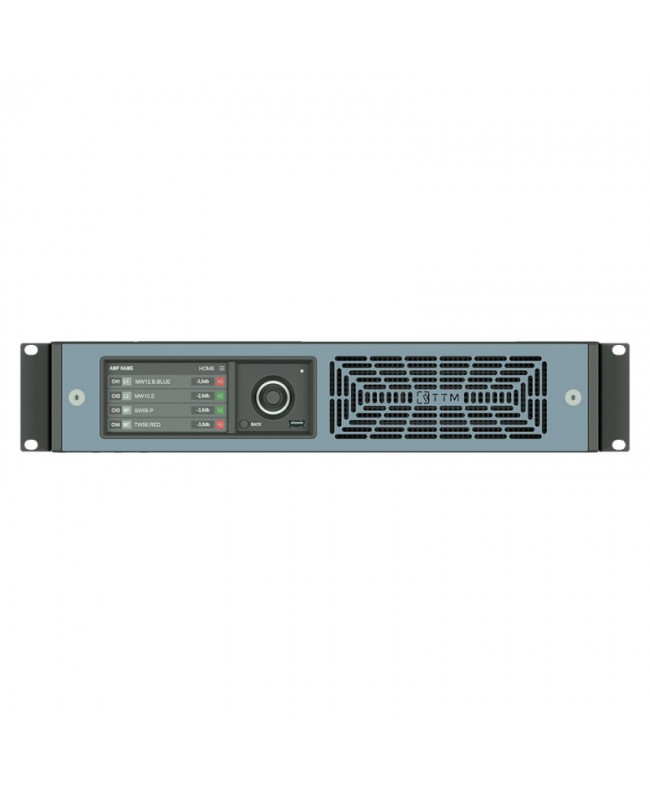

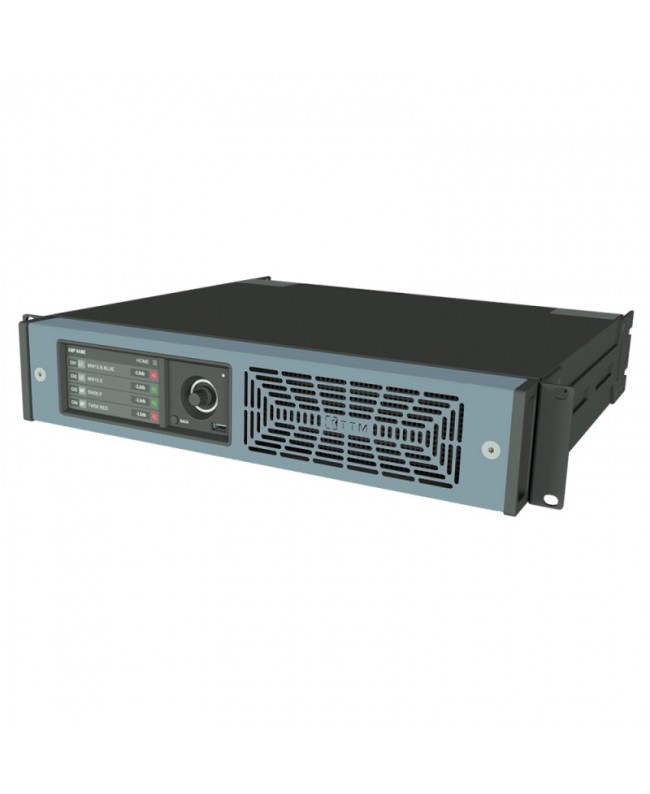

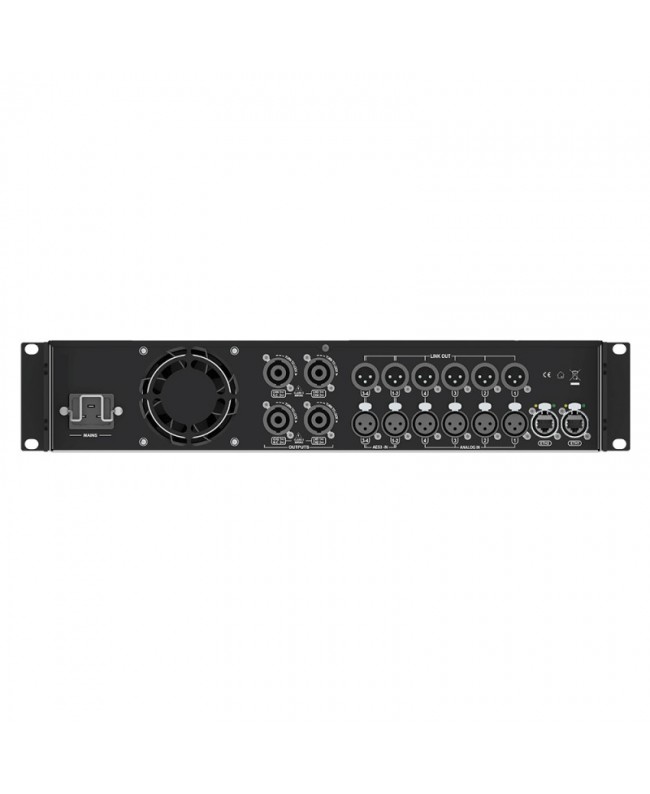

Outline TTM8K4



The Outline TTM8K4 is a 4-channel power amplifier belonging to the TTM series, a multi-purpose amplifier platform that includes comprehensive signal processing by high-level DSP with a high dynamic range and an extensive feature set, analogue and AES3 digital inputs and outputs and a bright 4.3 IPS display with capacitive touch and rotary encoder with button. TTM8K4 can also be controlled remotely with ArmonÌa. Plus. The 2U height, 4-channel TTM amplifiers offer high power and voltage, enabling high SPL even into 8 or 16 ohm loads. The TTM8K4 is capable of delivering a massive 4 x 2000 W power output into 4 ohm loads. Featuring PFC (Power Factor Correction) for low power consumption and compatibility with a wide voltage range, the power supply offers 750 Joules of energy storage to maintain consistent performance. The amplifier can be controlled locally via the display interface. Available features include preset recall and gain, delay and mute control, all features required by rental companies. Also present are IIR, FIR, IIR+FIR and raised cosine input and output filters and a complete set of limiters: peak, RMS voltage, RMS current and True. Power. Better reliability has been achieved thanks to a customizable input backup management that allows you to automatically switch the input source in case of signal failure. Finally, the protection circuits are complete: over/under AC voltage, troublesome signals (clipping, VHF, long-term RMS), DC, thermal, short circuit; mute at power ON / OFF.

  • Number of channels: 4

Output power

  • (Per channel): Single channel mode: 2000 W at 2 ohm, 2000 W at 4 ohm, 1400 W at 8 ohm
  • Bridge mode: 4000 W at 4 ohm, 4000 W at 8 ohm
  • Max output voltage: 155 V peak
  • Max output current: 55 A peak
  • Power consumption: at 100 V - Standby: 15.8 W , 1/8 Power at 4 ohm: 1429 W
  • At 240 V - Standby: 17.2 W , 1/8 Power at 4 ohm: 1327 W
  • Current draw (1/8 power at 4 ohm): at 100 V - 14.7 A
  • Thermal dissipation (1/8 power at 4 ohm): at 100 V - 1458 BTU/h
  • AC Main Power: Universal regulated switch mode with PFC, SRM
  • Operating voltage: 90 - 264 VAC 50/60 Hz
  • Frequency response at 8 ohm: 20 Hz - 20 kHz (+-1 dB)
  • Crosstalk (1 kHz): -75 dB typ.
  • THD+N (from 0.1 W to half power): 0.1% (typical 0.05%)
  • SMPTE IMD (from 0.1 W to Half Power): 0.1% (typical 0.05%)
  • Input impedance: 20 k ohm balanced
  • AD Converters: 24 bit Tandem at 48 kHz
  • DA Converters: 24 bit Tandem at 48 kHz
  • Sample rate converter: 24 bit at 96 kHz
  • Internal precision: 32 bit floating point
  • Latency: 2.5 ms fixed latency architecture
  • Memory/Presets: 50 amplifier snapshots, virtually unlimited speaker presets
  • Equalizer: Raised-cosine, custom FIR, parametric IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop, hi/lo-pass
  • Crossover: linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
  • Delay: 2 s (input) + 100 ms (output) for time alignment
  • Limiters: TruePower, RMS voltage, RMS current, Peak limiter
  • Damping control: Active DampingControl and LiveImpedance measurement
  • Display dimensions: 480 x 272, 4.3
  • Display brightness: 600 nit
  • Display control: Multitouch capacitive. Rotary encoder 20 steps/turnwith pushbutton
