Definitive Audio MA 1U 2180D
  • New

Definitive Audio MA 1U 2180D

€325.00
Tax included

2 X 180 W RMS 4 ohm 1U power amplifier

Out of Stock

Free shipping

Compare

wishlist

Definitive Audio MA 1U 2180D

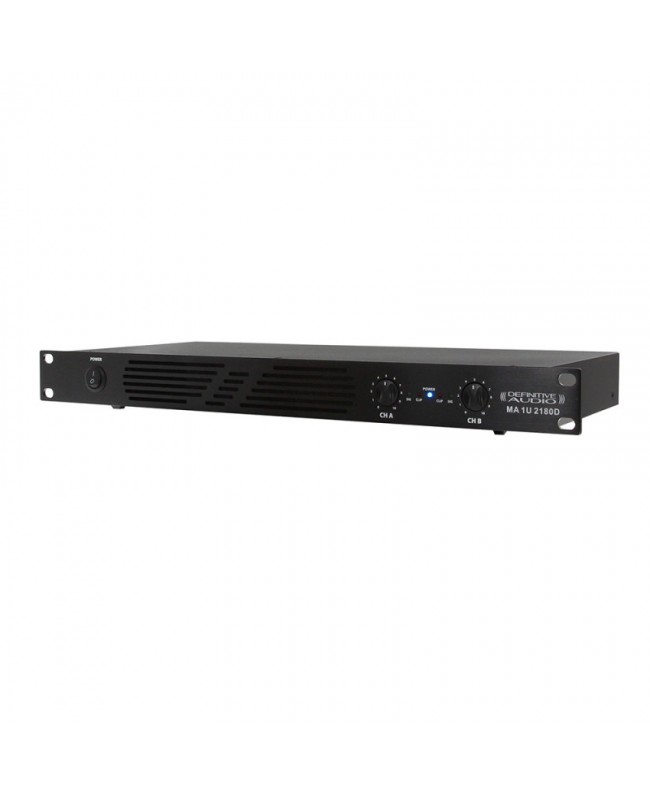

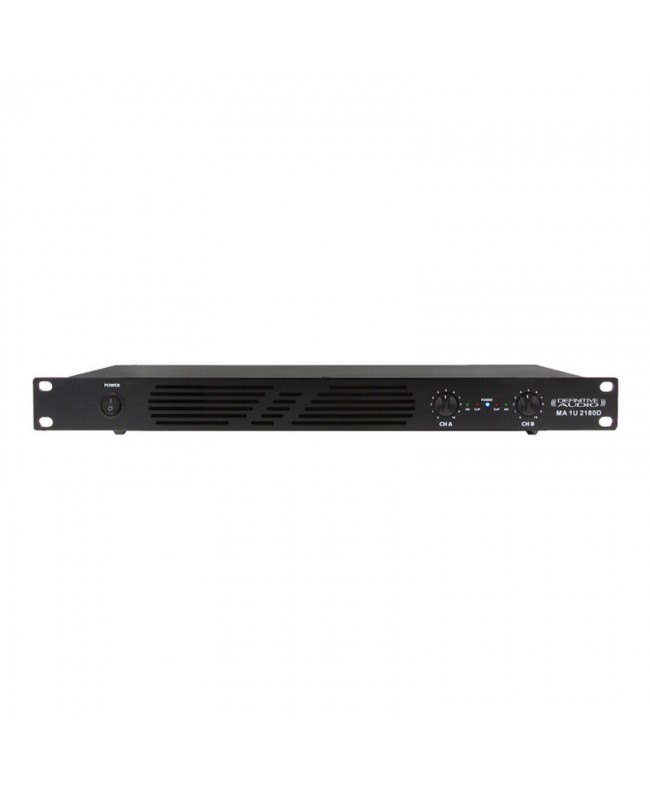

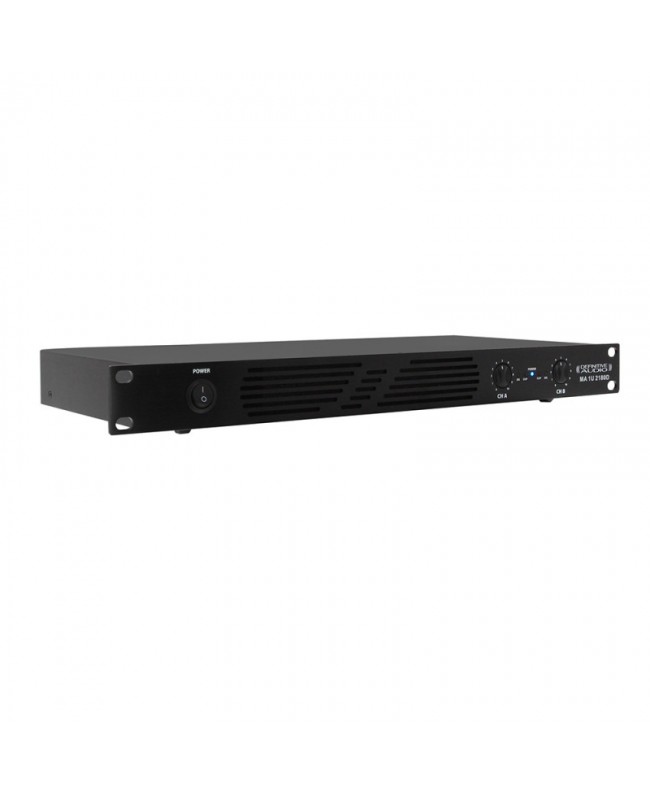

The MA 1U 2180D is a 2-channels power amplifier specially designed for installations such as restaurants, bars, meeting rooms and all spaces that require sound diffusion. It adopts a Class-D circuit topology, which allows high performance with very low weight. The height is 1U in the standard 19 rack format, it can be placed in a flight case or control room very easily taking up very little space.

Class-D power amplifier

  • Continuous power: 2 x 180 W 4 ohms and 2 x 110 W 8 ohms
  • Bridge mode: 2 x 360 W 8 ohms
  • Damping factor: 300
  • Input impedance: 10 kohms unbalanced, 20 kohms balanced
  • Frequency response: 20 Hz - 20 kHz +-0.5 dB
  • THD+N: 0.05%
  • Distortion (SMPTE-IM): 0.5%
  • S/N ratio: 100 dB

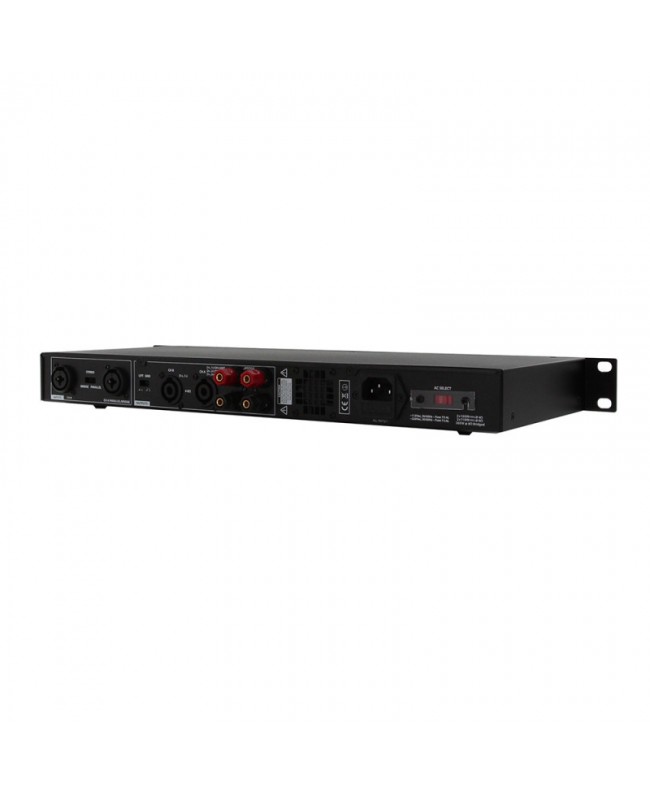

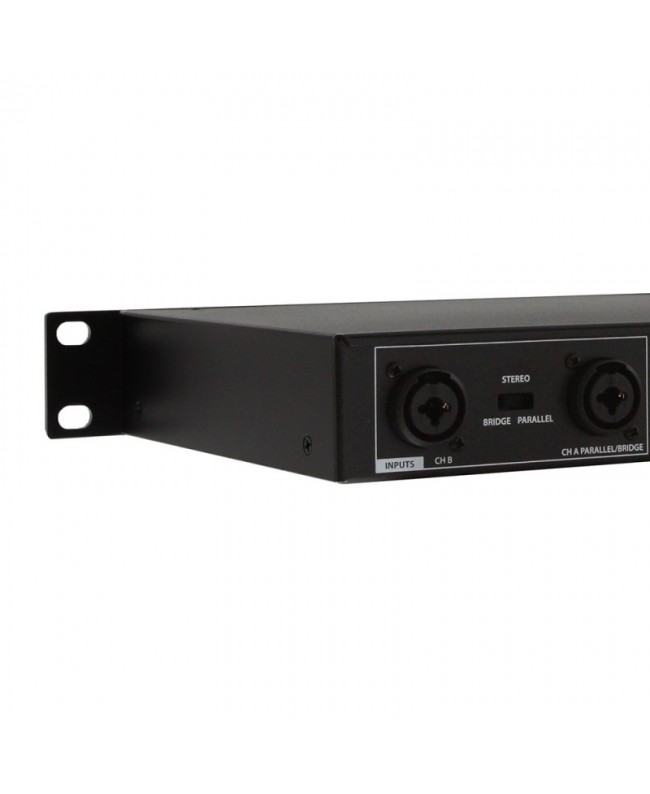

  • Input connectors: Combo XLR and jack

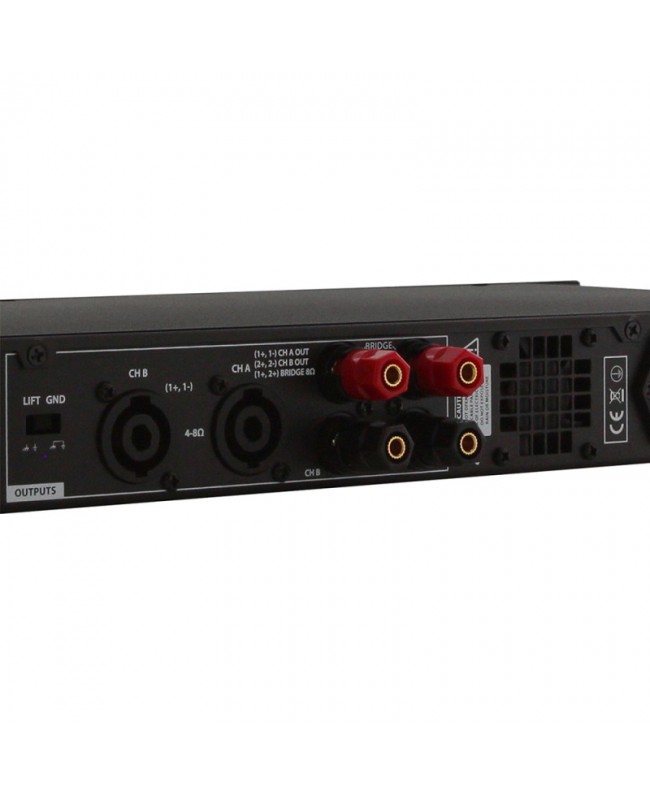

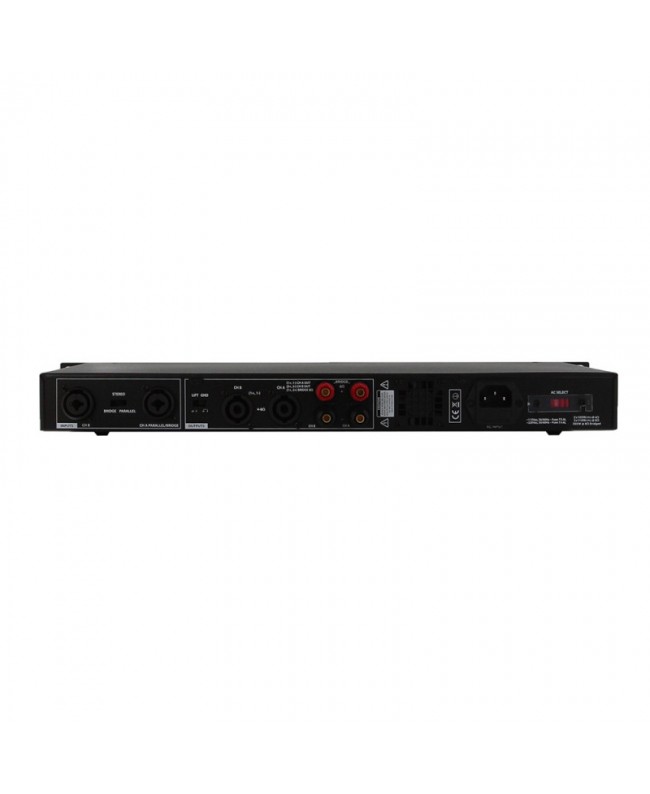

  • Output connectors: output terminals and speakON

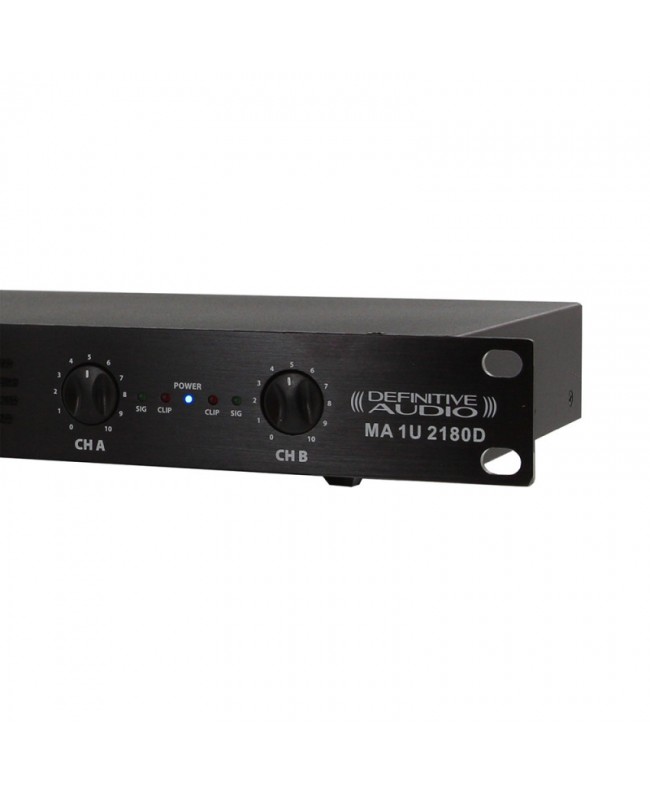

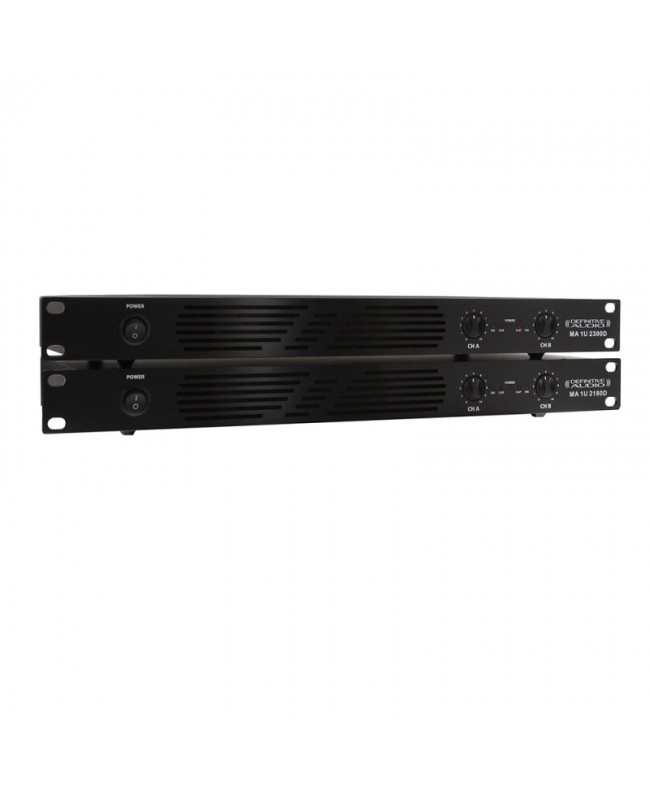

  • Front control: ON/OFF switch and volume
  • Rear control: bridge, parallel and stereo selector

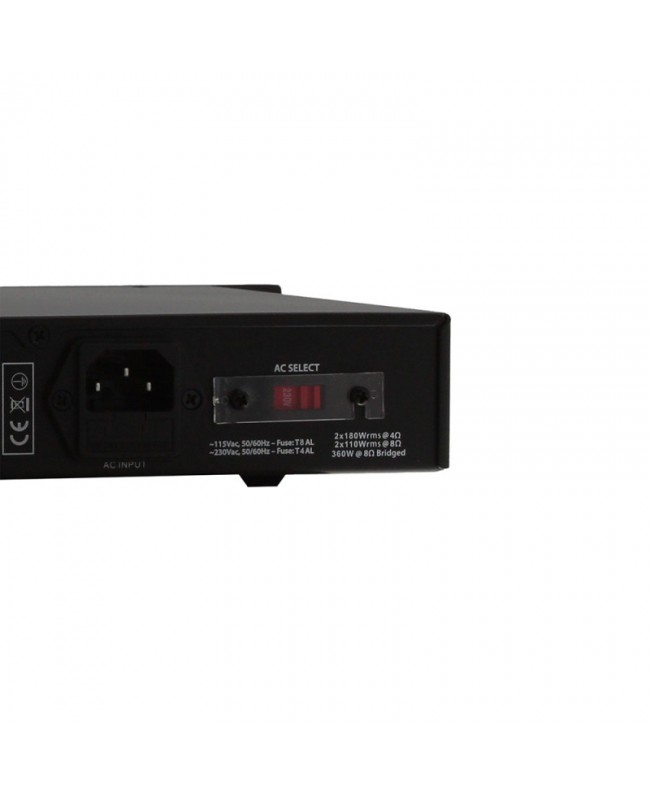

  • Power supply: 230 VAC 50/60 Hz
  • Dimensions: 482 x 230 x 44 mm
  • Weight: 2.60 kg

SOG-1032_MA_1U_2180D
