Definitive Audio QUAD 1U 150D
  • New

Definitive Audio QUAD 1U 150D

€542.00
Tax included

4 X 150 W RMS 4 ohm 1U power amplifier

Out of Stock

Free shipping

Compare

wishlist

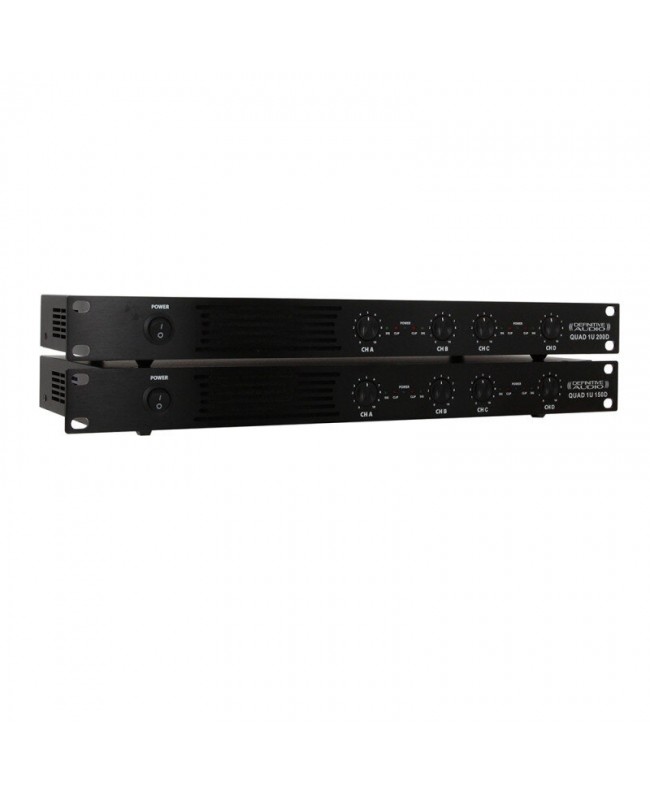

Definitive Audio QUAD 1U 150D



The QUAD 1U 150D is a 4-channels power amplifier specially designed for installations such as restaurants, bars, meeting rooms and all spaces that require sound diffusion. It is based on a Class-D circuitry, which allows high performance with a very low weight. With a height of 1U in the standard 19 and #34; rack format, it can be placed in a flight case or control room taking up very little space.

Class-D power amplifier

  • Continuous power: 4 x 150 W 4 ohms and 4 x 90 W 8 ohms
  • Bridge mode: 2 x 300 W 8 ohms
  • Damping factor: 260
  • Input impedance: 10 kohms unbalanced, 20 kohms balanced
  • Frequency response: 20 Hz - 20 kHz +-0.5 dB
  • THD+N: 0.05%
  • Distortion (SMPTE-IM): 0.5%
  • S/N ratio: 100 dB

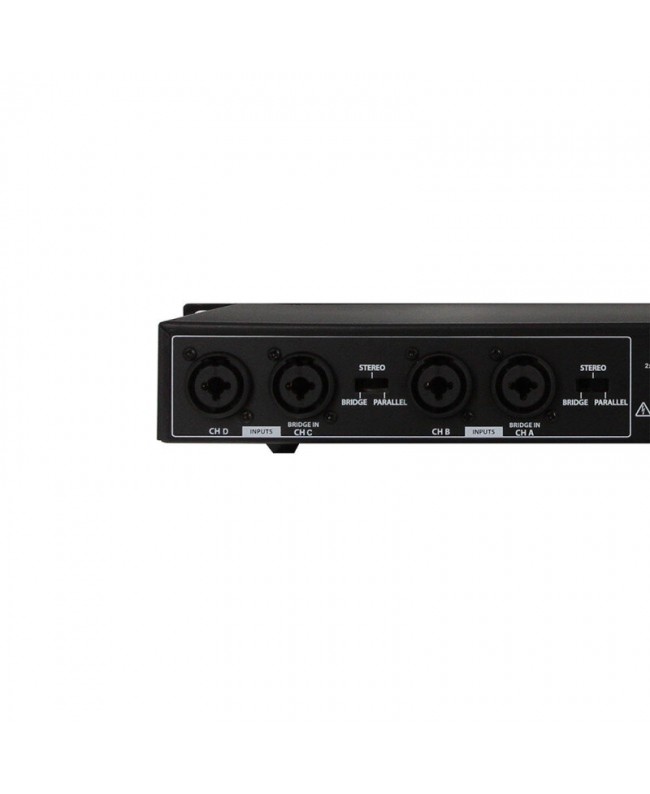

  • Input connectors: Combo XLR and jack

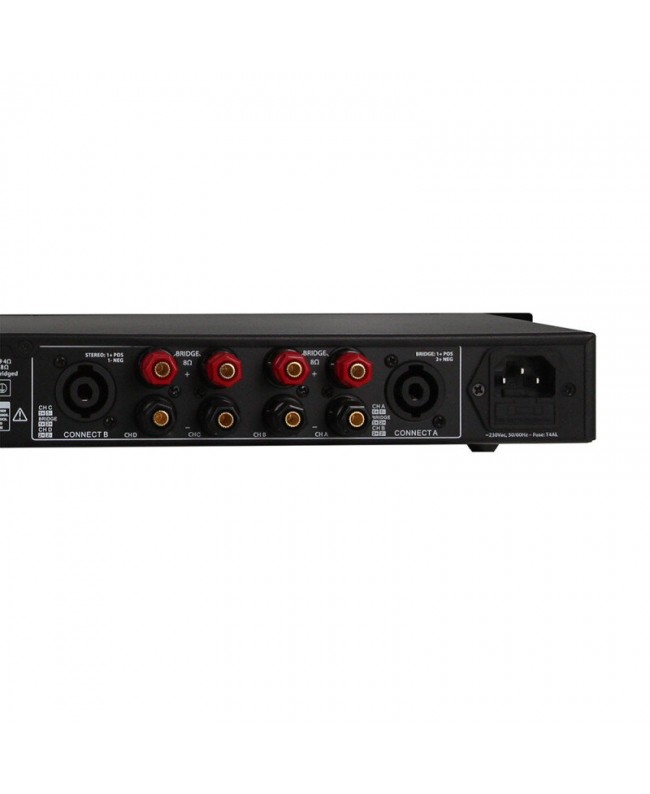

  • Output connectors: output terminals and speakON

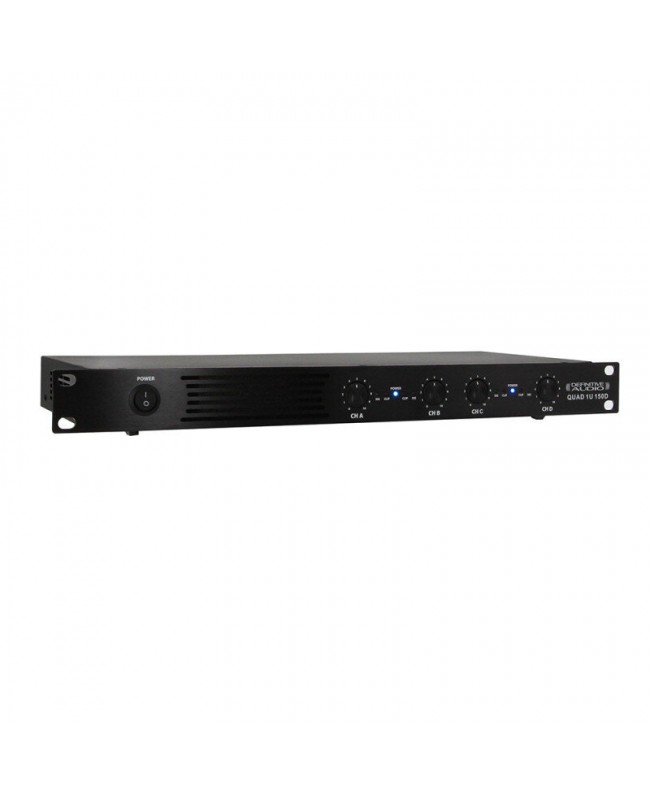

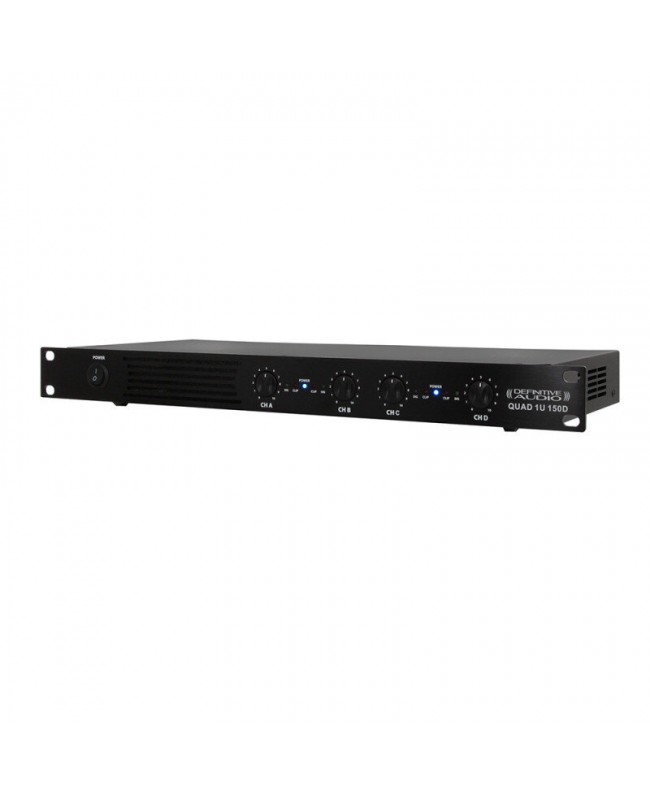

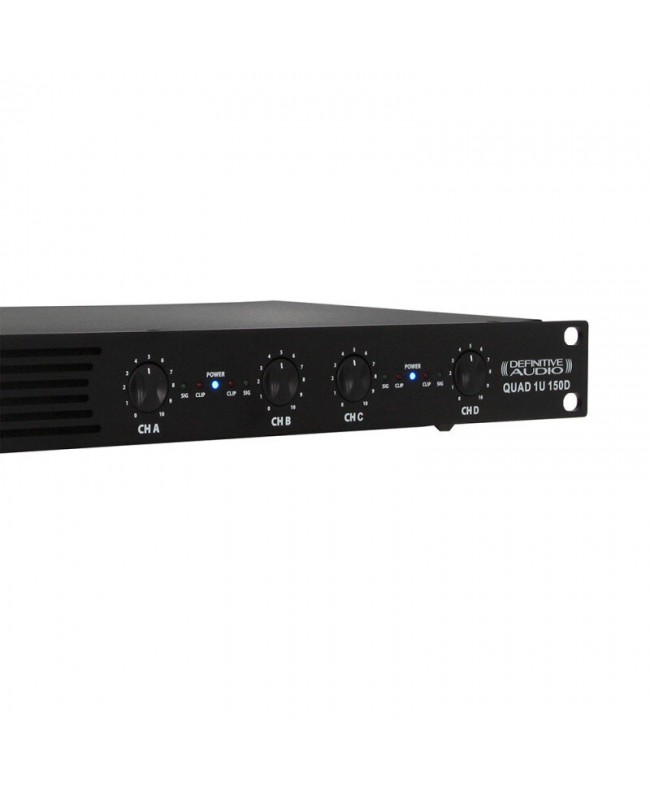

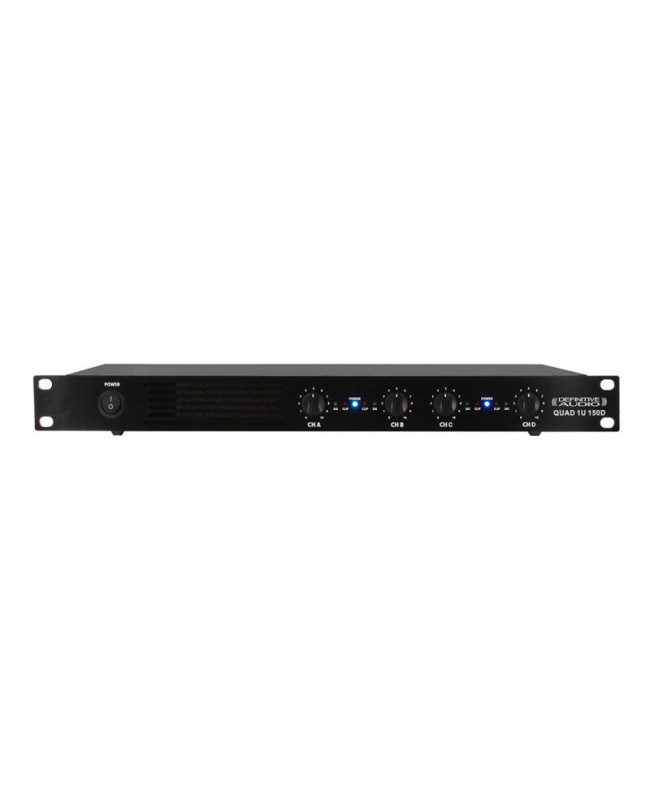

  • Front control: ON/OFF switch and volume

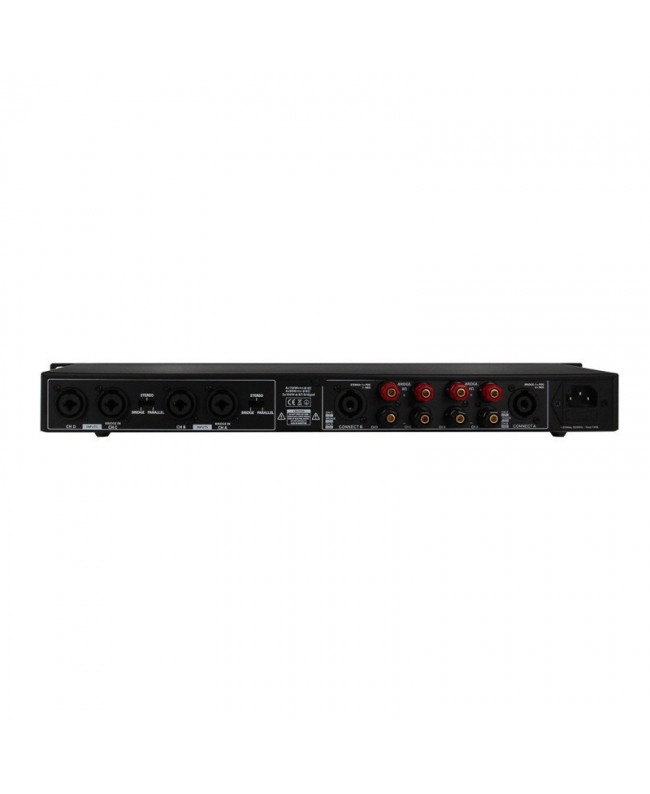

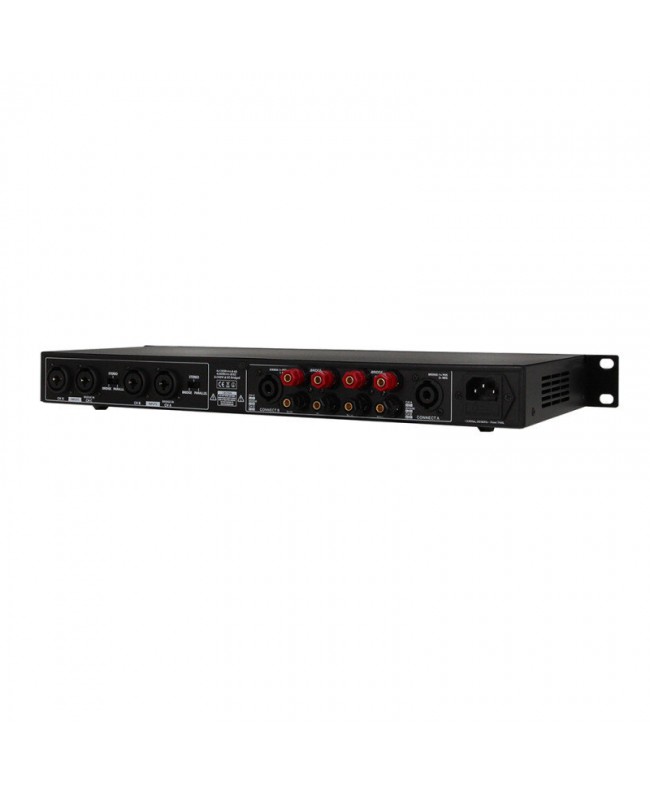

  • Rear control: bridge, parallel and stereo selector per pair of channels
  • Power supply: 230 VAC 50/60 Hz
  • Dimensions: 482 x 230 x 44 mm
  • Weight: 2.60 kg

SOG-1032_QUAD_1U_150D
