DAP PA-5500SA Amplifiers
  • -14%
  • New

DAP PA-5500SA


€518.00
€447.00 -14%
Tax included
Lowest price within the last 30 days: €447.00

2-Channel amplifier (2x 240 W) with tuner and network player


Qty

In Stock

Delivery

Do You want Your order by Friday, 01/05/2026? Order within 4 hours and 23 minutes

Free shipping


wishlist

DAP PA-5500SA



The DAP PA-5500SA is a 1U Internet radio with integrated 460W/100V amplifier and multimedia player. It supports multiple (wireless) media sources such as LAN, Wi-Fi and USB with support for AAC, AAC+, ALAC, APE, FLAC, MP3 and WAV, has BT 5.0 with aptX HD support, 5 line inputs and a TRS/XLR combo input on the front for microphone and line signals. It can also act as a Wi-Fi hotspot to which devices can cast. It's Class D amplifier delivers 2 x 240W into 8 ohms and can be bridged to deliver up to 240W at 100V.

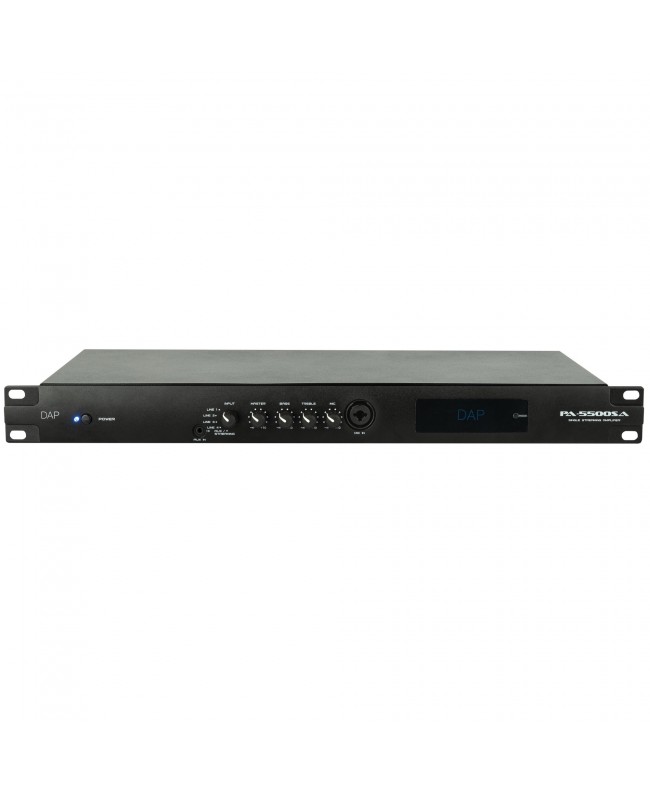

The PA-5500SA has front panel controls for mode selection, master volume, microphone level, bass and treble, and an OLED screen displaying information. Advanced settings can be controlled via the included IR remote or the 4stream app, which supports Spotify, Tidal, TuneIn, Amazon music and more. 6 presets for (TuneIn) radio stations or (Spotify) playlists make selecting your favourite music source quick and easy.

  • 1U 19 Internet radio with 2x 250 W/8 Ω or 1x 250 W 100 V amp
  • Supports Wi-Fi/LAN streaming via Airplay and Android casting
  • USB port with AAC, AAC+, ALAC, APE, FLAC, MP3 and WAV support
  • BT 5.0 with aptX HD
  • Front auxiliary and mic-in and 5 rear line-ins
  • Control via remote and 4stream app
  • 1.4 OLED screen
  • Power Amplifier RMS Output: 240 W
  • Power Amplifier Peak Output: 460 W
  • Output per Channel into 8 ohms at 1 kHz: 240 W
  • Bridge Output 100 V: 240 W
  • Output Channels: 2
  • Output Mode: Bridge / Stereo
  • Output Connector: 3-pin XLR / Terminal
  • Main Outputs: 2
  • Main Output Connector: Terminal / RCA
  • Mono Inputs: 1
  • Mono Input Connector: 3-pin XLR
  • Mono Input Gain Range: 10 dB
  • Stereo Inputs: 4
  • Stereo Input Connector: RCA
  • Auxiliary Inputs: 2
  • Auxiliary Input Connector: RCA / TRS balanced 3.5 mm
  • Supported Audio Files: AAC/AAC+ / ALAC / APE / FLAC / MP3 / WAV
  • Supported Format: exFAT / FAT16 / FAT32
  • Maximum Storage Size: 128 GB
  • Media Input/Output: USB-A
  • USB Type: 2.0
  • Playback Functions: Up (Skip) / Down (Skip) / Play / Pause / Stop
  • THD Level %: 0.1%
  • Signal-to-noise Ratio: 100 dB
  • Slew Rate: 14 V/μs
  • Amp Technology: Class D
  • Damping Factor: 300 :1
  • Frequency Response Minimum: 20 Hz
  • Frequency Response Maximum: 20000 Hz
  • Phantom Power: No
  • BT: No
  • Carrier Frequency: 2,4 GHz
  • Tuner: Streaming
  • Control Mode: App / Remote
  • Display: OLED
  • Display Size: 1.4
  • Power Supply: 220-240 V AC 50 Hz
  • SMPS: No
  • Backup Power Supply: No
  • Power Consumption: 100 W
  • Power Connector In: IEC
  • Data Connector In: RJ45
  • Height (mm): 44 mm
  • Width (mm): 483 mm
  • Depth (mm): 210 mm
  • Flightcase Size: 19
  • Rack Units: 1 U
  • Housing: Steel
  • Colour: Black
  • Finish: Powder Coating
  • Weight: 2.5 kg
  • IP Rating: IP20 (indoor use only)
  • Electronic Protection: Clip limiter / DC voltage / High frequency / Overheat / Overload / Short circuit / Softstart / Under voltage
  • LED Indicators: Power
  • Maximum Ambient Temperature: 45 °C
  • Minimum Ambient Temperature: 0 °C
  • Included Cables: IEC cable
  • Included Remotes: IR Remote battery not included

D6176

Data sheet

Channels
2 channels
Color
Black
Giorni di elaborazione
4

Specific References
