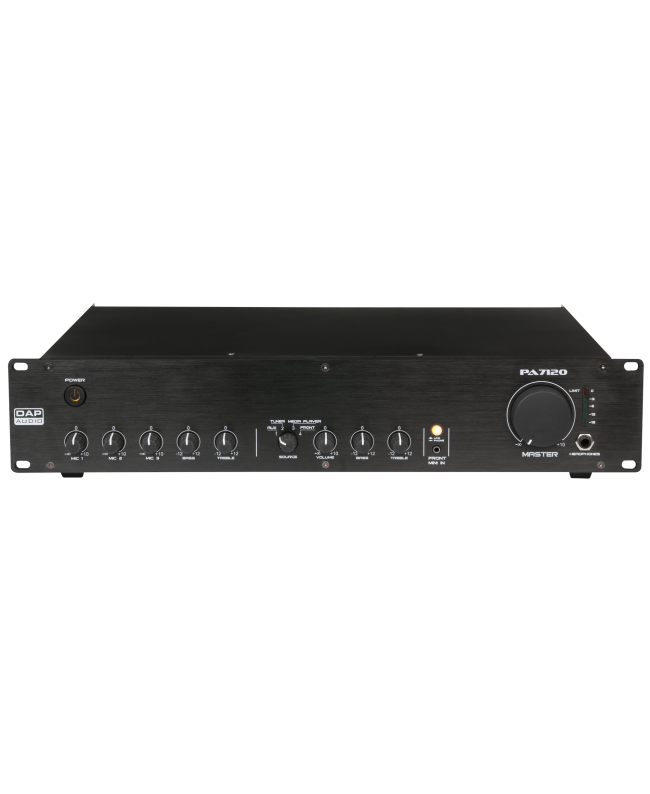

DAP PA-7120

The DAP PA-7120 is a 120-watt 100 V/8Ω mono amplifier mixer with 4 selectable sources and 3 microphone inputs. All microphone inputs are equipped with phantom power and can be selected as line input. An integrated speech filter can be applied to improve intelligibility. The terminal connector is equipped with a general zone, but also a 'call only' zone where only announcements can be heard but not music.

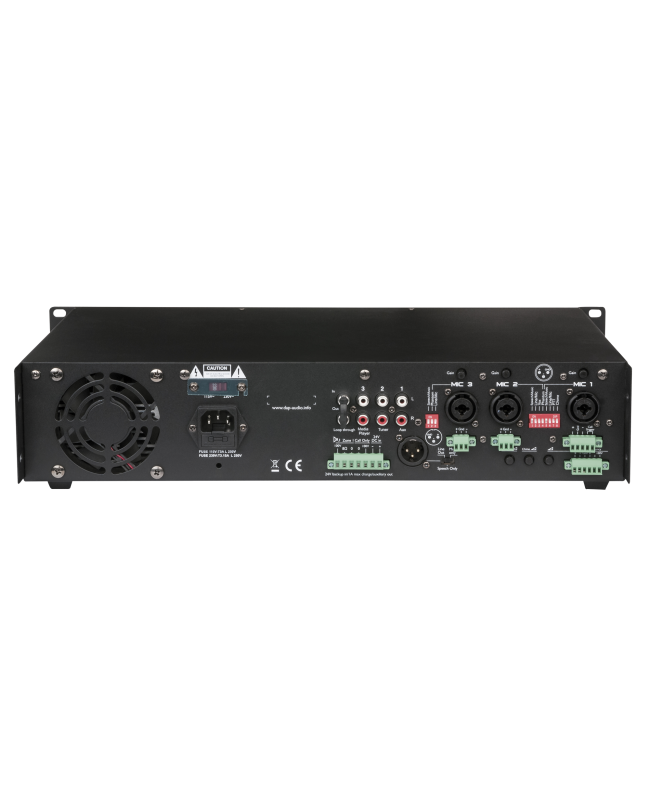

The PA-7120 has 3 line inputs on the rear and an easy accessible line/phone input on the front to connect an mp3 player or mobile device. The amplifier also has enhanced features such as, priority, chime with adjustable level, emergency input, ducking level control, loop through connection and an output which can be set as line output, music only or speech only.

This 100 V mixer amplifier is designed to support a PA system that is intended for intercommunication or background music in public areas such as convention-halls, shopping centres, dining rooms, auditoriums and recreation areas. These amplifiers have an integrated protective circuit to prevent overload and short circuit of the output. This results in very high reliability and easy installations without additional audio processors.

• Attention: do not connect 100 V and 8 Ohm speakers at the same time!
• Suitable for low/high impedance speakers (100 V/1x 8Ω)
• 3X RCA and 1x Mini-Jack input
• 3 Microphone inputs with phantom power and speech filter
• 'Call only' zone
• 19 2U rack design
