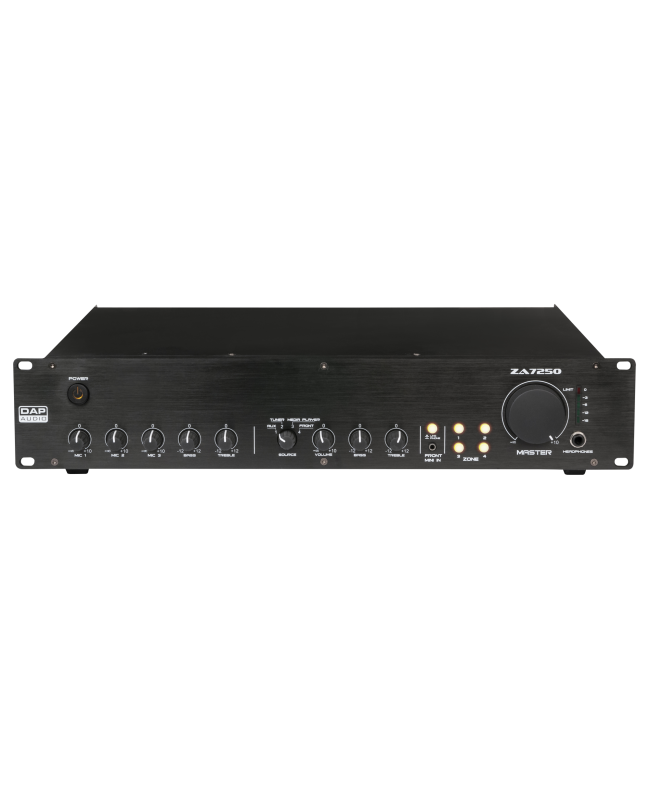

DAP ZA-7250

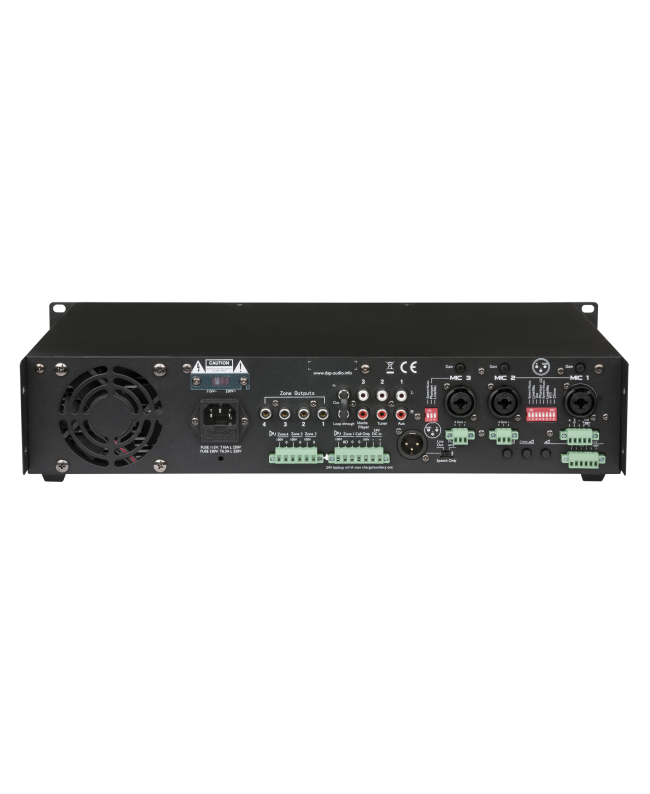

The DAP PA-7250 is a 240-watt 100 V 4-zone mixer amplifier with 4 selectable sources and 3 microphone inputs. All microphone inputs are equipped with phantom power and can be selected as line input. An integrated speech filter can be applied to improve intelligibility. This mixer amplifier has 3 RCA inputs on the rear and an easy accessible line/phone input (Mini-Jack) on the front for connecting an MP3 player or mobile device.

The PA-7250 has enhanced features. It has for example a special line for emergency announcements (such as a fire alarm) that will overrule all other inputs. It is also equipped with an adjustable chime function, ducking level control, loop through connection and a line output that can be set as line output, music only or microphone only. Besides, each zone also has its own line outputs for being able to connect extra amplifiers, allowing you to extend the PA system if needed.

This 100 V zone mixer amplifier is designed to support a PA system intended for intercommunication or background music in public and business areas such as convention halls, shopping malls, dining halls, auditoriums and recreational areas. It has an integrated protection circuit to protect against overload and short circuit of the output. This results in very high reliability and easy installations without the need for additional audio processors.

• 4 Stereo inputs and 3 mic inputs
• Line-output per zone and special output for only music/mics
• Chime and Ducking
• Loop-through connection
• 19 2U rack design
