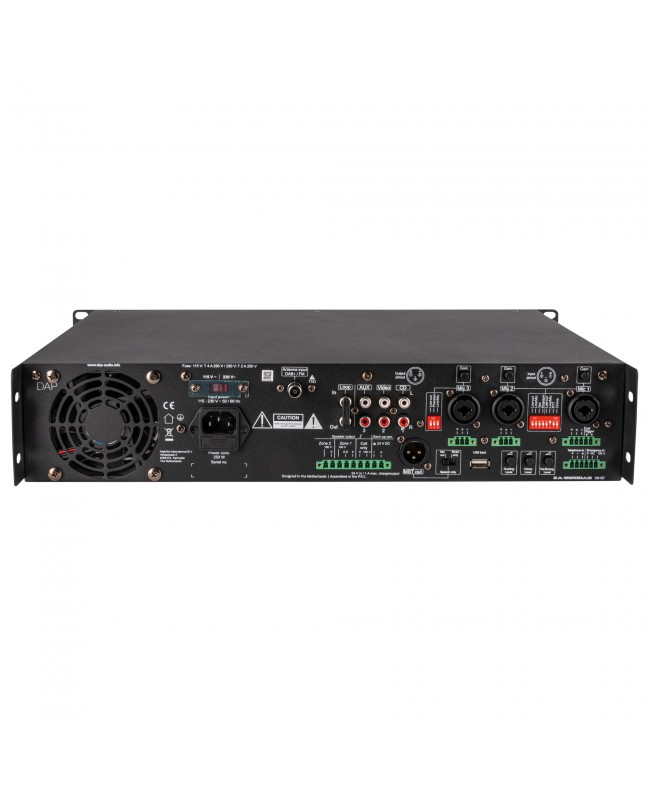

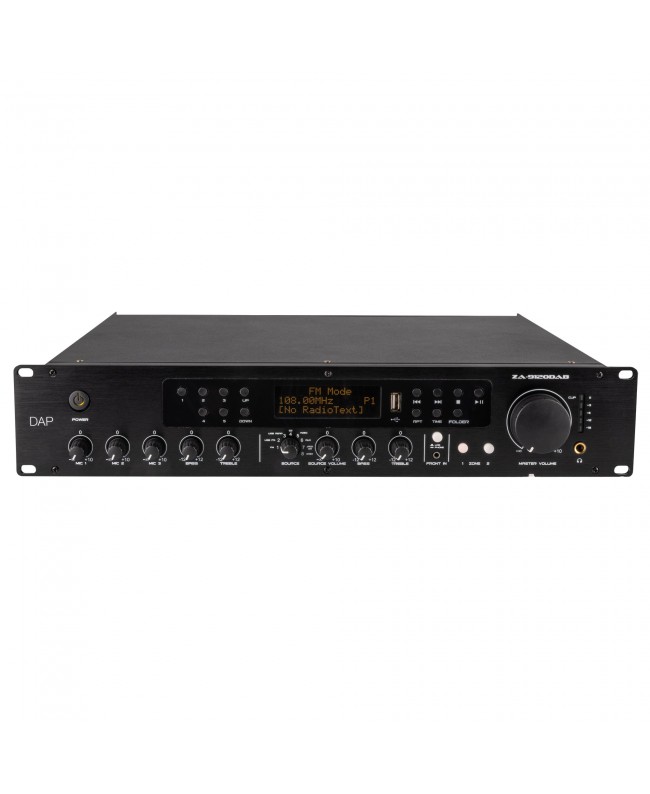

DAP ZA-9120DAB

The DAP ZA-9120DAB is a 120-watt 100 V 2-zone mixer amplifier and media player. It is equipped with 3 microphone/line inputs with +48 V phantom power and you have a choice of 8 audio sources, including a built-in USB player and FM/DAB+ tuner from which you can store up to 10 radio stations.

The ZA-9120DAB has several functions. For example, it has a special input for emergency announcements (such as a fire alarm) that will override all other inputs. It is also equipped with an adjustable chime function, ducking level control, loop-through connection and a line output that can be used as a line output, for music only or microphones only. Besides, each zone also has its own line outputs for being able to connect extra amplifiers, allowing you to extend the PA system if needed.

This 100 V zone mixer amplifier is designed to support a PA system intended for intercommunication or background music in public and business areas such as convention halls, shopping malls, dining halls, auditoriums and recreational areas. It has an integrated protection circuit to protect against overload and short circuit of the output. This results in very high reliability and easy installations without the need for additional audio processors.

• 4 Stereo in, 3 mic in, FM/DAB+ tuner and USB player
• Line-output per zone and special output for only music/mics
• Chime and Ducking
• Loop-through connection
• 19 2U rack version
