DAP ZA-9250VDAB

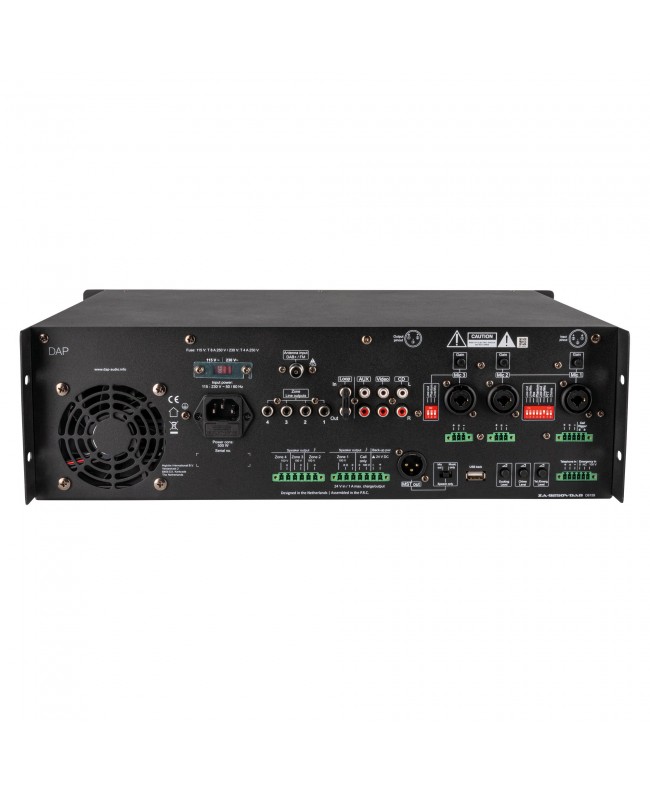

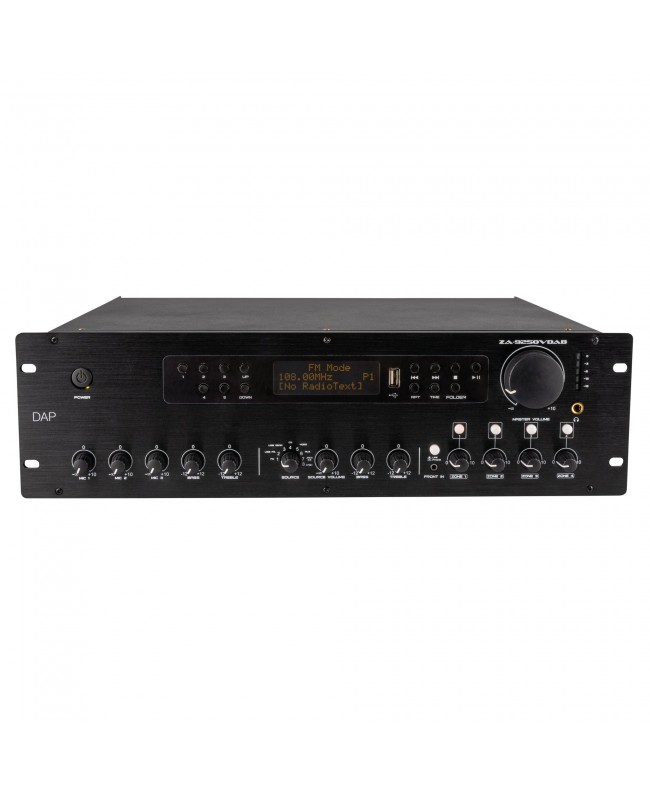

The DAP ZA-9250VDAB is a 250-watt 100 V 4-zone mixer amplifier and media player with zone volume control. The 3 microphone/line inputs are equipped with +48 V phantom power and you have a choice of 8 audio sources, including a built-in USB player with two USB inputs (front and rear) and FM/DAB+ tuner with which you can store up to 10 audio stations.

The ZA-9250VDAB has several functions. For example, it has a special input for emergency announcements (such as a fire alarm) that will override all other inputs. It is also equipped with an adjustable chime function, ducking level control, loop-through connection and a line output that can be used as a line output, for music only or microphones only. Besides, each zone also has its own line outputs for being able to connect extra amplifiers, allowing you to extend the PA system if needed.

This 100 V zone mixer amplifier is designed to support a PA system intended for intercommunication or background music in public and business areas such as convention halls, shopping malls, dining halls, auditoriums and recreational areas. It has an integrated protection circuit to protect against overload and short circuit of the output. This results in very high reliability and easy installations without the need for additional audio processors.

• 4 Stereo in, 3 mic in, FM/DAB+ tuner and USB player
• Line-output per zone and special output for only music/mics
• Chime and Ducking
• Loop-through connection
• 19 3U rack design
