Rondson AM 60N
  • -25%
  • New

Rondson AM 60N

€596.00
€447.00 -25%
Tax included
Lowest price within the last 30 days: €447.00

Preamplifier / amplifiers 60 W, 4 Inputs, 8 ohm, 25 / 70 / 100 V, 220 - 240 V AC / 12 V DC

Out of Stock

Free shipping

Compare

wishlist

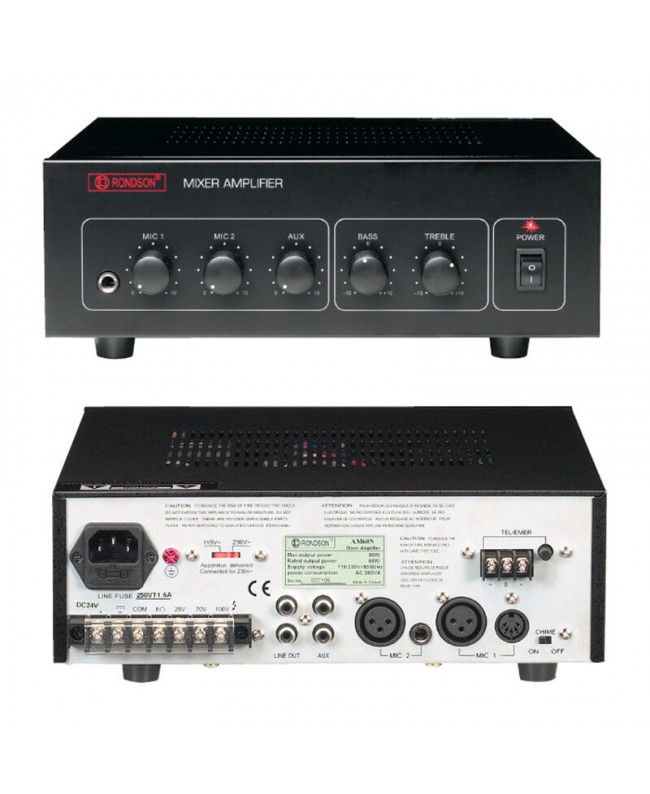

Rondson AM 60N



Integrated amplifier / mixer with 100 V line output, 60 W power. In addition to the loudspeaker outputs at 25, 70 and 100 V, there is the 8 ohm low impedance one. Operation with 230 VAC or 12 VDC mains for AM 20N, AM 40N and 24 VDC for AM 60N.

1 Balanced microphone input (jack / XLR) MIC 2. These 2 inputs can be switched to Phantom-powered microphone (internal operation), a chime (2 tones and #34;ding dong and #34;) can be activated by the MIC 1 microphone connected to the 5-pin DIN socket (RONDSON PA 100D call station) or to the stereo jack socket on the front panel (PA 100J call station)

  • Main features
  • 1 Balanced DIN / jack / XLR microphone input MIC 1 (priority) via Talk Over or remote control
  • 1 Telephone input, super priority emergency message
  • 2 RCA AUX input (tuner, CD, etc.)
  • 1 Modulation output for connection of a power unit
  • Type: amplifier / preamplifier
  • Power supply: 115 - 230 VAC 50/60 Hz - switchable +-10%24 VDC
  • Output power: 60 WRMS90 W max.
  • Speaker outputs: 8 ohm - 25 / 70 / 100 V
  • Line output: 1 V, 600 ohm
  • Inputs: MIC 1 / 2: 1 mV, 250 ohm symmetrical power supplyconfigurable Phantom power supplyAUX: 200 mV, 47 kohm asymmetricalTEL: 0.1 to 1 V, 600 ohm, symmetrical, adjustable
  • Frequency response: MIC 1 / 2: 60 Hz - 15 kHz +-3 dBAUX: 60 Hz - 15 kHz +-3 dBTEL: 100 Hz - 15 kHz +-3 dB
  • THD: less than 1% at 1 kHz at RMS power
  • S/N ratio: all CCN volume settings: 75 dB below nominal powerMIC 1 / 2: 60 dB below RMS powerAUX: 70 dB below RMS powerTEL: 70 dB below RMS power
  • Tone settings: bass: +-10 dB at 100 Hz - treble: +-10 dB at 10 kHz
  • Settings: MIC 1 / 2: volume controlAUX: volume control - Tone: bass and trebleTEL: entry levelCHIME: inter ON/OFF115 - 230 V: voltage switch
  • Display: power ON indicator light
  • Consumption: mains: 170 W, battery: 5 A
  • Chime: 2 tone ding dong preceding 1 microphone call
  • Priority: by detection / MIC 1 connected to DIN or jack
  • Priority levels: TEL/EMER MIC 1 MIC 2 AUX 3 2 1 1
  • Option 19 rack mounting 2 U: mounting brackets EQ 2040
  • Dimensions (W x D x H): 27.2 x 30 x 8.8 cm
  • Weight: 7.2 kg

RON-00504
