Rondson AM 500 Amplifiers
  • -25%
  • New

Rondson AM 500

€1,762.00
€1,320.00 -25%
Tax included
Lowest price within the last 30 days: €1,320.00

500 W RMS integrated amplifier for 100 V lines and low impedance

Out of Stock

Free shipping

Compare

wishlist

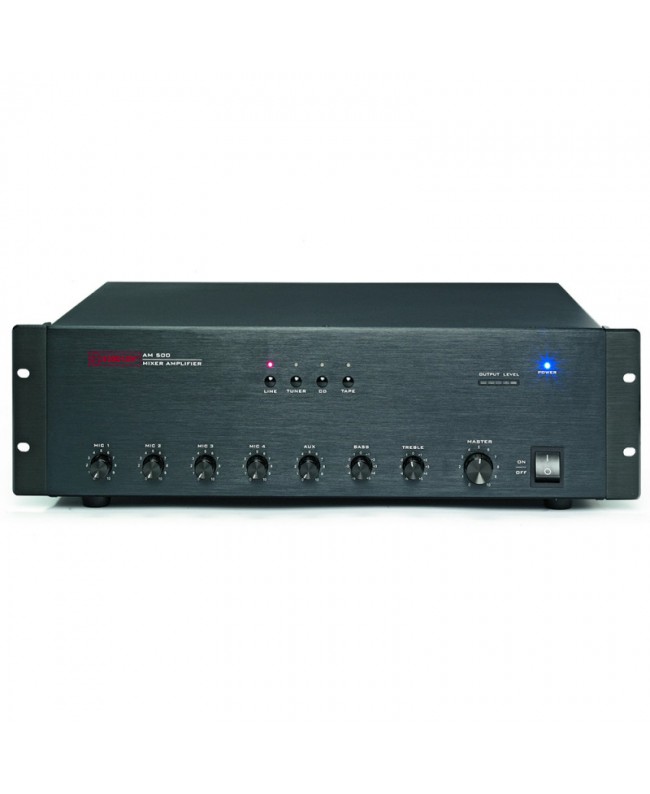

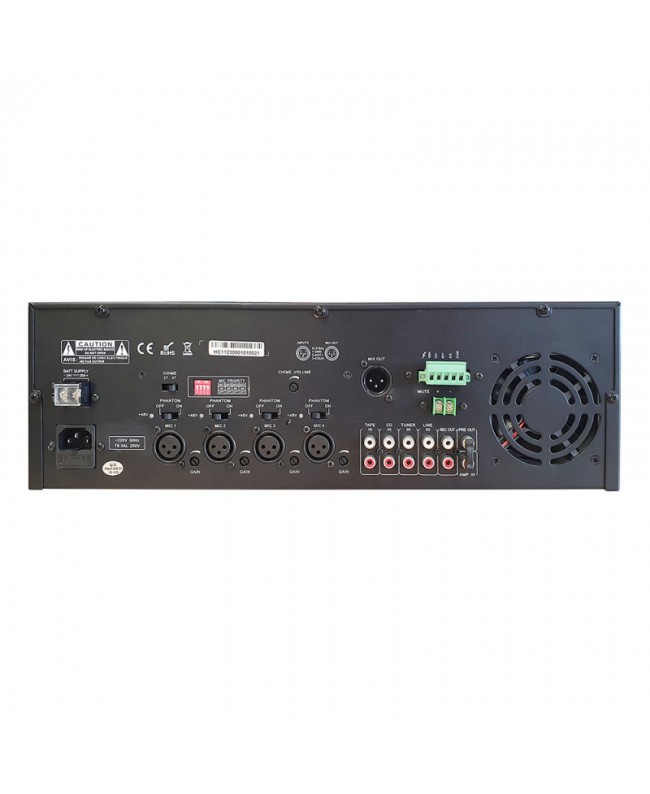

Rondson AM 500



500 WRMS integrated amplifier for 100 V lines. It offers 70 or 100 V and 4 - 16 ohm low impedance speaker outputs. Works with 115 - 230 VAC 50/60 Hz or 24 VDC.

  • Main features
  • 4 Balanced XLR inputs with switchable talk over priority and Phantom powering
  • 4 RCA auxiliary inputs
  • 1 REC output
  • 1 AMP IN input and PRE OUT output for signal processing or power amplifier
  • MASTER volume, bass / treble, MIC 1-4 and AUX adjustment
  • Power indicator and output level meter
  • Loudspeaker outputs 50, 70, 100 V or 4 - 16 ohm on screw terminal block
  • Thermal, overload and short circuit protection
  • Music-cut function mutes the sound system
  • Power supply: 115 - 230 VAC 50/60 Hz - 24 VDC
  • Output power: 500 W
  • Consumption: 750 W
  • Speaker outputs: in low impedance: 4 - 16 ohm
  • 50, 70 And 100 V
  • Outputs / sensitivity: REC OUT: 200 mV / 470 ohm asymmetrical RCA
  • PRE OUT: 1000 mV /470 ohm asymmetrical RCA
  • Inputs / sensitivity: MIC 1 to 4: 2.5 mV / 2 kohm XLR symmetrical
  • AUX Line: 350 mV /10 kohm asymmetrical RCA
  • AMP: 1000 mV /10 kohm asymmetrical RCA
  • Tone settings: Bass: +10 dB at 100 Hz
  • Treble: +10 dB at 10 Hz
  • Priority: By detection on MIC inputs 1 to 4
  • (30 DB attenuation)
  • Phantom power supply: + 48 V with LED display
  • Total harmonic distortion: 0.1%
  • Frequency response: 50 Hz - 16,000 Hz
  • S/N ratio: MIC: greater than 66 dB
  • AUX: greater than 80 dB
  • Indicators: power-on
  • Output level
  • Source selector
  • Dimensions (W x D x H): 484 x 359 x 132 mm
  • Weight: 22.6 kg

RON-02074
