Segon Professional Audio AME-60-2Z

AME-60-2Z is a two-zone integrated amplifier capable of delivering 60 W of output power and driving both low impedance (4 ohms) and 100 V line loudspeakers. It works with 230 V mains power or 24 VDC and integrates a multimedia module with USB port for playing MP3 or WMA files from pen drive or TF card, with a maximum capacity of 16 GB in FAT32 format, and RDS FM tuner and #43; Bluetooth interface. It is possible to record simple tracks directly from some inputs to a USB stick or TF card.

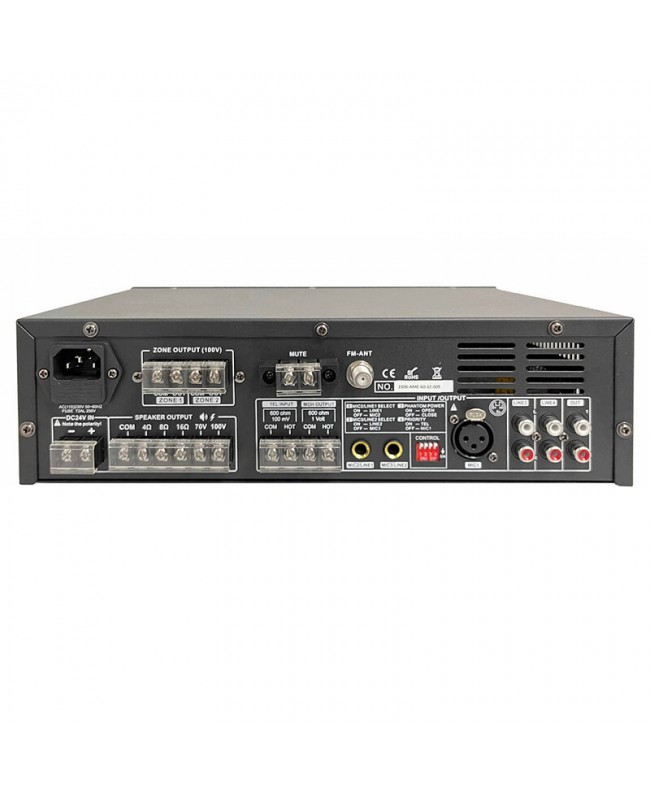

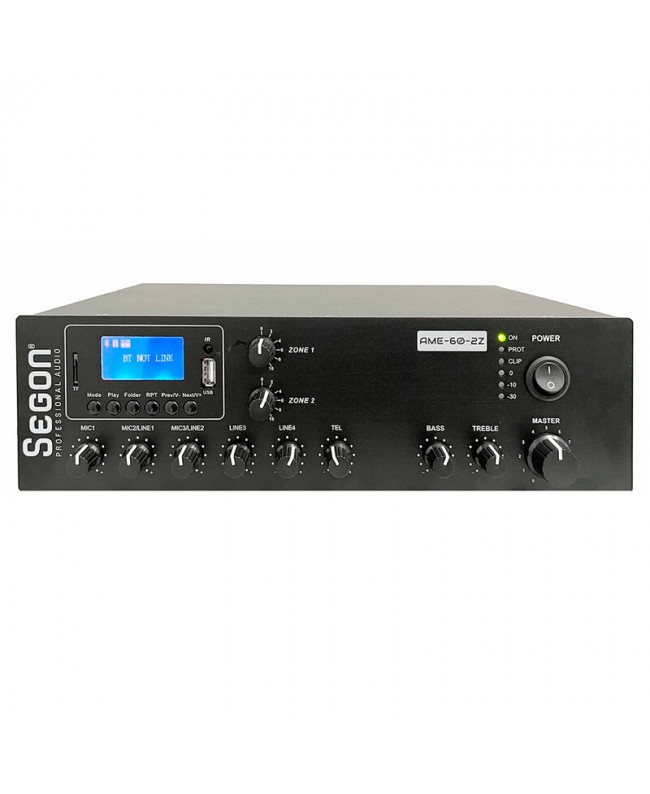

It offers six total inputs with individual gain controls on the front panel and bass / treble tone control. The MIC1 input is on a balanced XLR connector, MIC2 / LINE1 and MIC3 / LINE2 on jack connectors. LINE3 and LINE4 are on stereo RCA, as is the pre out output, and a 100 m. V / 600 ohm telephone input.

Features include Phantom power for microphones and priority and output for two 100 V zones, as well as a main output for 70 / 100 V or 4, 8 and 16 ohm speakers. The device includes an LCD display, power indicators, VU meter, clip and protection.

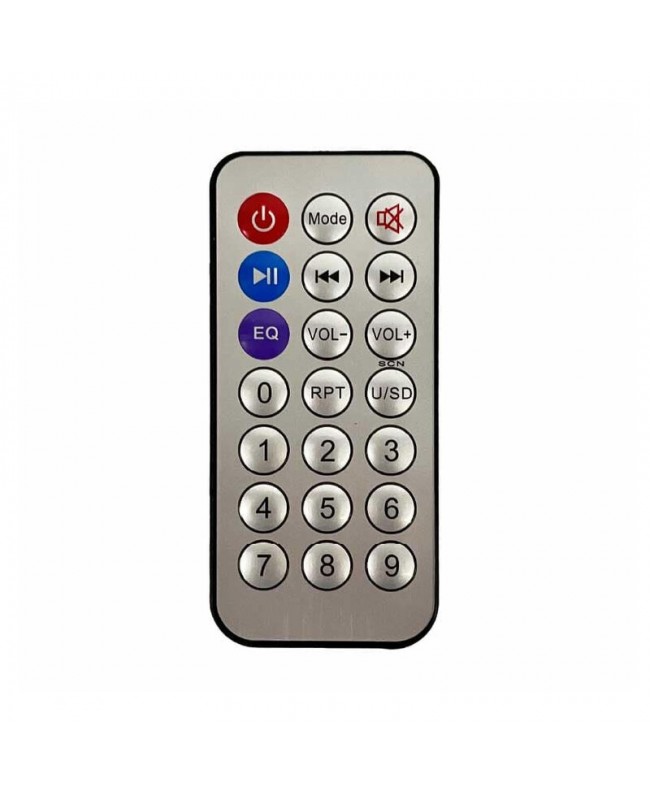

Protections are against overheating, short circuits and overloads. Supplied with remote control.

• User benefits
• Six inputs in total between microphone and line, including a telephone input
• Multimedia section with MP3 file player from USB sticks / TF cards
• Outputs on both 100 V line and low impedance
• Two zones with independent volume control
• Possibility of being powered at 24 VDC
• Areas of use
• Bars, restaurants, and in general places where there are up to two zones to be sounded independently
