DAP CA-4500 DSP Amplifiers
  • -12%

DAP CA-4500 DSP

€750.00
€661.00 -12%
Tax included
Lowest price within the last 30 days: €661.00

4-Channel compact amplifier with DSP (4x 500 W)

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 18/08/2026? Order within 15 hours and 0 minutes

Free shipping

Compare

wishlist

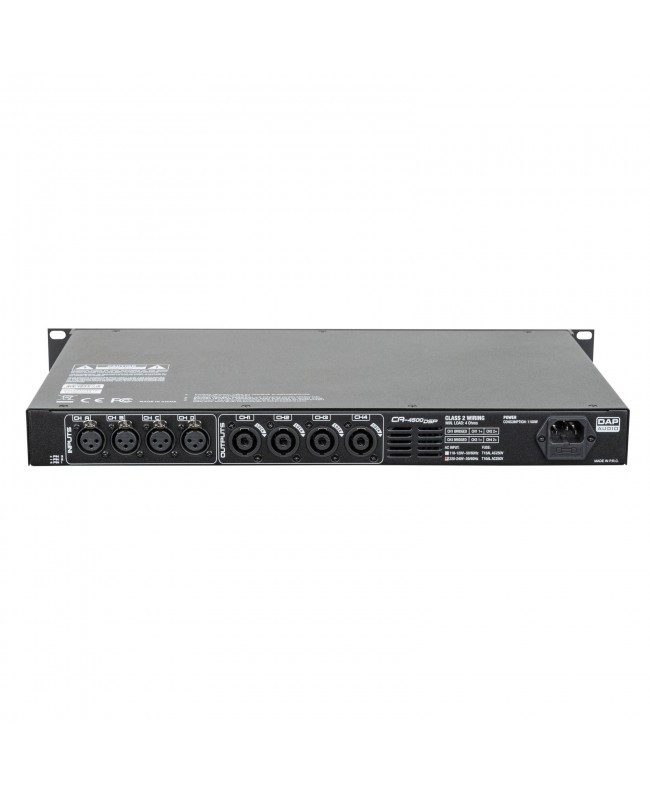

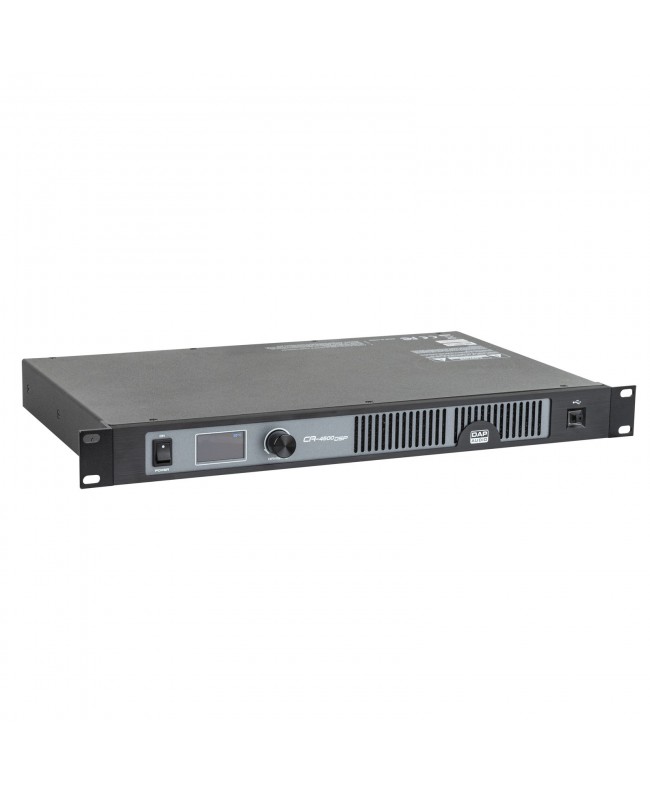

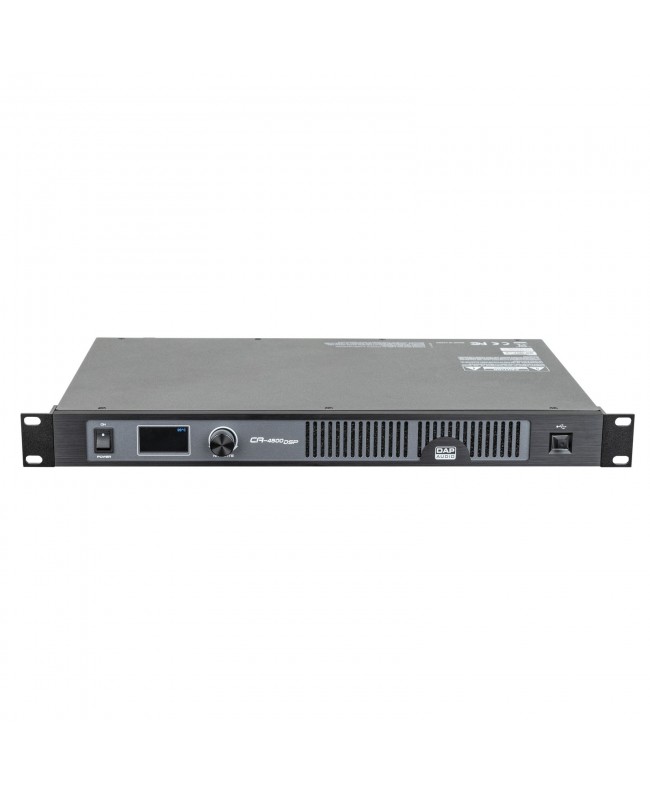

DAP CA-4500 DSP



The DAP CA-4500 DSP is a high power digital 4-channel amplifier with 500 W in 4 Ohm and four 500 watt speakON outputs. It can drive a 70/100 V speaker system and can deliver two channels of 1000 watt each in bridge mode. This amplifier is especially suitable for the installation market.

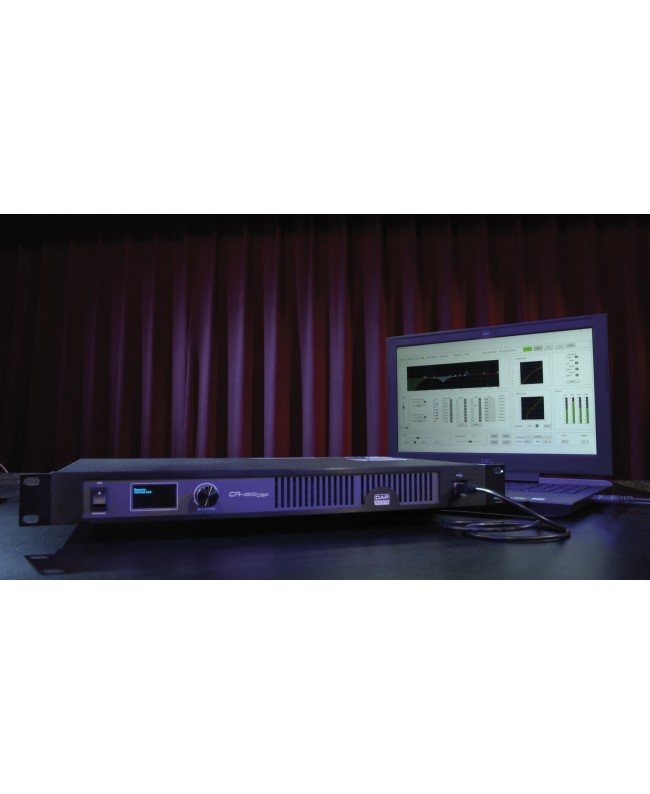

The CA-4500 includes a powerful DSP. All parameters, such as 8-band EQ settings, delay, compression, noise gate and more, are configurable manually or via included software on any Windows PC/laptop. Besides, all four inputs and output channels are freely routable.

This amplifier not only has many functionalities but is also safe to use thanks to advanced protection circuits, such as soft start technology and a clip limiter. All of this fits in a compact 19-inch design with a 1 unit height.

  • Suitable for the installation market (70/100 V)
  • Powerful digital DSP
  • Bridge and stereo mode
  • SMPS and Class D technology
  • OLED display and PC configurable
  • 1U suitable for 19 rack
  • 2 Ohms Stable: No
  • Output per Channel into 8 ohms at 1 kHz: 250 W
  • Output per Channel into 4 ohms at 1 kHz: 500 W
  • Bridge Output into 8 ohms at 1 kHz: 1000 W
  • Output per Channel into 8 ohms from 20 Hz - 20 kHz: 250 W
  • Output per Channel into 4 ohms from 20 Hz - 20 kHz: 500 W
  • Bridge Output 8 ohms from 20 Hz - 20 kHz: 1000 W
  • Bridge Output 100 V: 1000 W
  • Output Channels: 4
  • Output Gain: 34 dB
  • Output Mode: 4-channel / Bridge / Mono / Stereo
  • Output Connector: Speaker Connector 4 pole
  • Mono Inputs: 4
  • Mono Input Connector: 3-pin XLR
  • Mono Input Impedance: 20000 Ω
  • Unbalanced Mono Input Sensitivity: 1 dBv
  • THD Level %: 0.15 %
  • Signal-to-noise Ratio: 96 dB
  • AD/DA Convertor Sample Rate: 96 kHz
  • Audio Latency: 1.5 ms
  • Slew Rate: 25 V/μs
  • Amp Technology: Class D
  • Damping Factor: 180 :1
  • Crosstalk: 60 dBu
  • Frequency Response Minimum: 20 Hz
  • Frequency Response Maximum: 20000 Hz
  • Supported Operating Systems: Windows
  • DSP: Yes
  • Parametric Input Equalizer: 8 Bands
  • Parametric Output Equalizer: 8 Bands
  • Input Equalizer Types: Bell / High Shelf / Low Shelf / Notch
  • Output Equalizer Types: High Shelf 6 / High Shelf 12 / Low Shelf 6 / Low Shelf 12
  • Crossover Filter Types: Bessel / Butterworth / Linkwitz Riley
  • Crossover Slopes: 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
  • Dynamics Processing: Compressor / Gate / Limiter
  • Phase Reverse: Yes
  • Output Delay (Max.): 62.4 ms
  • User Presets: Yes
  • Control Mode: Manual / PC Software
  • Display: OLED
  • Power Supply: 220-240 V AC 50 Hz
  • SMPS: Yes
  • Power Consumption: 1741 W
  • Fuse: 10 A
  • Power Connector In: IEC
  • Data Connector In: USB
  • Amplifier Airflow: Front to back
  • Amplifier Cooling: Radial Fan
  • Height (mm): 44 mm
  • Width (mm): 483 mm
  • Length (mm): 285 mm
  • Installation Depth (Excl. Connector): 285 mm
  • Flightcase Size: 19
  • Rack Units: 1 U
  • Housing: Metal
  • Colour: Black
  • Finish: Powder Coating
  • Weight: 5.9 kg
  • IP Rating: IP20 (indoor use only)
  • Handles: No
  • Electronic Protection: Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Softstart / Thermal
  • Included Cables: IEC cable
  • Included Accessories: Rubber feet

D4515

Data sheet

Channels
4 channels
Color
Black
