Omnitronic XPA-700 Amplifier
  • New

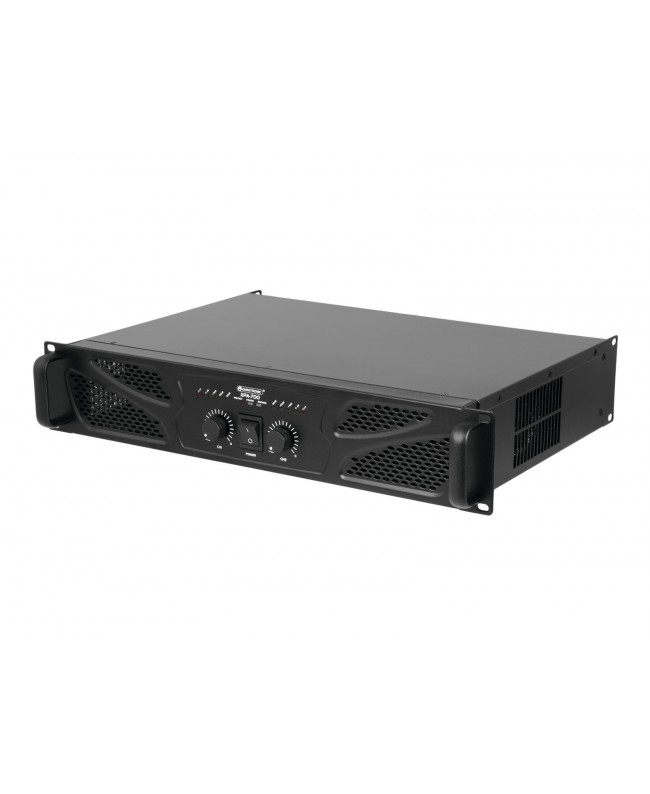

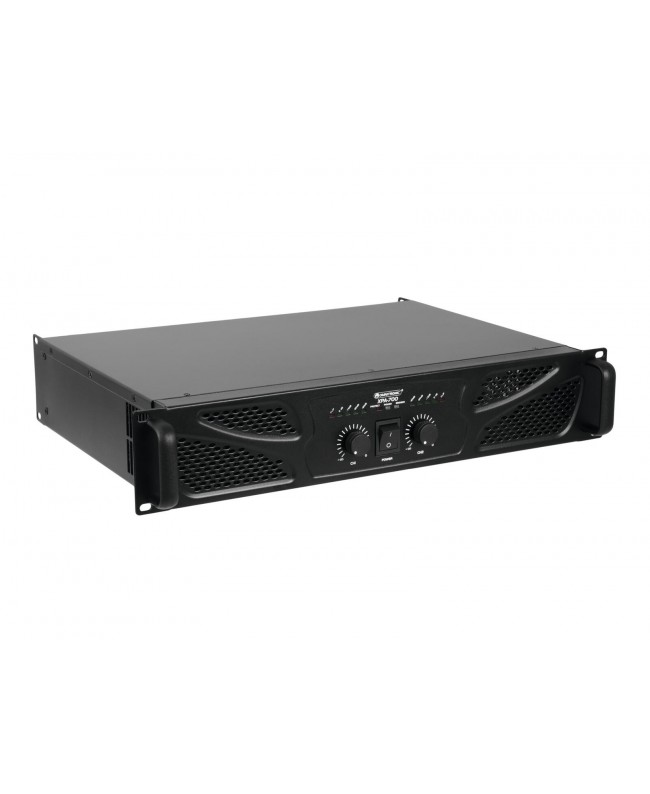

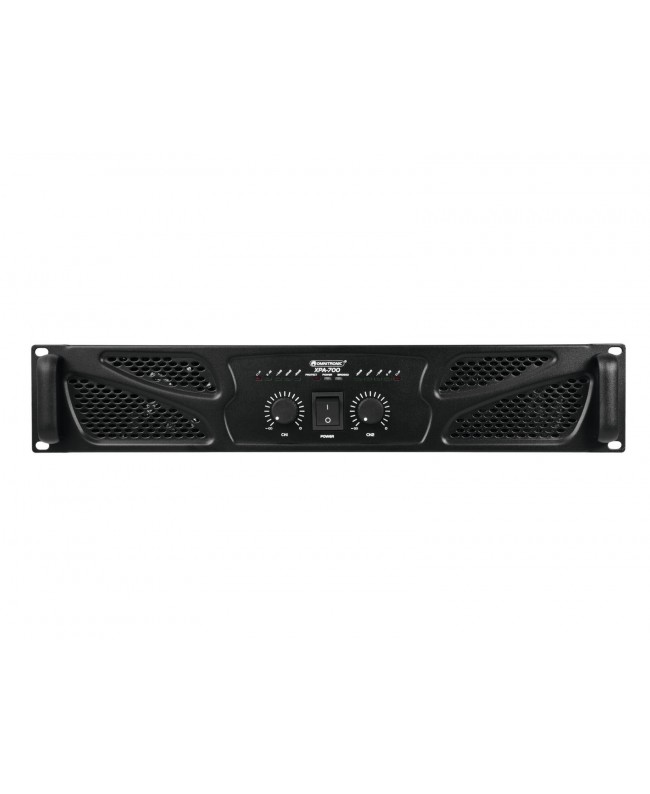

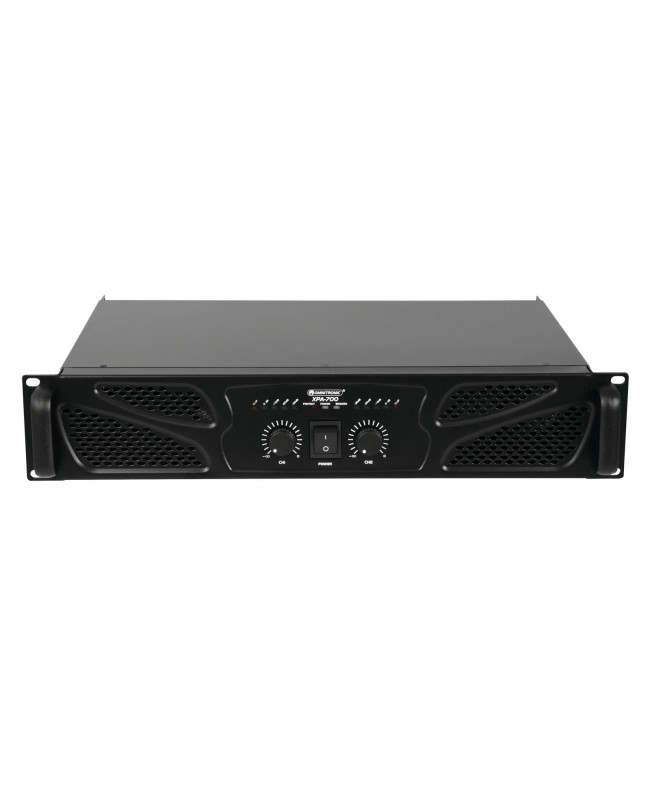

Omnitronic XPA-700 Amplifier

€193.00
Tax included

Class AB PA amplifier with limiter, 2 x 350 W RMS (4 ohms), 2 x 240 W RMS (8 ohms)

Out of Stock

Free shipping

Compare

wishlist

Omnitronic XPA-700 Amplifier



  • 2 operating modes can be selected (stereo or bridged)
  • 2 level controls
  • Each channel with LED for activated protective circuit (protect) and output meter with clip LED
  • Signal inputs via XLR or 6.3mm jack connectors
  • Speaker outputs via lockable speaker jacks and pairs of screw terminals
  • Additional Speaker plug for 8-ohm bridge operation
  • Class AB circuitry
  • (19) 48.3 cm rack installation 2 U
  • Highly efficient air flow from front to rear
  • The device is cooled by temperature-controlled fan
  • For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
  • Power supply: 115/230 V AC, 50/60 Hz
  • Power consumption: 495 W 1/8 power
  • Output power: 2 x 350 W RMS (4 ohms), 2 x 240 W RMS (8 ohms), 700 W RMS bridged (8 ohms)
  • Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
  • Frequency range: 20 - 20000 Hz
  • S/N ratio: 95 dB
  • THD: 0.5 % at 1 kHz
  • Cooling: 1 x temperature-controlled fan , air flow from front to rear
  • Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
  • Circuitry: Class AB
  • Slew rate: 20 V/µs
  • Damping factor: 350
  • Control elements: Power switch, level control per channel, groundlift selector, limiter selector, mode switch (stereo/bridged)
  • Controls: Short-circuit; overheat; DC voltage; power on/off transients; softstart
  • Status LED: Power, level meter, clip, bridged, protect

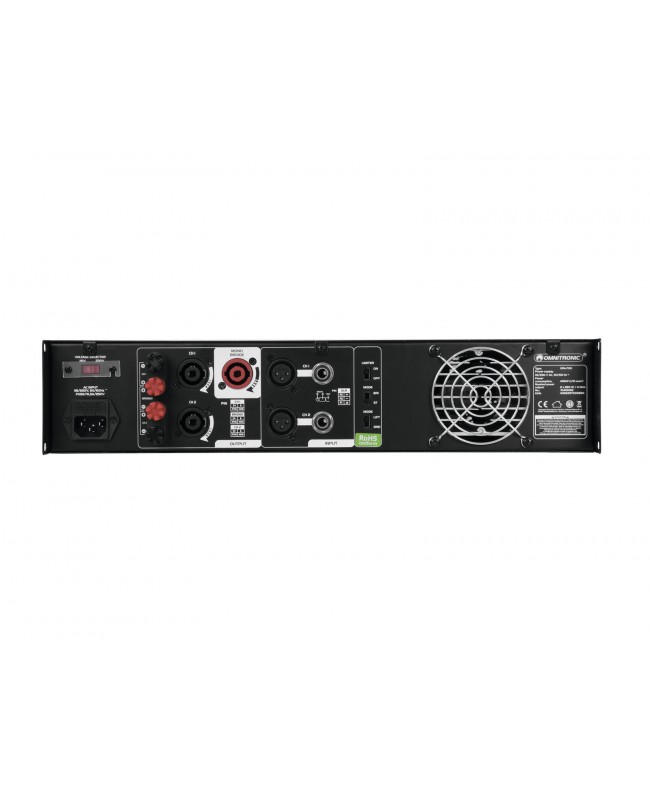

  • Connections: Input: line via 2 x 3-pin XLR, Input: line via 2 x 6.3 mm jack socket (stereo) mounting version, Output: speaker via 2 x speaker built-in socket (F), Output: speaker via screw terminal, Output: speaker (bridge) via 1 x speaker built-in socket (F), Output: speaker (bridge) via screw terminal
  • Input sensitivity: 1.4 V
  • Max. level: Input: +21 dBV, Input: +9 V
  • Housing design: (19) 48.3 cm rack installation 2 U
  • Dimensions: Width: 48.3 cm, Depth: 35.4 cm, Height: 8.9 cm
  • Weight: 8.70 kg

Scope of delivery

  • 1 x amplifier
  • 1 x user manual
  • 1 x power cord
  • 4 x foot
  • 4 x screw
