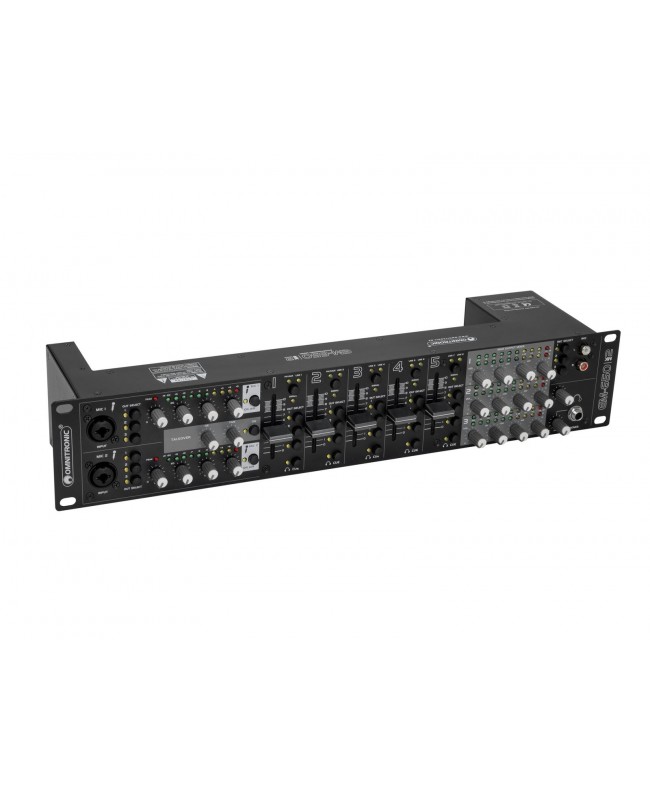

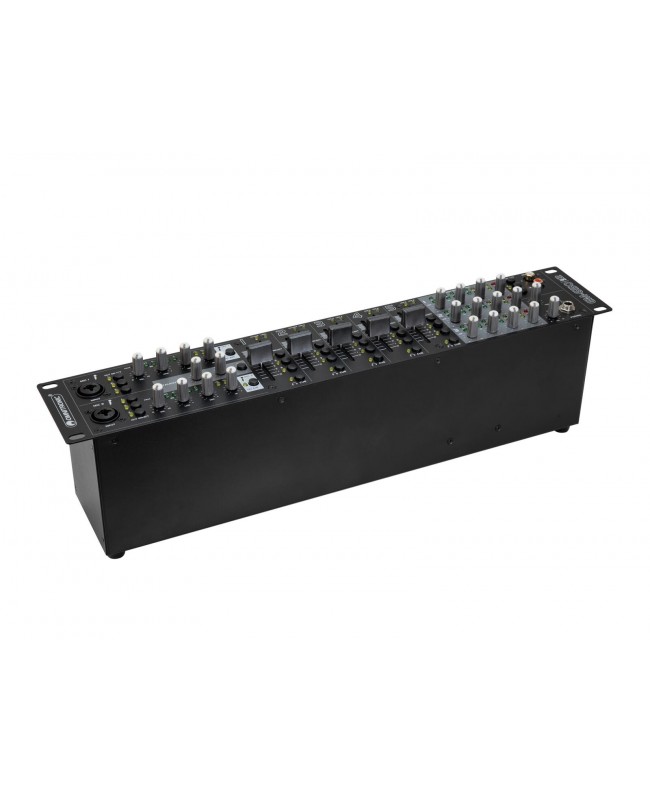

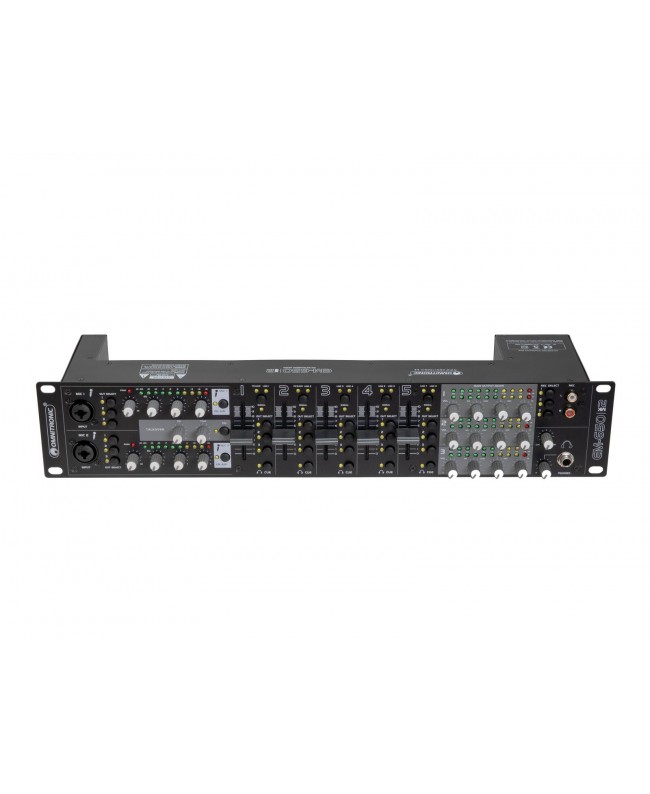

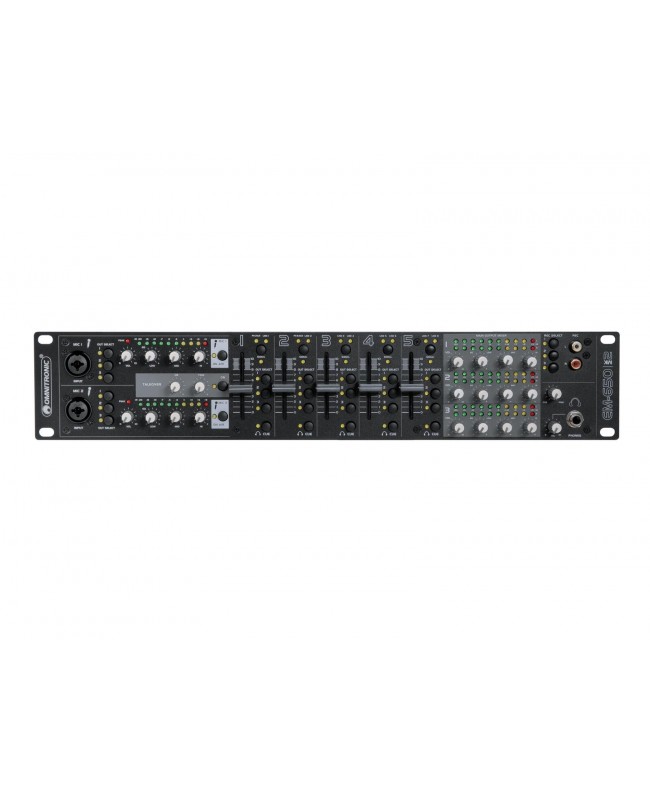

Omnitronic EM-650B MK2 Entertainment Mixer

• 5 input channels with recessed gain controls on the rear panel, signal LED and smooth channel faders
• 3 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
• (19) 48.3 cm rack installation 2 U
• For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school

Scope of delivery

• 1 x mixer
• 1 x user manual
• 1 x power cord
• 1 x RCA cable

• Power supply: 230 V AC, 50 Hz
• Protection class: Protection class II
• Power connection: Power supply cord with Euro plug (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 60 dB line, 70 dB phono
• THD: Line/phono 0.02 % at 1 kHz
• Gain: Microphone 52 dB, Line 17 dB, Phono 53 dB
• Housing color: Black
• Zone output: 3 adjustable zones
• Control elements: Power switch, regular talkover, source selector
• Status LED: Signal, chanal level meter, master level meter, peak, chanal source; CUE, talkover, ON AIR, routing

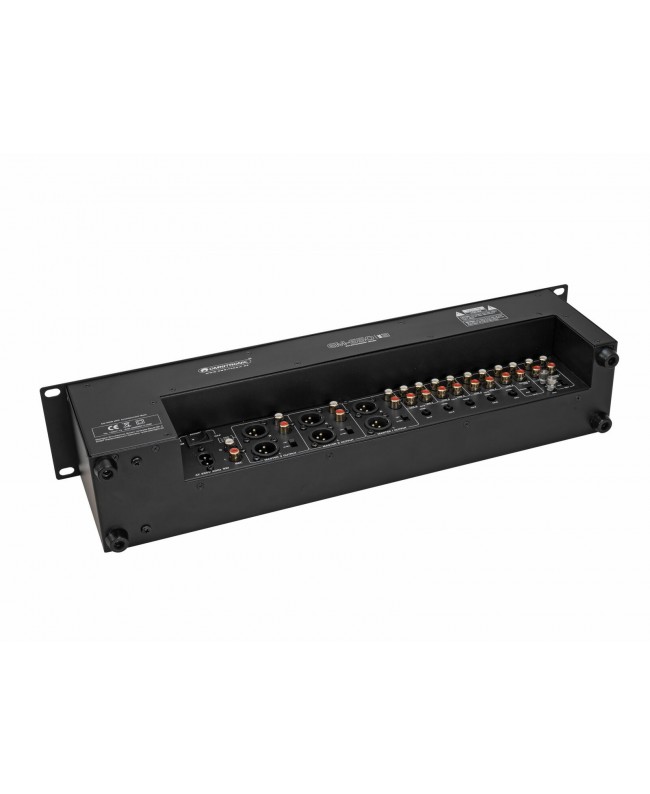

• Connections: Input: microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line/phono via 2 x stereo RCA, Input: line via 8 x stereo RCA, Output: master via 3 x 3-pin XLR, Output: master via 3 x stereo RCA, Output: rec. via 2 x stereo RCA, Output: headphones via 1 x 6.3-mm-jack (bal.)
• Channels: Input chanel: 2 x stereo with line-line/phono switch via RCA, channel control via fader, 3-band tone control EQ, routing master bus switch, gain control, source selector, CUE switch, Input chanel: 3 x stereo with line-line switch via RCA, channel control via fader, routing master bus switch, gain control, source selector, CUE switch, Microphon chanal: 2 x mono via Combination socket (XLR/jack), channel control via rotary dial, ON AIR switch, routing master bus switch, talkover switch, Master output: 3 x stereo via XLR or RCA, channel control via rotary dial, 3-band tone control EQ, Rec. output: 1 x stereo via RCA, routing master bus switch, Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix function
• Housing design: (19) 48.3 cm rack installation 2 U
• Dimensions: Width: 48.3 cm, Depth: 14.8 cm, Height: 8.9 cm
• Weight: 3.10 kg
