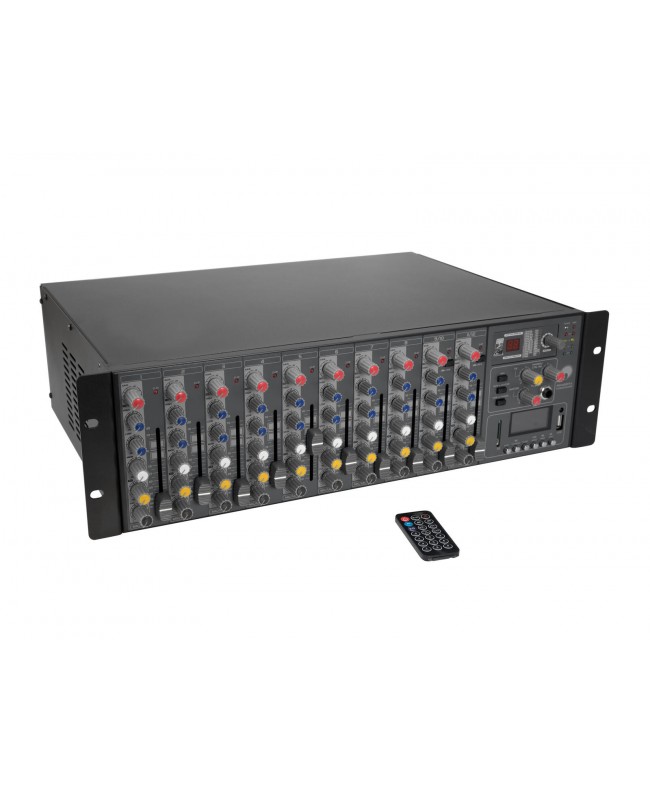

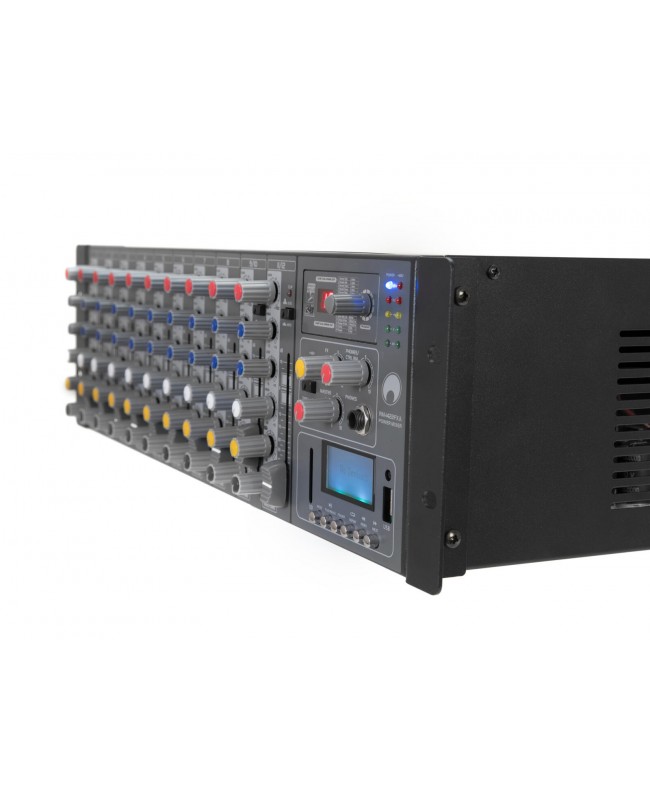

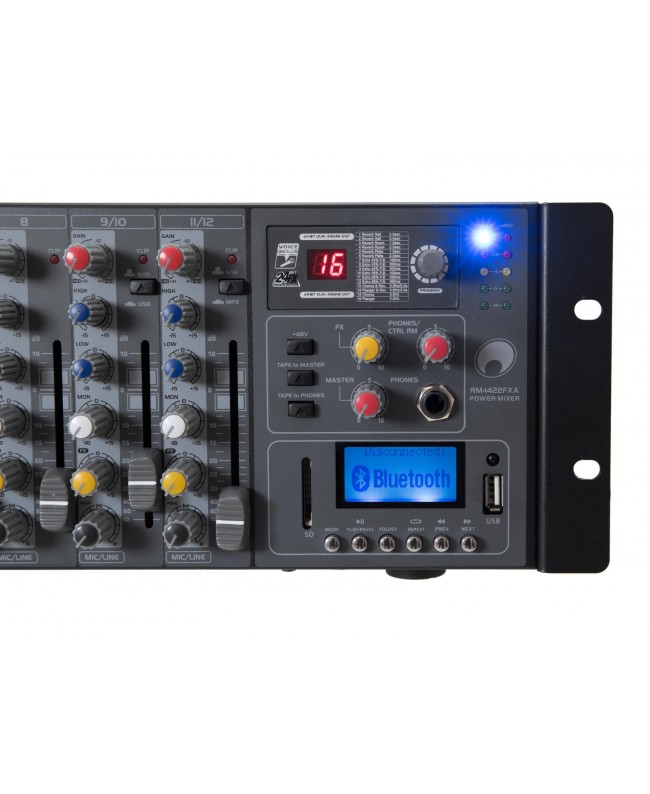

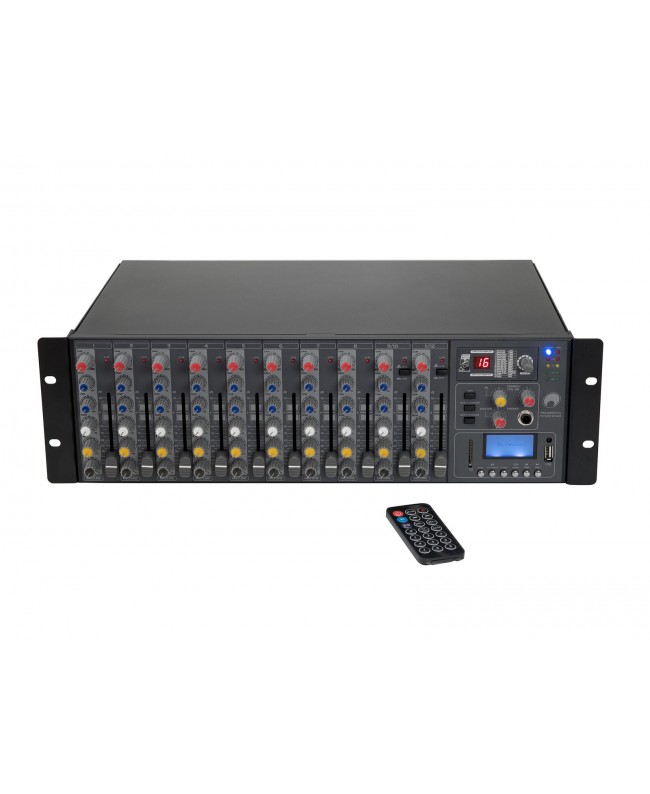

Omnitronic RM-1422FXA USB Rack Power Mixer

• Audio mixer and digital amplifier in a 19 housing
• Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
• 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
• 2 stereo input channels with 2-way EQ, balance control and channel fader
• 8 channel inserts
• Tape input and output
• Separate main mix and control room outputs
• 2 AUX send outputs
• Adjustable headphones output
• +48 V phantom power, can be switched centrally
• 4-digit stereo LED level display
• (19) 48.3 cm rack installation 3 U
• Digital signal processor 24 bit with 16 effects
• Control via IR remote control; Bluetooth
• For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental

Scope of delivery

• 1 x remote control
• 1 x battery
• 1 x user manual
• 1 x power cord
• 1 x mixer
• 1 x declaration of conformity

• Power supply: 230 V AC, 50 Hz
• Power consumption: 115 W 1/8 power
• Protection class: Protection class I
• Output power: 2 x 250 W RMS (8 ohms), 2 x 400 W RMS (4 ohms)
• Power connection: Power supply cord with safety plug (provided)
• Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
• Frequency range: 20 - 20000 Hz
• S/N ratio: 89 dB
• THD: 0.05 % at 1 kHz
• DSP: Digital signal processor 24 bit with 16 effects
• Phantom power: Or 48 V DC
• Control: IR remote control; Bluetooth
• Bluetooth device name: Bluetooth
• Audio player: USB + SD + Bluetooth
• Control elements: Level control per channel, Master control, tone control, phantom power switch

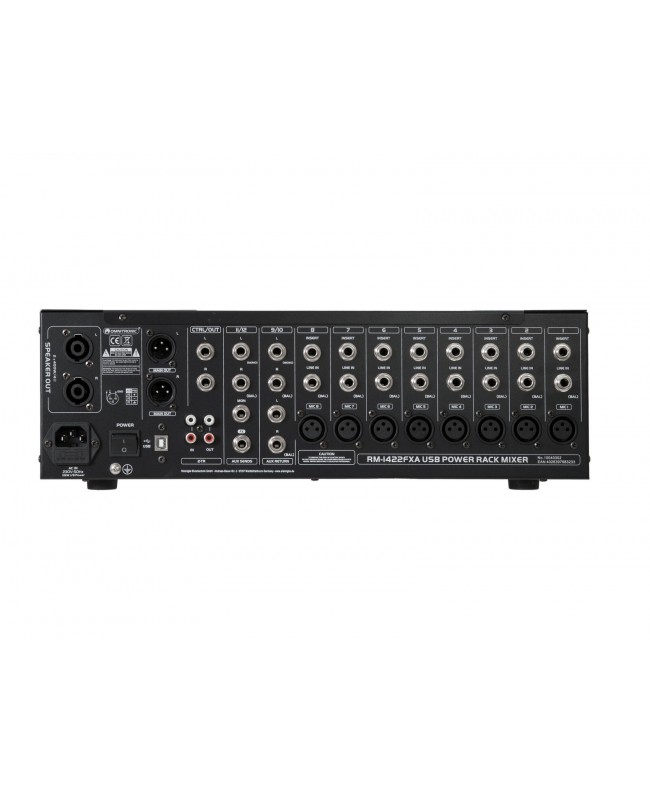

• Connections: Input: microphone via 8 x 3-pin XLR, Input: line via 12 x 6.3 mm jack socket (stereo) mounting version, Input: line via 1 x stereo RCA, Input: AUX via 2 x 6.3 mm jack socket (stereo) mounting version, Output: AUX via 2 x 6.3 mm jack socket (stereo) mounting version, Output: rec. via 1 x stereo RCA, Output: master via 2 x 3-pin XLR, Output: speaker via 2 x speaker built-in socket (F)
• Channels: Input chanel: 2 x stereo via jack, 2-band tone control EQ, gain control, panoramacontol
• Input channels: 8 x mono via XLR or jack
• Equalizer: Channel: 8 x 2-band tone control mono
• Available storage media: USB devices/SD cards
• USB port: Type A
• Color: Black
• Housing design: (19) 48.3 cm rack installation 3 U
• Dimensions: Width: 48.3 cm, Depth: 34 cm, Height: 13.35 cm
• Weight: 6.55 kg
