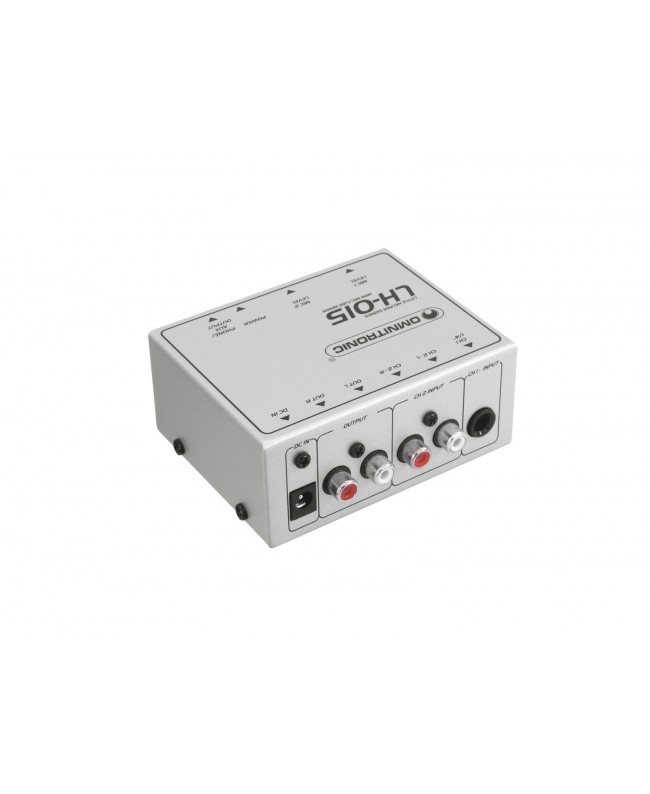

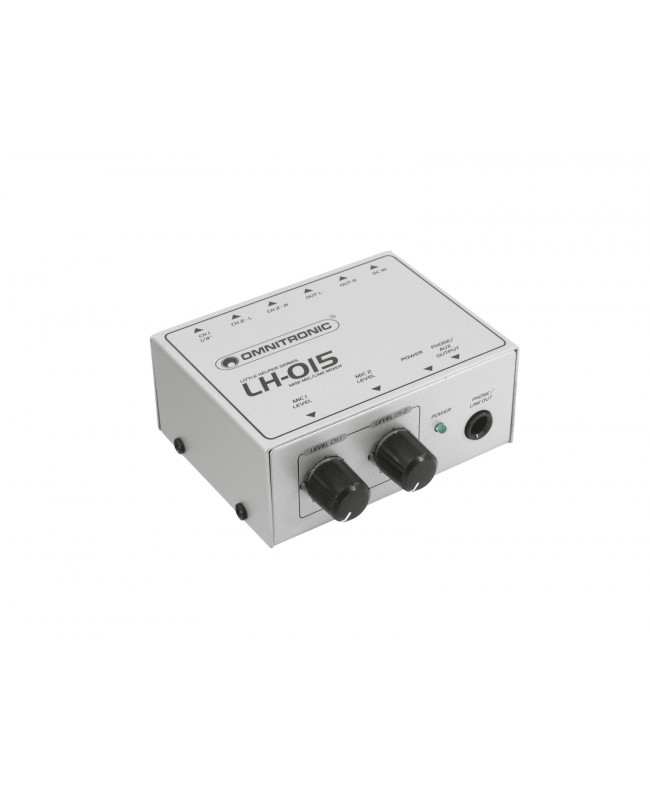

Omnitronic LH-015 2-channel Mic/Line Mixer

• Distributes the signal of 2 audio sources (microphones, instruments or line level units) to 1 mono output
• 1 mono mic/line input (6.3 mm jack) with separate level control
• 1 stereo line input (RCA) input with separate level control
• 2 mono master outputs (RCA and 6.3 mm jack) e.g. for PA amplifier, mixer and headphones

Scope of delivery

• 1 x user manual

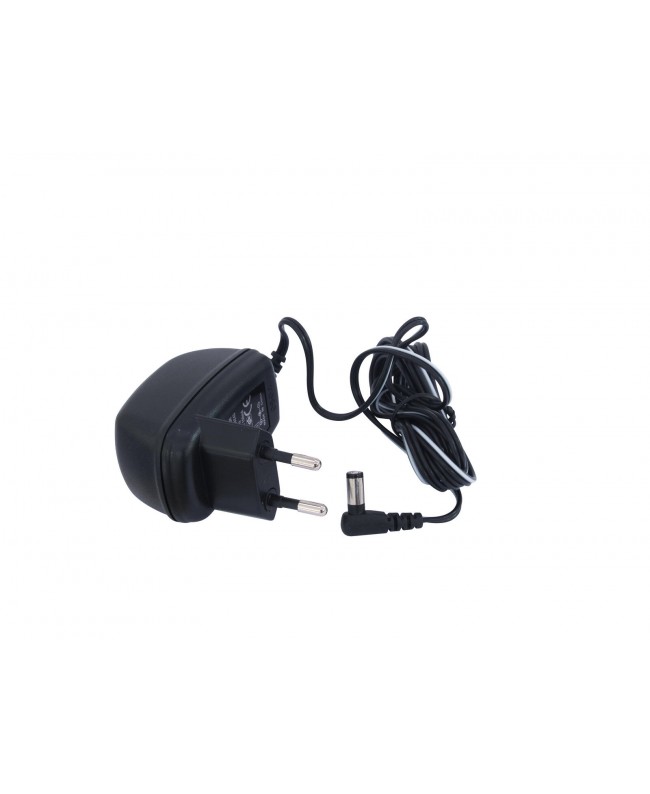

• 1 x external mains adapter
• 4 x foot
• 1 x mixer

• Power supply: 12V 150 mA
• Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 100 dB
• Impedance: Input: microphone 10 kOhm, Input: line 20 kOhm, Output: 50 Ohm
• Gain: Microphone 32 dB, Line 20 dB
• Dimensions: Width: 9.5 cm, Depth: 7.3 cm, Height: 4 cm
• Weight: 0.50 kg
