Audiophony MPX12
  • New

Audiophony MPX12

€501.00
Tax included

12 CH analogue mixer with MIC / line inputs, compressor and effects, USB / SD / BT player

Out of Stock

Free shipping

Compare

wishlist

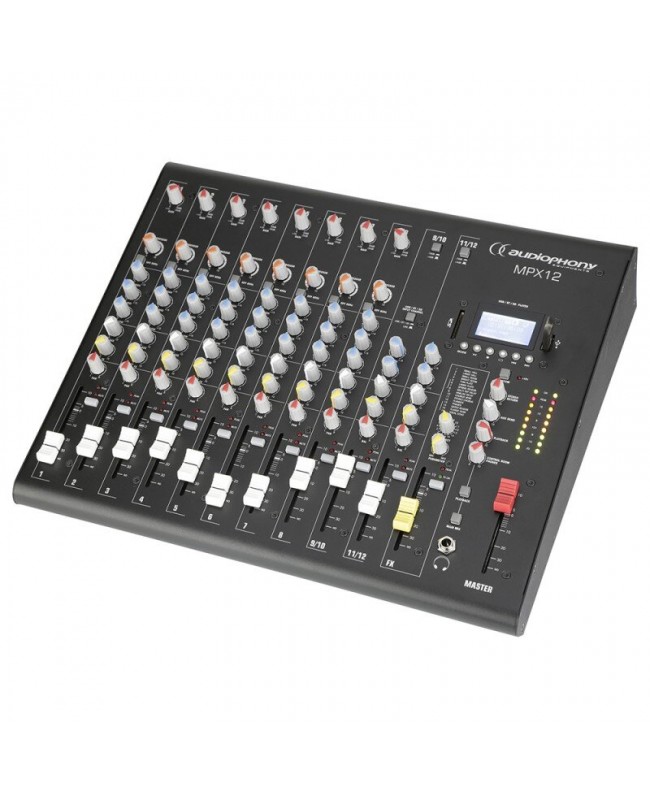

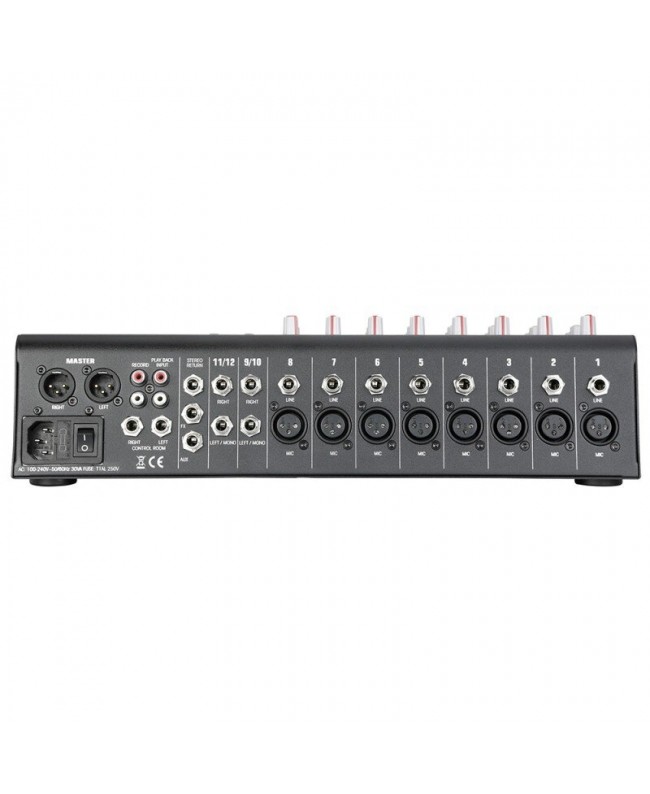

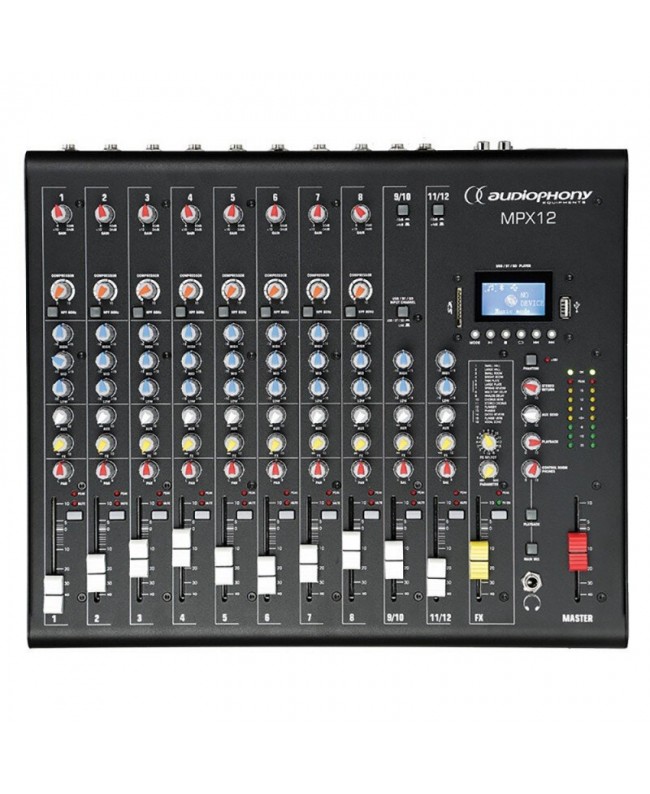

Audiophony MPX12



12-Input analog mixer with DSP for effects and compressor on microphone channels. The integrated USB / SD / BT interface with display increases its versatility, avoiding the need for additional peripherals.

Mono channels

  • Microphone inputs: balanced
  • Frequency response: 10 Hz - 30 kHz +-3 dB
  • THD (THD and N): 0.03% at +4 dBu, 22 Hz - 20 kHz A weighted
  • Compression: gain: 0 - 9 dB, threshold: 20 dB 5 dB
  • S/N ratio: 115 dB
  • Line inputs: balanced
  • Frequency response: 10 Hz - 30 kHz +-3 dB
  • THD (THD and N): 0.005% at +4 dBu, 22 Hz - 20 kHz A weighted
  • Maximum gain: 75 dBu MIC input Master output

Stereo channels

  • Line inputs: balanced/unbalanced
  • Frequency response: 10 Hz - 55 kHz +- 3 dB
  • THD (THD and N): 0.005% at +4 dBu, 22 Hz - 20 kHz A weighted

Impedances

  • Microphone inputs: 1.4 kohm
  • Line inputs: 10 kohms
  • Other inputs: 10 kohms or more
  • Recording input: 1 kohm
  • Other outputs: 120 ohms

Mono channels EQ

  • High: +- 15 dB at 12 kHz
  • Mid: +- 15dB at 2.5 kHz
  • Low: +- 15dB at 45 Hz

Stereo channels EQ

  • High: +- 15 dB at 12 kHz
  • Low: +- 15dB at 60 kHz

General

  • Multi-effect: 24-bit analog-to-digital converter, 16 programs
  • Power supply: 100 - 240 VAC 50/60 Hz
  • Dimensions: 330 x 392 x 92 mm
  • Weight: 5.2 kg

HIT-H10907
