LONE AUDIO LA MINIMIX
  • New

LONE AUDIO LA MINIMIX

€97.60
Tax included

DSP audio mixer console 4 inputs, 2 mono + 1 stereo

Out of Stock

Compare

wishlist

LONE AUDIO LA MINIMIX

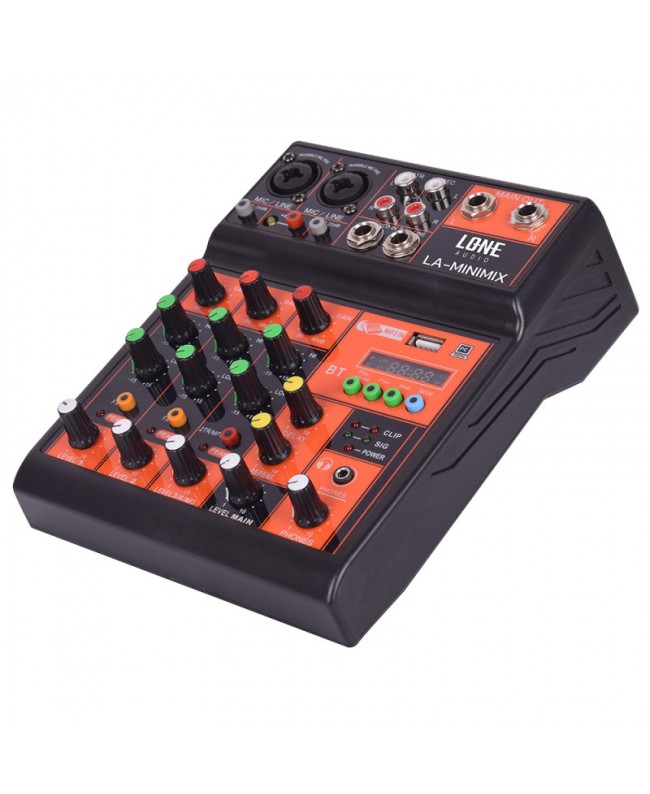

Compact 4-channel mixer with DSP and Bluetooth. It is equipped with 2 Combo balanced MIC/line inputs, 2 x 6.35 mm jack stereo inputs, an RCA stereo input/output for recording. 48 V Phantom power for MIC channels with ON/OFF switch.

It has a 2-band equalizer on each of the three channels (inputs 3 and 4 correspond to a single stereo channel), PEAK indicator on each MIC channel, an aux send for external effects and monitoring.

2 Input channels are routed to the main MIX output or control room/headphone output. The main output is on balanced jacks and there is a headphone output on 3,5 mm mini-jack.

Finally, there is a 24-bit DSP effects generator.

  • Power supply: 8 V external adapter

Mono inputs

  • MIC: 1.5 kohm symmetrical XLR
  • Gain adjustment: -10 dB to -60 dB

Stereo inputs

  • Line: XLR symmetrical / jack 6.35 mm
  • Gain adjustment: -10 dB to -50 dB
  • Max: +22 dB
  • Other inputs: 10 kohm
  • Other outputs: 120 ohm

Main mix section

  • Max: +22 dBu unbalanced
  • Aux: Off to + 10 dB
  • Hum and noise: -90 dB at 20 - 22,000 Hz
  • CH1 and main level: 0 dB
  • Crosstalk channel: -80 dB at 0 dB 20 to 22,000 Hz, main level: 0 dB
  • Frequency response: 10 - 55,000 Hz +-3 dB
  • Sensitivity range: +20 to -20 dB
  • S/N ratio: 90 dB
  • Total harmonic distortion: 0,01 %

Hall, vocal, hall...

  • A/D and D/A converters: 24 bit
  • Sampling frequency: 8, 16, 32, 11.023, 22.05, 44.1 and 48 kHz
  • Dimensions (W x D x H): 200 x 240 x 110 mm
  • Weight: 1 kg

RON-02704
