LONE AUDIO LA-MIX4M
  • New

LONE AUDIO LA-MIX4M

€146.00
Tax included

DSP audio mixer console 4 mono inputs

Out of Stock

Free shipping

Compare

wishlist

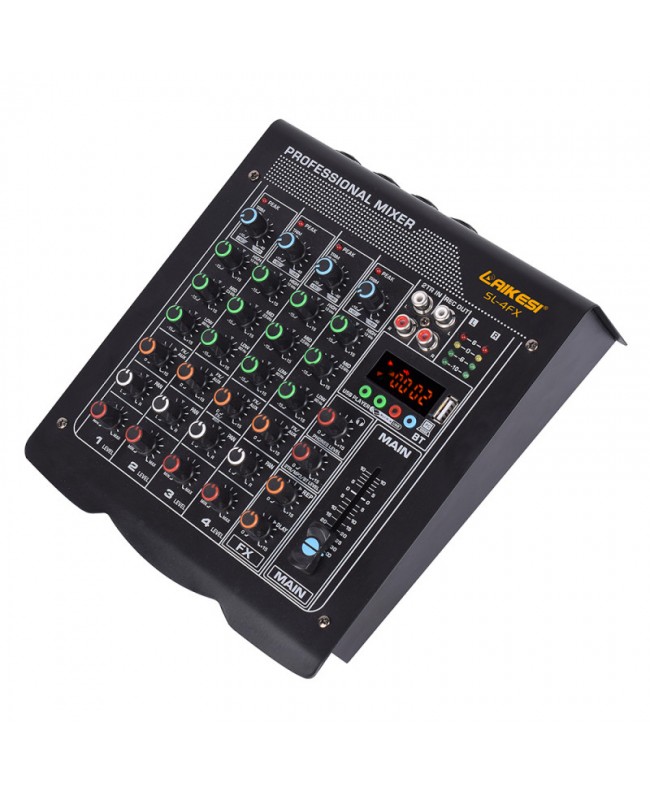

LONE AUDIO LA-MIX4M



4-Channel multimedia mixer with DSP and Bluetooth. It is equipped with 4 Combo balanced MIC/line inputs, 2 stereo jack RCA inputs and a stereo tape RCA output. 48 V Phantom Power for MIC channels with ON/OFF switch on the back.

It has a 3-band EQ on each channel, PEAK indicator on each channel, an aux send for external effects and monitoring.

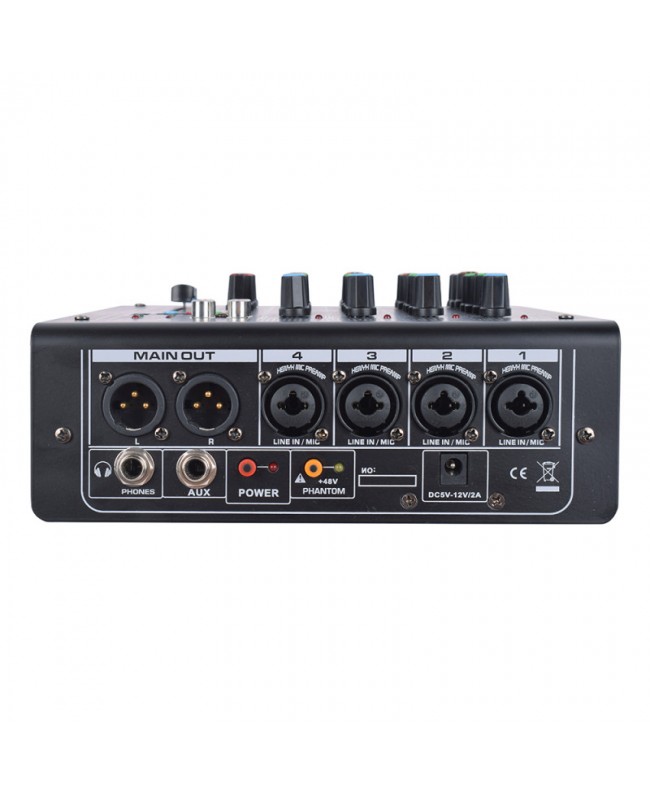

The main output is on balanced XLR and there is a headphone output on 6.35 mm jack.

Finally, there is a 24-bit DSP effect generator with 100 pre-stored effects.

  • Power supply: 8 V external adapter

Mono inputs

  • MIC: 1.5 kohm symmetrical XLR
  • Gain adjustment: -10 dB to -60 dB

Stereo inputs

  • LINE: XLR symmetrical / jack 6.35 mm
  • Gain adjustment: -10 dB to -50 dB
  • Max: +22 dB
  • Other inputs: 10 kohm
  • Other outputs: 120 ohm

Main mix section

  • Max: +22 dBu unbalanced
  • Aux: Off to + 10 dB
  • Hum and Noise: -90 dB at 20 to 22,000 Hz
  • CH1 and main level: 0 dB
  • Crosstalk channel: -80 dB at 0 dB 20 to 22,000 Hz, main level: 0 dB
  • Frequency response: 10 - 55,000 Hz +-3 dB
  • Sensitivity range: +20 to -20 dB
  • S/N ratio: 90 dB
  • Total harmonic distortion: 0,01 %

Hall, vocal, hall...

  • A/D and D/A converters: 24 bit
  • Sampling frequency: 8, 16, 32, 11.023, 22.05, 44.1 and 48 kHz
  • Dimensions (W x D x H): 240 x 300 x 150 mm
  • Weight: 3 kg
