LONE AUDIO LA-MIX4USB
  • New

LONE AUDIO LA-MIX4USB

€248.00
Tax included

4-Channel mixer with DSP and Bluetooth

Out of Stock

Free shipping

Compare

wishlist

LONE AUDIO LA-MIX4USB

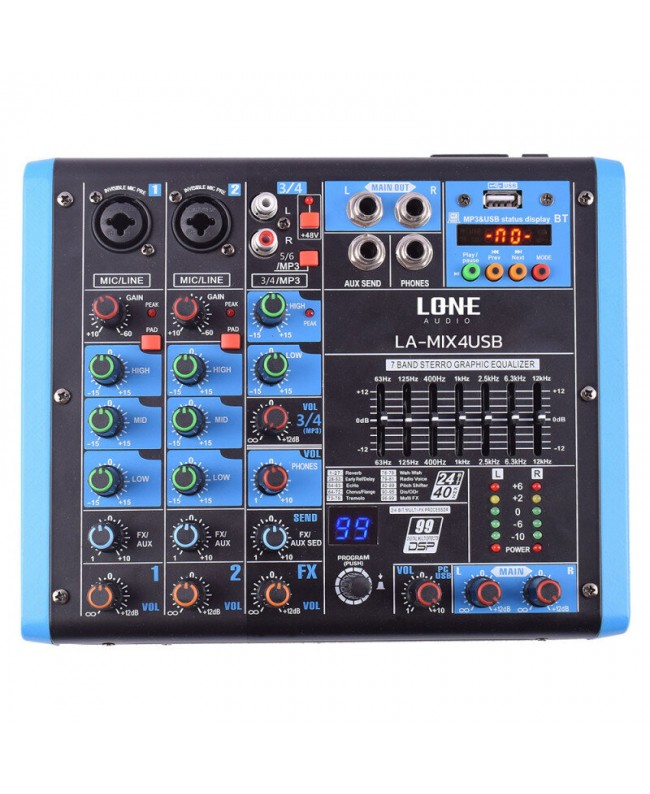

It is equipped with 2 balanced MIC/line Combo inputs, a stereo RCA line input, a USB input, a send to the auxiliaries on 6.35 mm jack. 48 V Phantom power for MIC channels with ON/OFF switch.

It features 3-band EQ on channels 1 and amp; 2 and 2-band EQ on channels 3/4, PEAK indicator on each channel, 7-band graphic EQ on main output, LED VU meter and USB interface for PC. The main output is on balanced 6.35 mm jacks and there is a headphone output on 6.35 mm jacks.

Finally, there is a 24-bit DSP effect generator with 100 pre-recorded effects.

  • 4-Channel mixer with DSP and Bluetooth.

Technical characteristics

  • Power supply: 8 V external adapter

Mono inputs

  • MIC: 1.5 kohm symmetrical XLR
  • Gain adjustment: -10 dB to -60 dB

Stereo inputs

  • LINE: XLR symmetrical / jack 6.35 mm
  • Gain adjustment: -10 dB to -50 dB
  • Max: +22 dB
  • Other inputs: 10 kohm
  • Other outputs: 120 ohm

Main mix section

  • Max: +22 dBu unbalanced
  • Aux: off to + 10 dB
  • Hum and noise: -90 dB at 20 Hz to 22 kHz
  • CH1 and main level: 0 dB
  • Crosstalk channel: -80 dB at 0 dB 20 Hz to 22 kHz, main level: 0 dB
  • Frequency response: 10 Hz - 55 kHz +-3 dB
  • Sensitivity range: +20 to -20 dB
  • S/N ratio: 90 dB
  • THD: 0.01 %

Hall, vocal, hall...

  • A/D and D/A converters: 24 bit
  • Sampling frequency: 8, 16, 32, 11.023, 22.05, 44.1 and 48 kHz
  • Dimensions (W x D x H): 27 x 24 x 11 cm
  • Weight: 1.5 kg
